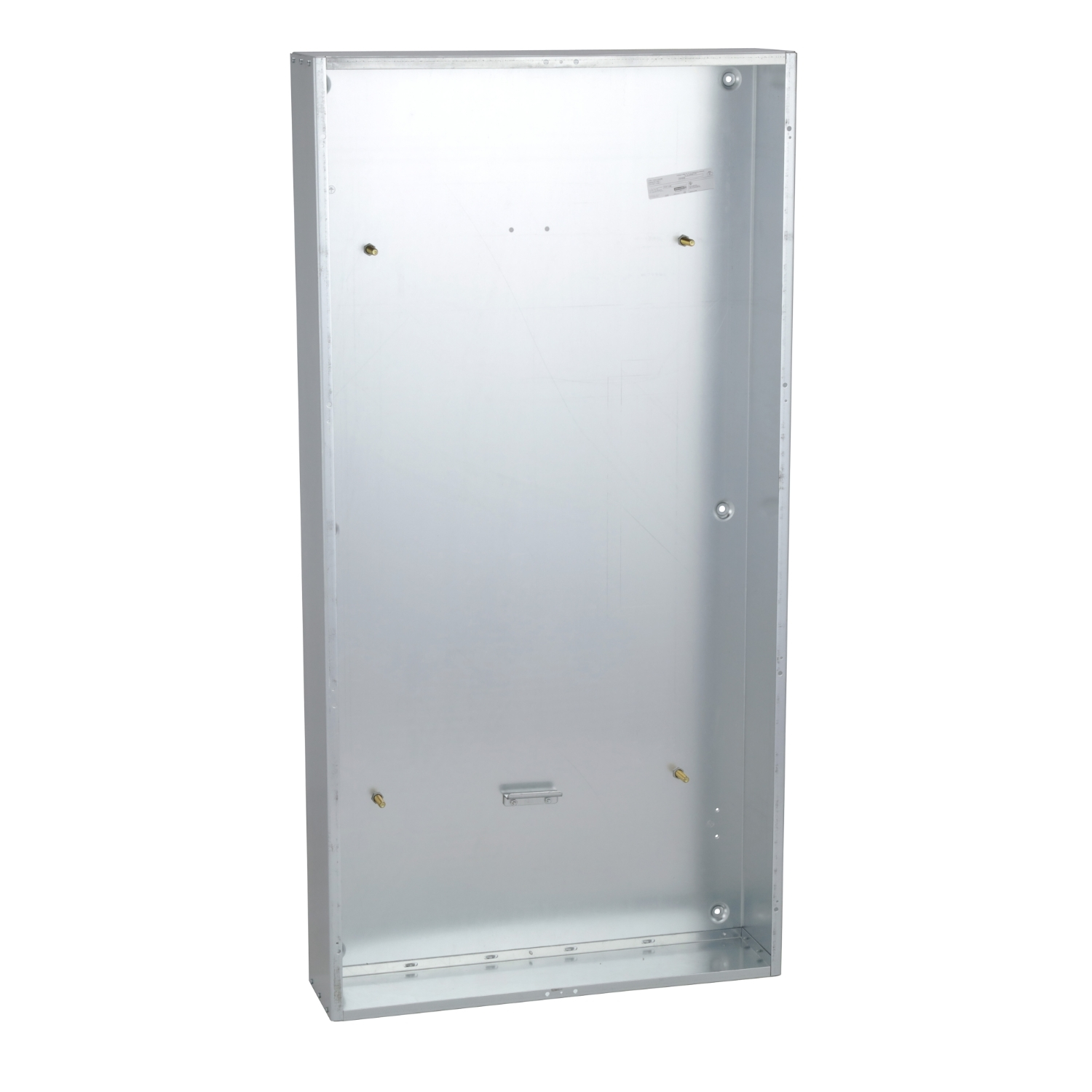

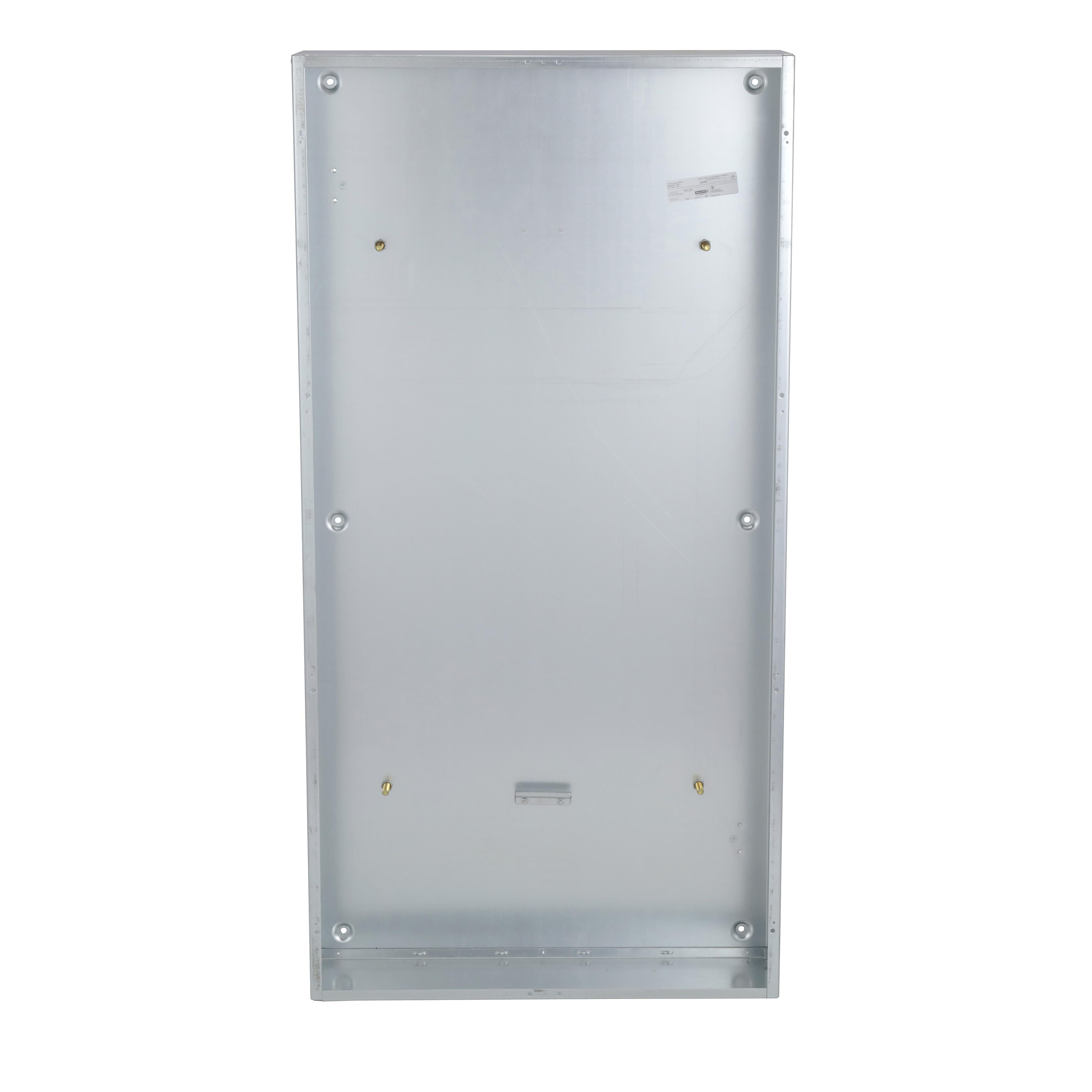

Square D HC3248DB9 Box, I-Line Panelboar 32 in W x 48 in H x 9.5 in D

Product Description

The Square D HC3248DB9 I-Line Power Distribution Panelboard is designed for service entrance equipment or downstream distribution panels. This versatile panelboard features Schneider Electric's breaker engagement system, allowing a 15 A branch circuit breaker next to a 1200 A circuit breaker. It adheres to UL standards for enclosures Type 3R, Type 5, and Type 12.

• Ideal for service entrance equipment or downstream distribution panels
• Most versatile on the market
• Unique breaker engagement system

Product Highlights

The HC3248DB9 panelboard offers a unique breaker engagement system and adheres to UL standards, making it suitable for various power distribution needs.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HC3248DB9
• Country of Origin: USA

Technical Specifications

• Catalog Number: HC3248DB9
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Depth: 9-1/2 Inch
• Width: 32 in
• Height: 48 Inch
• Standard: CSA,UL
• Net Weight: 75 lb
• Mounting Type: Wall-Mounted
• Line Rated Current: 800 A
• Country of Origin: United States
• Made in USA: Yes
• Panelboard Type: Panelboard Box
• Range Of Product: I-Line
• Product Or Component Type: enclosure
• Device Application: panelboard
• Cover Type: lockable cover
• Mounting Mode: wall mount
• Nema Degree Of Protection: NEMA 1
• Series: HC
• Suitable For Use With: Panelboard
• Sub-Brand: Square D
• Type: I-Line
