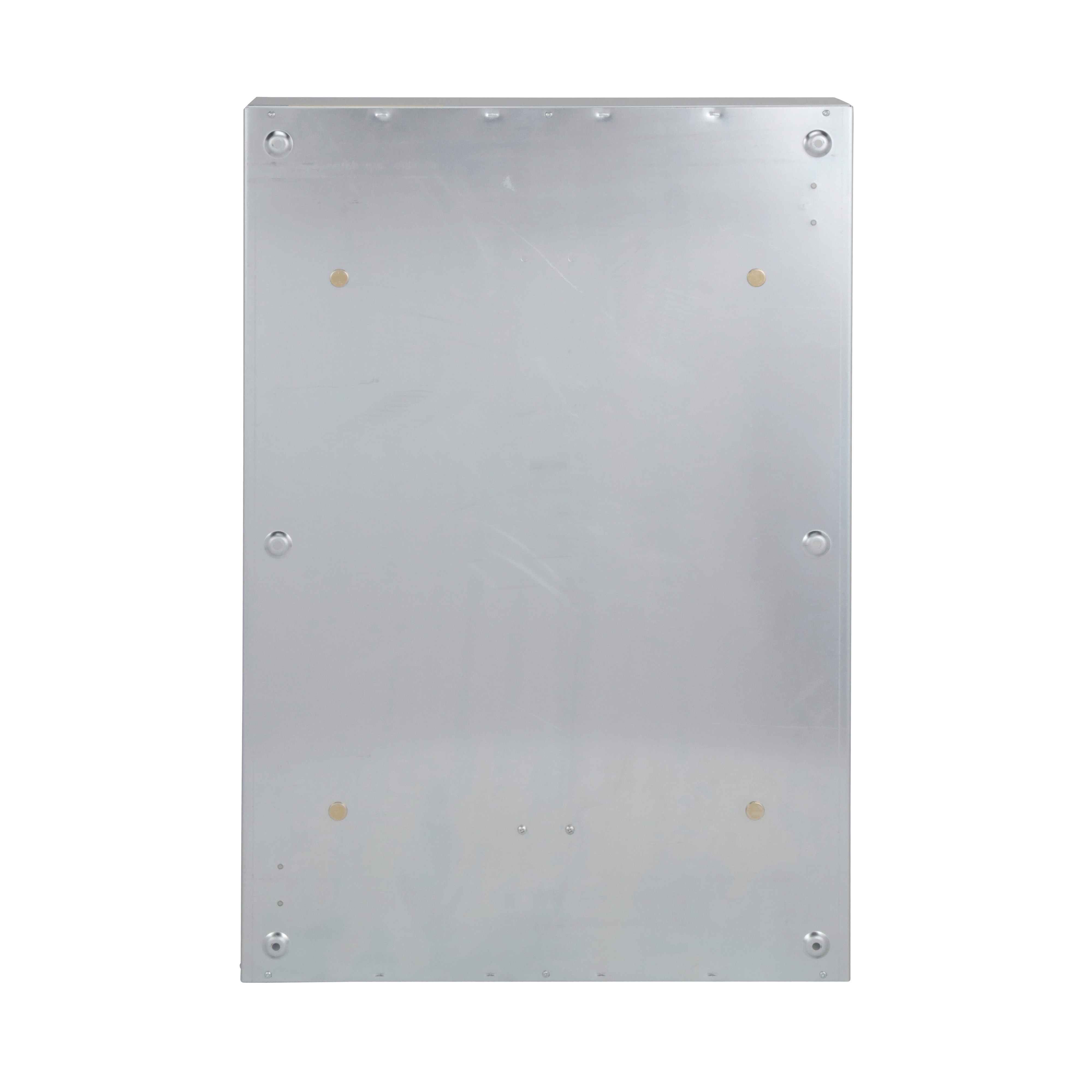

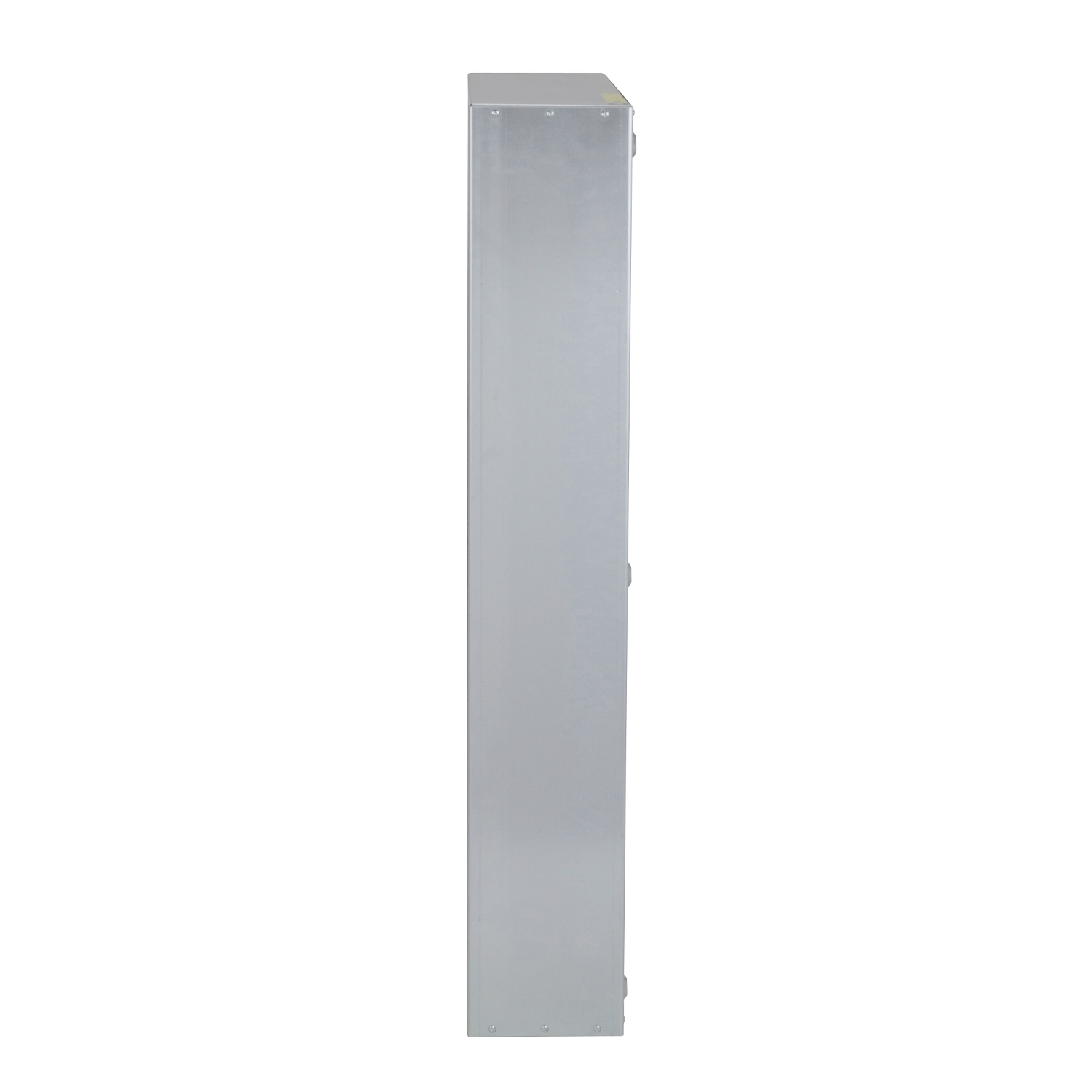

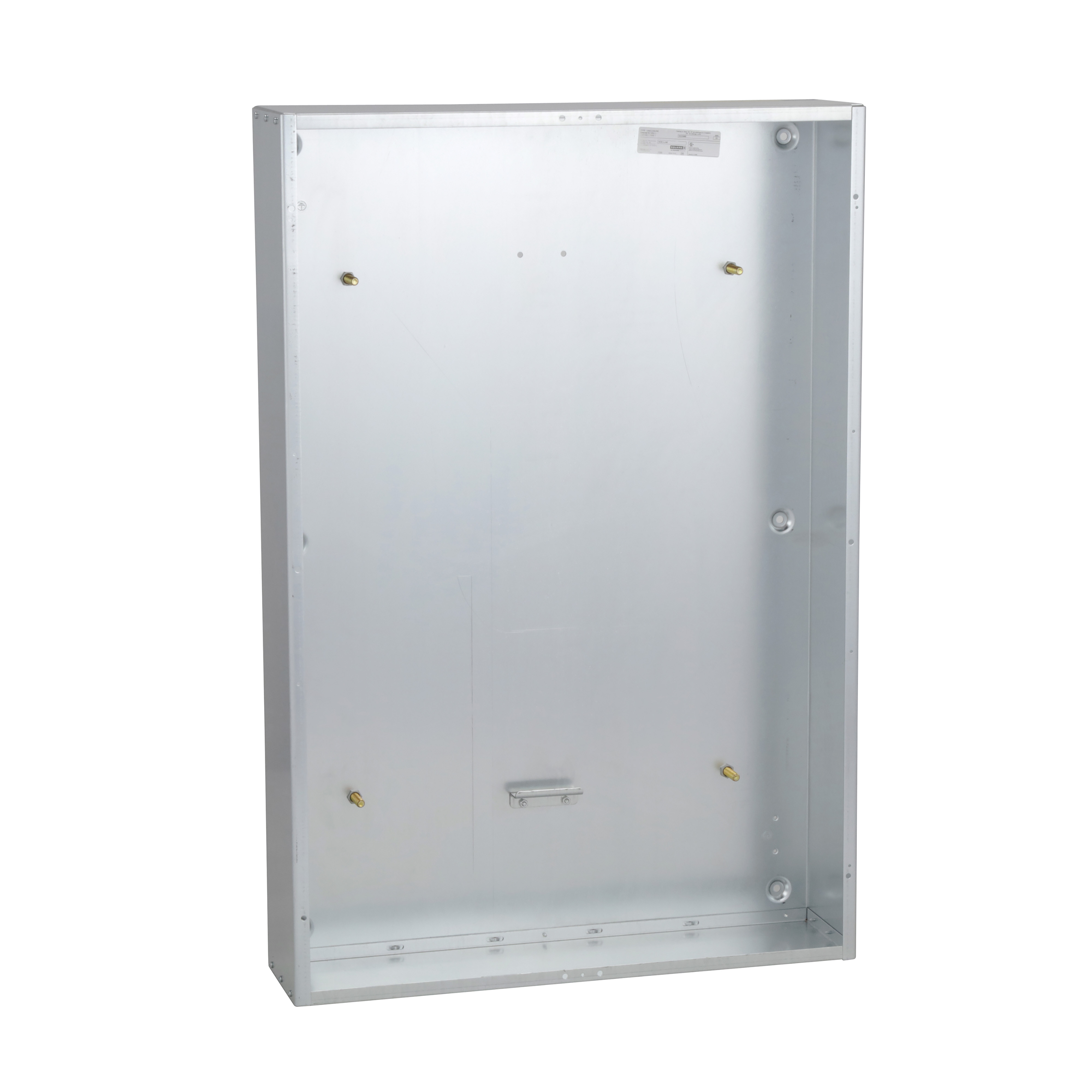

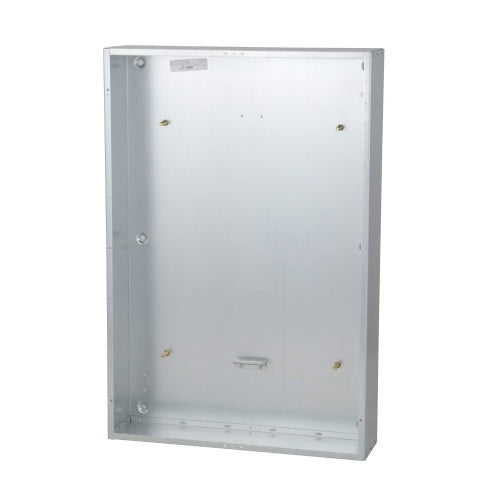

Product Description
The Square D HC3248B panelboard is designed for AC or DC systems. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection and current ratings of 600A, 400A & 800A. It is cULus certified and UL Listed under File E33139. This enclosure is designed for panelboard applications.
- NEMA 1 enclosure
- Rated for 600A, 400A & 800A
- cULus certified and UL Listed
Product Highlights
The Square D HC3248B panelboard enclosure is suitable for AC or DC systems and offers NEMA 1 protection.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: HC3248B
-
Country of Origin: United States
Technical Specifications
-
Type: PANELBOARD ENCLOSURE
-
Brand: Square D
-
Depth: 8-1/4 Inch
-
Width: 32 Inch
-
Height: 48 Inch
-
Amperage: 600 Amp
-
Material: Steel
-
Standard: CSA,UL
-
Enclosure: NEMA 1
-
Sub Brand: I-LINE
-
Applications: Panelboard
-
Country of Origin: USA
-
Line Rated Current: 225 A
-
Operating Temperature: PER UL
-
Catalog Number: HC3248B
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Panelboard Type: Panelboard Trim
-
UPC: 785901790365
-
GTIN: 00785901790365
-
Interior Type: 800 Ampere HCM Series Main Lug Interior
-
Enclosure Type: NEMA 1
-
range_of_product: I-Line
-
product_or_component_type: enclosure
-
device_application: panelboard
-
device_short_name: HCM
-
standards: UL || CSA
-
nema_degree_of_protection: NEMA 1
-
depth: 8.25 in
-
IGCC: 4370
-
Item: Panelboard Enclosure/Box Type 1 48H 32W
-
Features: Mercury Free
-
Application: panelboard
-
Product Type: Panelboard Enclosure/Box Type 1 48H 32W
-
Accessory Type: Panelboard Enclosure/Box Type 1 48H 32W
-
Country of Origin (subject to change): United States
-
Part Number #: HC3248B
-
Alternate Catalog Number: HC3248B
-
Amperage Rating: 600 A-400 A-800 A-225 A
-
NEMA Rating: NEMA 1
-
Mounting: WALL MOUNTING
-
Mounting Type: Wall
-
UNSPSC: 39121112
-
Voltage Rating: NONE
-
Sub Component: Box
-
Component: Accessories
-
Finish: Galvanized
