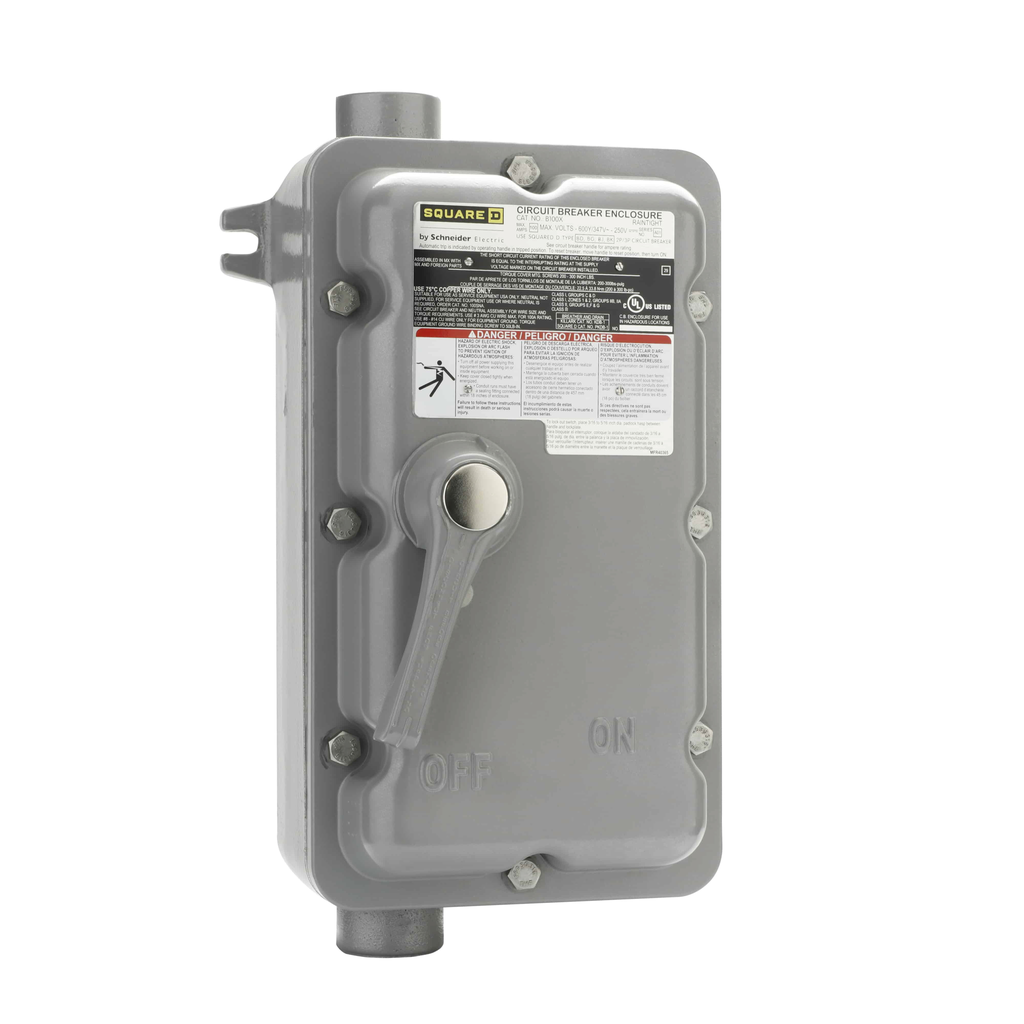

Square D H60XBDAA SQD H60XBDAA Circuit Breaker Enclosure 60 Amp NEMA 7/9

Product Description

The Square D H60XBDAA is a circuit breaker enclosure designed for PowerPacT B series options. This product is suitable for applications requiring reliable enclosure of circuit breakers ranging from fifteen amps to sixty amps. The enclosure is constructed from cast aluminum and features a NEMA rating of seven and nine, making it suitable for hazardous locations.

• Made from durable cast aluminum
• Holds circuit breakers rated fifteen to sixty amps
• NEMA seven and nine rating for hazardous environments

Product Highlights

This enclosure helps ensure the safe operation of circuit breakers in various environments and is ideal for both surface-mounted applications and for installations requiring auxiliary contacts.

Product Information

Standard Information

• Catalog Number: H60XBDAA
• Manufacturer: Schneider Electric

Technical Specifications

• Depth: 7.25 inches
• Width: 9.65 inches
• Height: 15.55 inches
• Mounting Type: Surface
• Certifications: UL
• Enclosure Material: Aluminum
• Country of Origin: Mexico
• UPC: 785901284949
