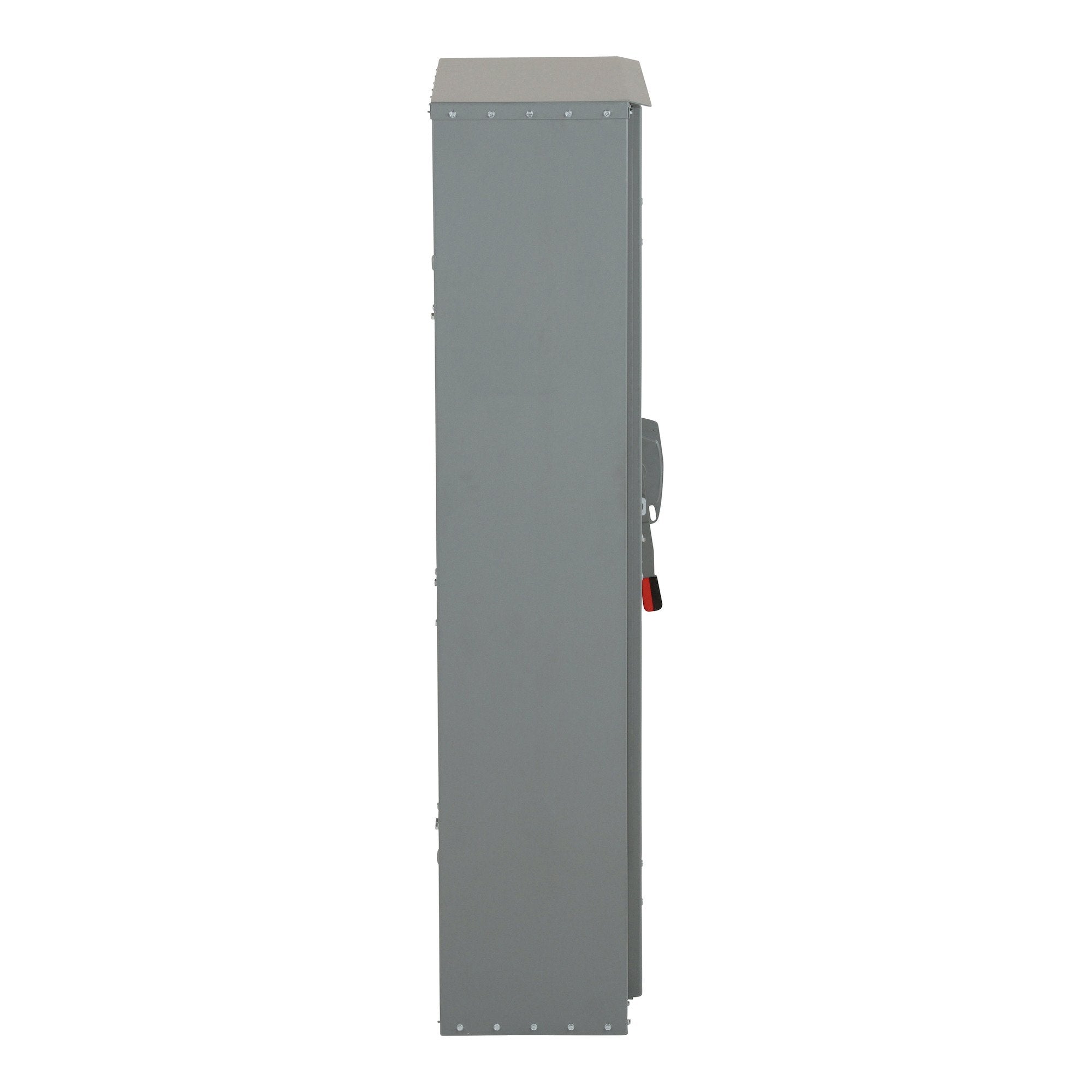

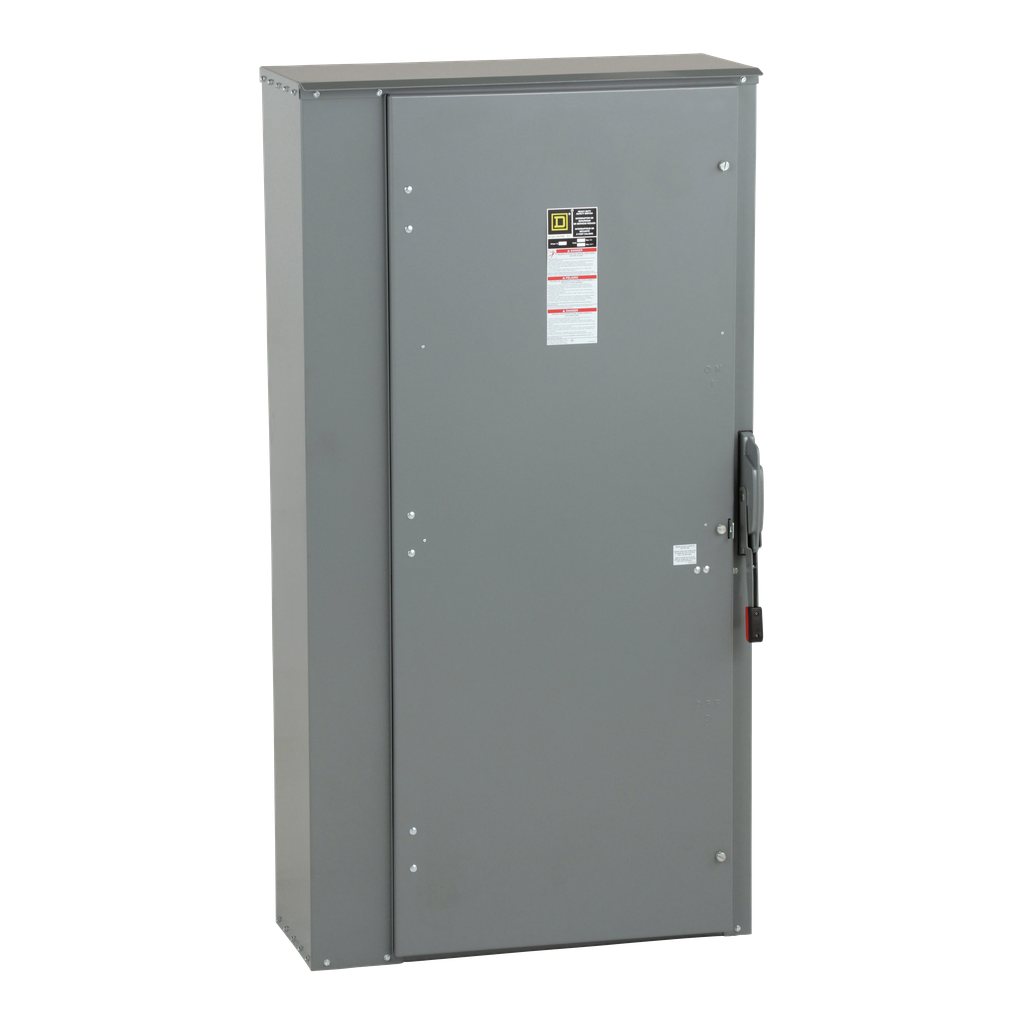

Square D H367R 600 VAC 800 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch

Product Description

Square D H367R is a safety switch designed for high performance and safety in industrial and commercial environments. This three-pole fusible heavy-duty safety switch operates at a voltage of 600 VAC and can handle a maximum current of 800 Amps. It is suitable for disconnecting power to equipment and is built to endure harsh conditions. The switch features a time-delay fuse compatibility rated for various horsepower levels, including thirty horsepower at 480 VAC and fifty horsepower at 600 VAC. It's ideal for applications requiring reliable electrical disconnects.

• Three-pole configuration for efficient power management
• Rated for 600 VAC and 800 Amps
• UL listed for safety and compliance

Product Highlights

With an enclosure rated NEMA 1, the H367R is made from durable steel and features a four-wire configuration, making it versatile for different installations. The device supports aluminum and copper wire sizes from twelve to two AWG.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: H367R
• Voltage: 600 VAC
• Current Rating: 800 Amps
• Number of Poles: 3
• Fuse Type: L
• Wire Size: 12 to 2 AWG Aluminum, 14 to 2 AWG Copper
• Enclosure Rating: NEMA 1
• Dimensions: Height 16.75 in, Width 10.5 in, Depth 6.81 in
• Weight: 373.02 lbs
• Country of Origin: Mexico
• Warranty: 18 months
• Certifications: UL Listed, File E2875
