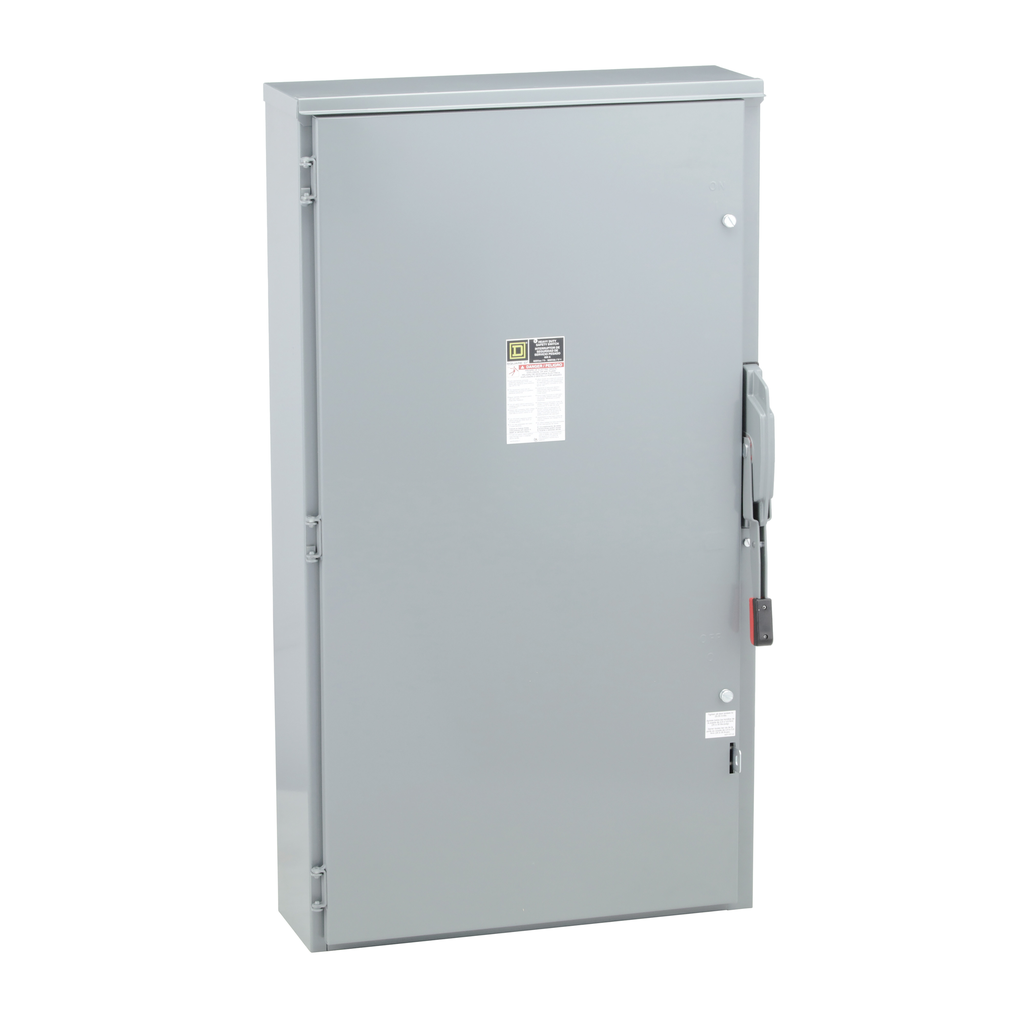

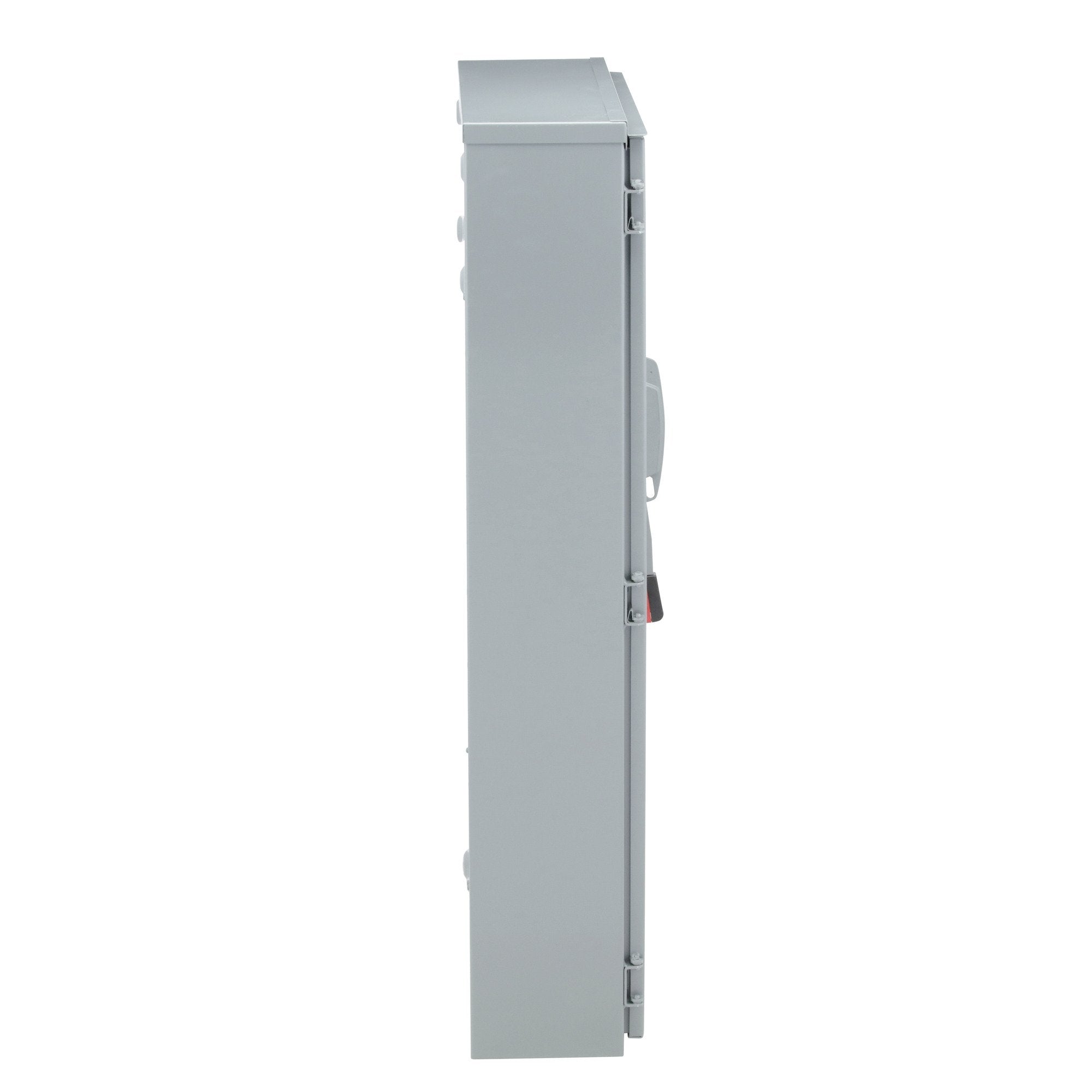

Square D H366NR Heavy Duty Safety Switch 600 VAC 600 Amp 3-Pole Fusible Switch

Product Description

The Square D H366NR is a heavy duty safety switch manufactured by Schneider Electric. It offers reliable operation under demanding conditions. This safety switch has a current rating of 600 amperes and voltage rating of 600 volts AC/DC, making it suitable for various industrial applications.

• UL Listed with a NEMA 3R rating for outdoor use
• Accepts H, J, K, L, R fuse types
• Short circuit current rating between 10kA to 200kA

Product Highlights

This single throw safety switch features a quick-make, quick-break operating mechanism, enhancing its reliability. It includes a dual cover interlock and a color-coded indicator handle for operational safety.

Product Information

Standard Information

• Catalog Number: H366NR
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Single throw safety switch, fusible disconnect
• Weight: 201.06 lb
• Height: 50.31 inches
• Width: 27.88 inches
• Depth: 10.13 inches
• Number of Poles: 3
• Amperage: 600 Amp
• Voltage: 600 Volt
• Enclosure Rating: NEMA 3R
• Warranty Length: 18 months
• Country of Origin: Mexico
