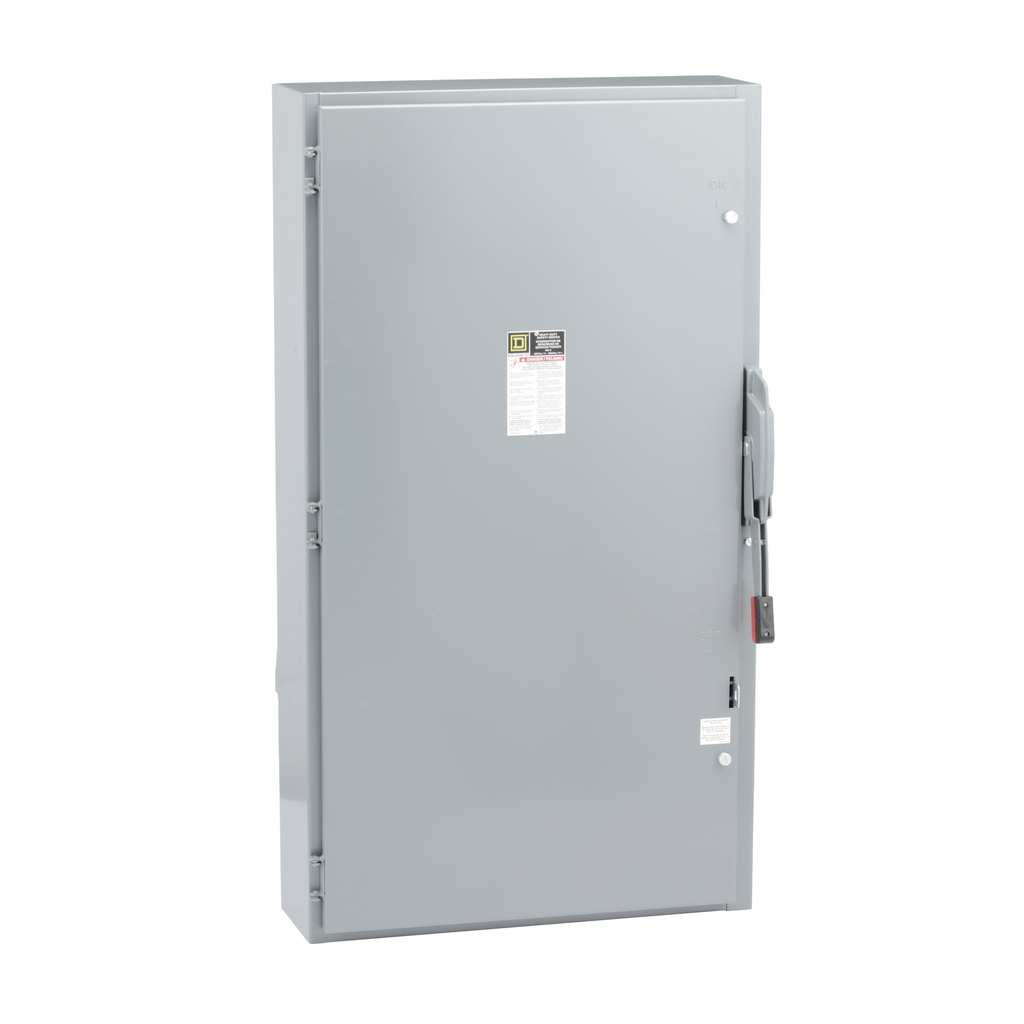

Square D H365N Safety Switch 400 Amp 600 VAC NEMA 1

Product Description

The Square D brand H365N is a safety switch designed for high-performance applications. It offers a 400 Amp rating and operates at a voltage of 600 VAC. This safety switch is part of the Fusible Heavy Duty Safety Switch line and is engineered to withstand tough conditions. It ensures protection and reliability for various electrical applications.

• Rated for 400 Amps and 600 Volts.
• UL listed with a NEMA 1 enclosure rating.
• Surface-mounted and accepts H, J, K, L, R fuse types.

Product Highlights

This safety switch features a quick-make and quick-break mechanism, providing efficient operation. It includes a dual cover interlock and is built to meet or exceed NEMA and UL standards.

Product Information

Standard Information

• Catalog Number: H365N
• Brand: Square D

Technical Specifications

• Manufacturer: Schneider Electric
• Material: Steel
• Height: 50.25 inches
• Width: 27.63 inches
• Depth: 10.13 inches
• Weight: 177.91 lb
• Short Circuit Current Rating: 10 kA to 200 kA
• Warranty Length: 18 months
• Country of Origin: United States
