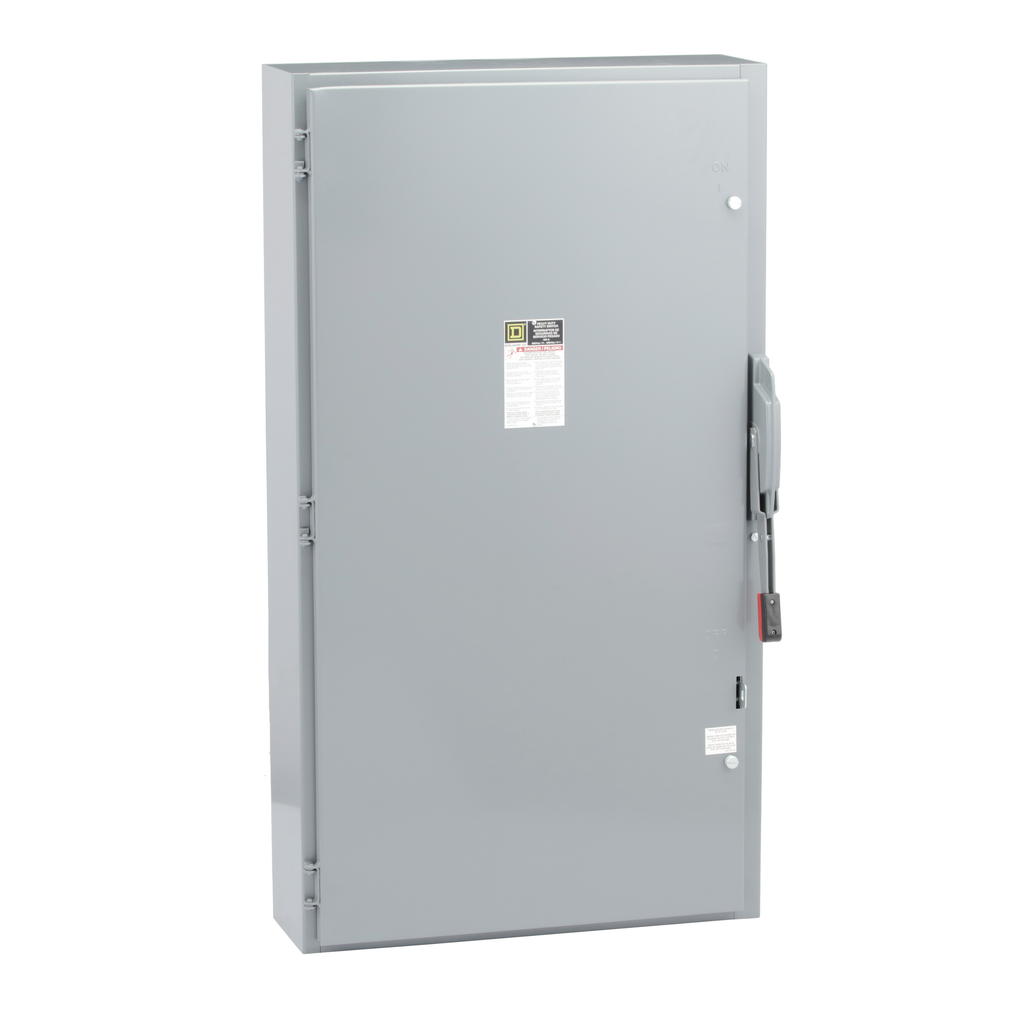

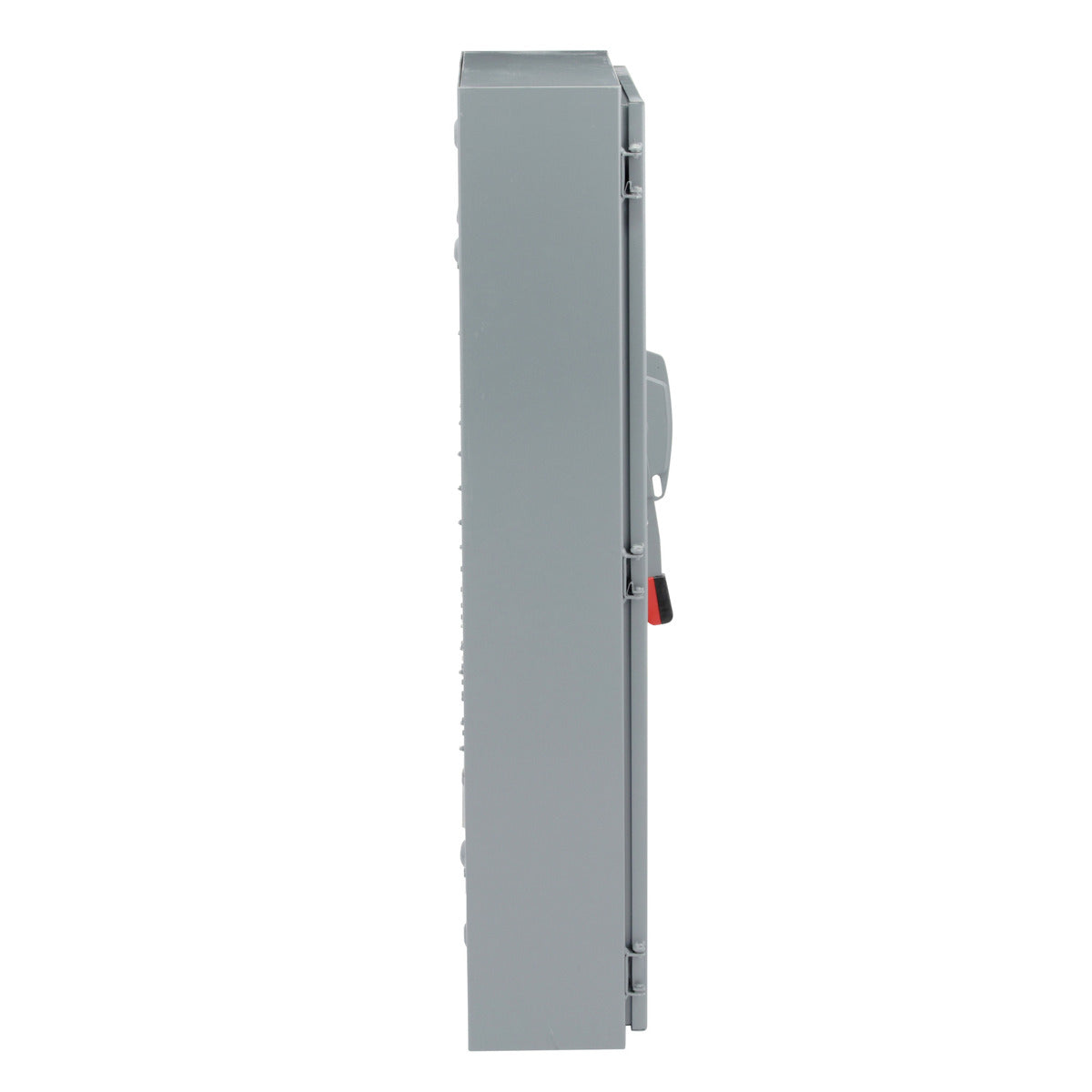

Square D H365 Safety Switch 400 Amp 600 Vac NEMA 1

Product Description

The Square D brand H365 Safety Switch provides a reliable solution for safe electrical disconnection. This model supports a rated current of 400 amperes and operates at a voltage of 600 volts AC. Designed with a three-pole structure, it is UL listed and conforms to NEMA 1 standards. The enclosure is constructed from steel, ensuring durability and strength in demanding conditions.

• Rated current of 400 Amps
• Three-pole construction
• Surface mounted design

Product Highlights

This safety switch is ideal for commercial and industrial applications where reliable electrical disconnection is required. Its robust design ensures long-lasting performance even in challenging environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H365
• Voltage Rating: 600 Volts AC
• Current Rating: 400 Amps
• Number of Poles: 3
• Fuse Type: H, J, K, L, R
• Weight: 171.96 lb
• Dimensions: 10.13 inches (Depth) x 27.63 inches (Width) x 50.25 inches (Height)
• Short Circuit Current Rating: 10 kA to 200 kA
• Mounting Type: Surface Mounted
