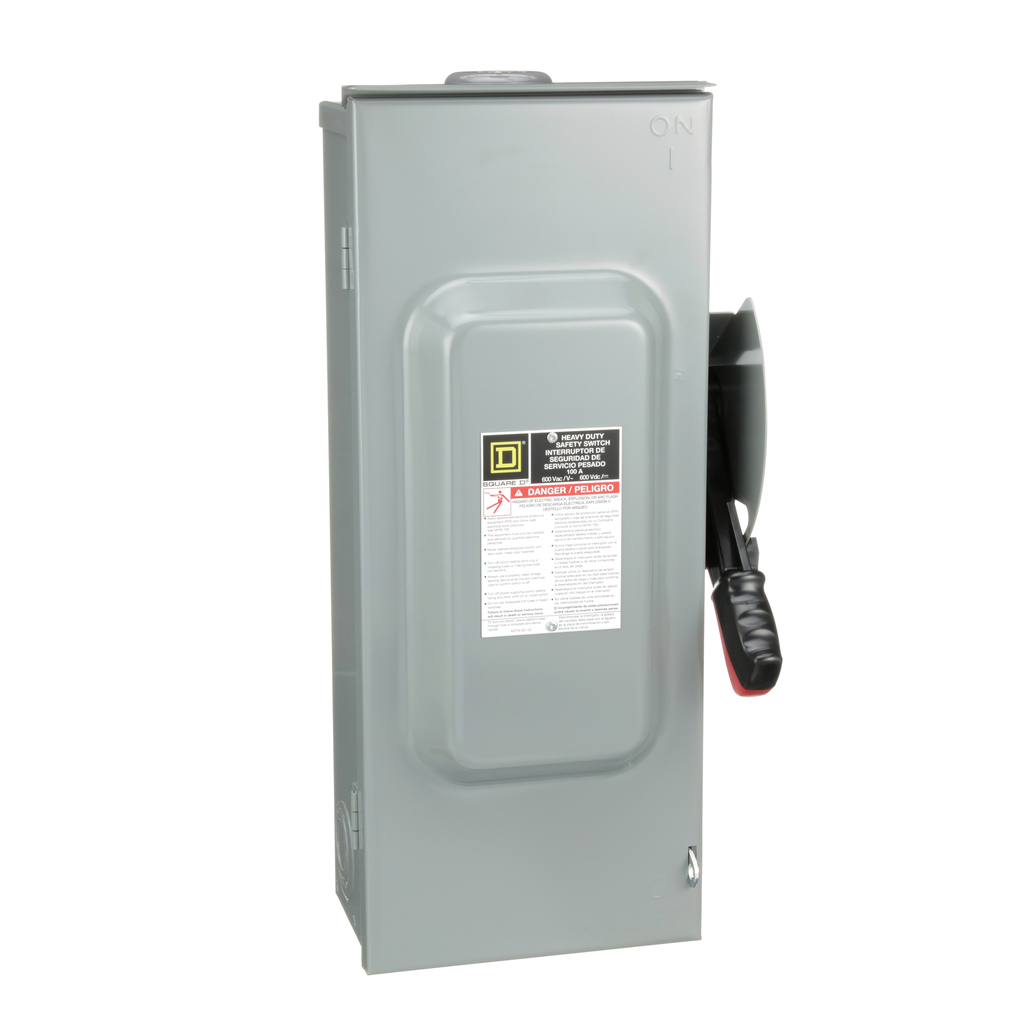

Square D H363RB Heavy Duty Safety Switch 100 Amp 600VAC 3-Pole

Product Description

The Square D H363RB from Schneider Electric is a heavy-duty safety switch designed for high-performance in demanding environments. This switch is rated for 100 Amps at 600 Volts and features a robust 3-pole design suitable for various applications. It meets UL standards and carries a NEMA 3R enclosure rating, making it ideal for both indoor and outdoor placements. The enclosure is made of galvannealed steel and is surface mounted.

• Rated for 100 Amp, 600 Volt operation
• UL Listed and NEMA 3R rated
• Compatible with H, J, K, L, R fuse types

Product Highlights

This switch incorporates a quick-make, quick-break mechanism for efficient operation and a dual cover interlock for added safety. It has a short circuit current rating between 10kA and 200kA.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Country of Origin: USA

Technical Specifications

• Catalog Number: H363RB
• Voltage: 600 Volt
• Current Rating: 100 Amp
• Number of Poles: 3 Pole
• Enclosure Material: Steel
• Weight: 19.84 lb
• Dimensions: 10.25 inches (Width) x 21.25 inches (Height) x 6.38 inches (Depth)
• Short Circuit Current Rating: 10kA to 200kA
• Warranty Length: 18 months
• Environmental Conditions: Rainproof and sleet/ice proof
