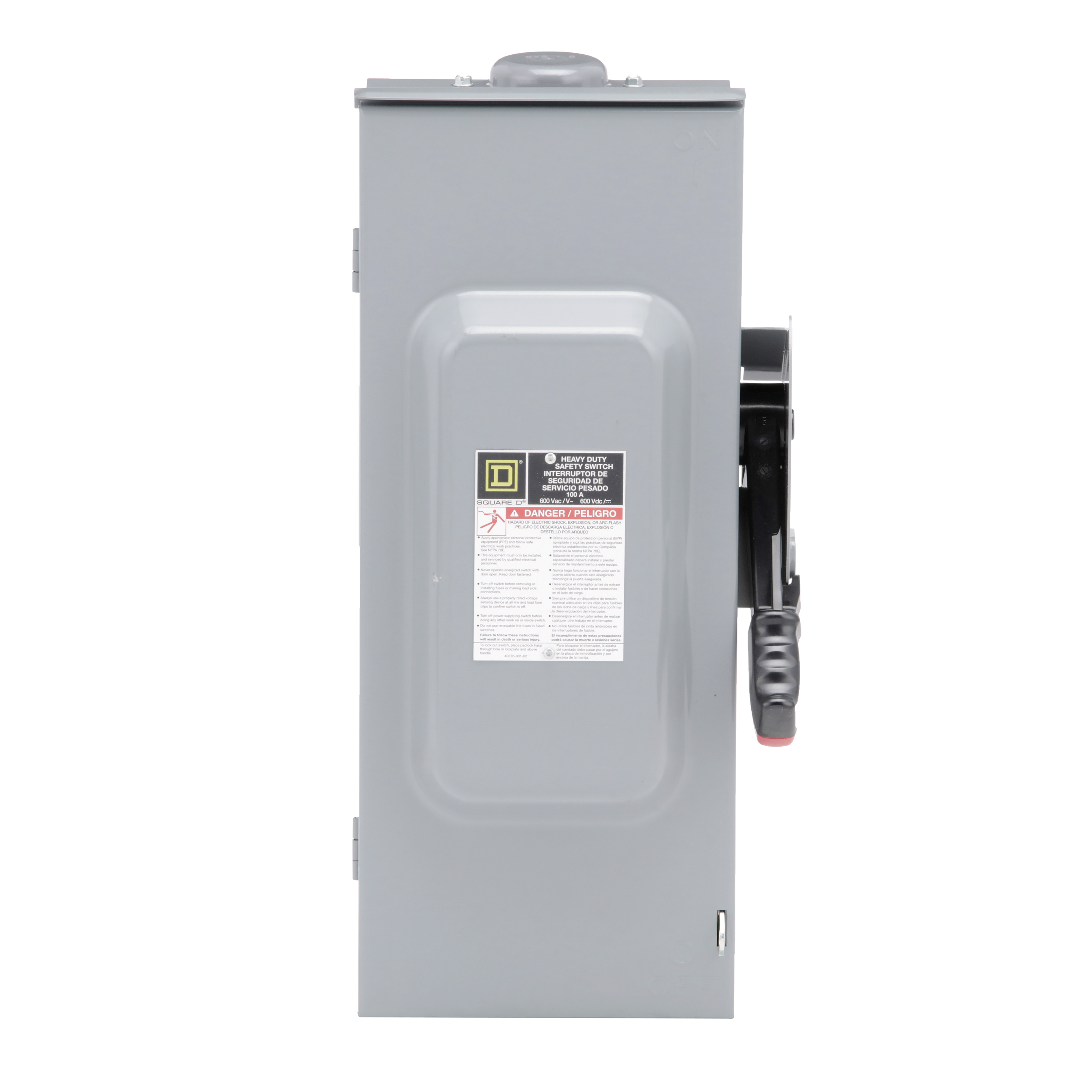

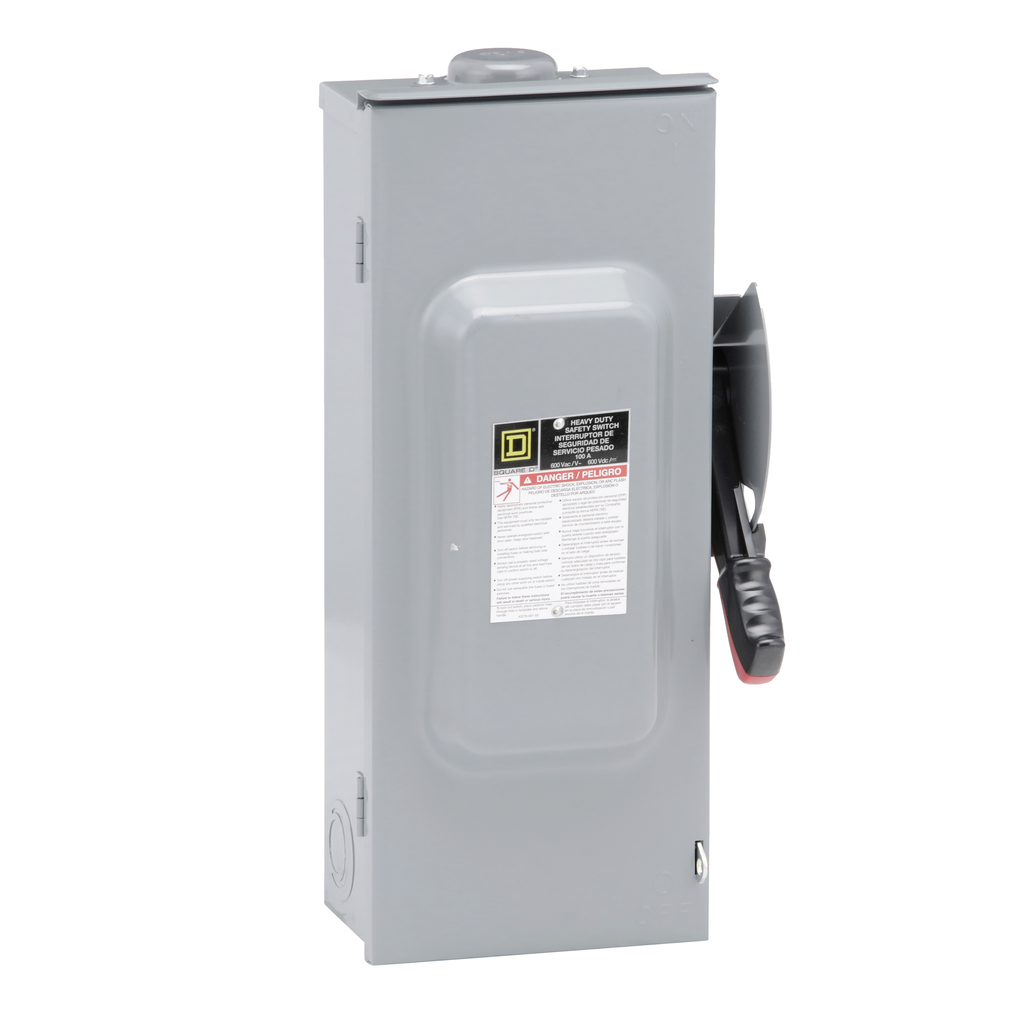

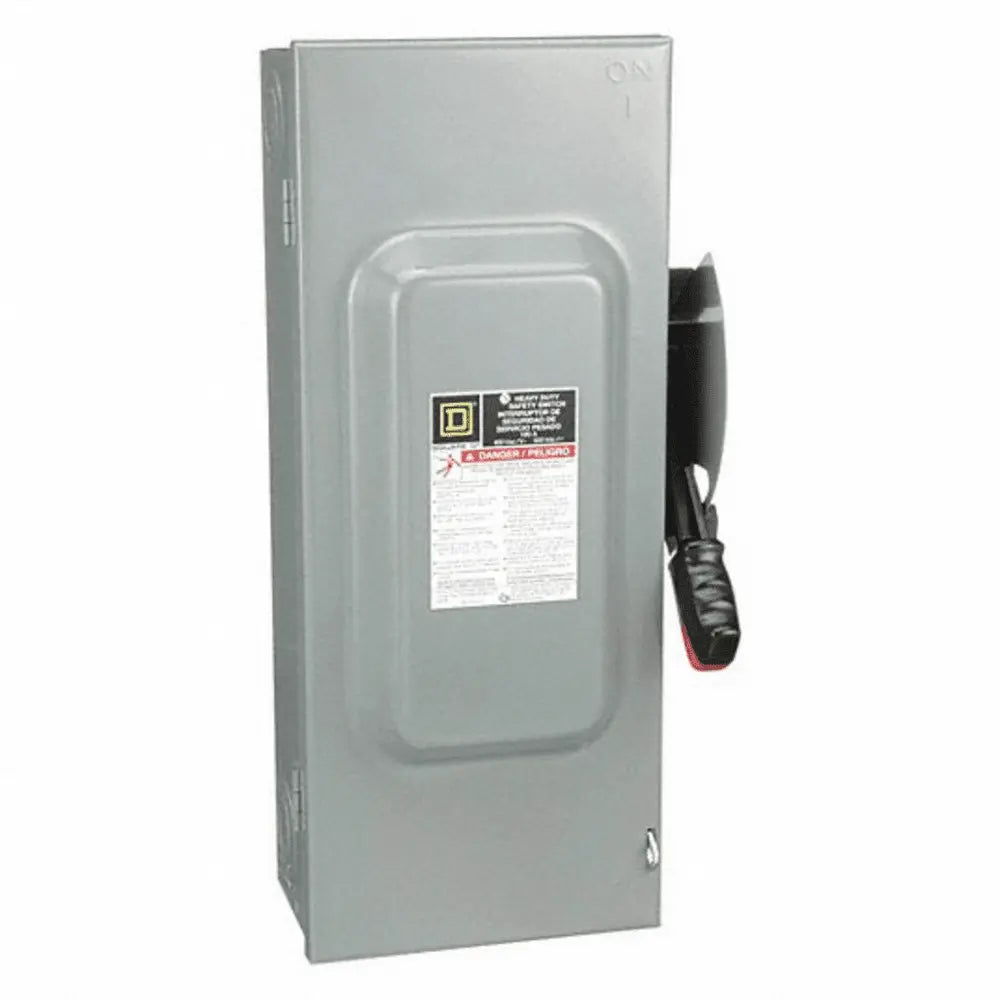

Square D H363NRB Heavy Duty Fusible Safety Switch 100A 4-Wire 3-Pole 600VAC/DC

Product Description

The Square D Heavy Duty Fusible Safety Switch, MPN H363NRB, is crafted for high-demand applications. This switch is built to handle a rated current of one hundred amperes, with a voltage rating of six hundred volts alternating current/direct current. Designed to meet NEMA three R standards, it provides protection against rain and ice. The unit features a robust steel enclosure with a factory-installed neutral, and it is surface mounted for ease of installation.

• 100A rated current for reliable operation
• Three-pole design with quick-make, quick-break mechanism
• Compatible with various fuse types including H, J, K, L, and R

Product Highlights

This fusible safety switch ensures efficient protection in both residential and industrial environments, making it a reliable choice for electricians and contractors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: H363NRB
• Type: Fusible
• Width: 10.25 inches
• Depth: 6.38 inches
• Height: 21.25 inches
• Weight: 19.84 pounds
• Amperage Rating: 100 Amperes
• Voltage Rating: 600 VAC, 600 VDC
• NEMA Rating: NEMA 3R
• Short Circuit Current Rating: 10 kA to 200 kA
• Connection: Mechanical
• Insulation: Non-Insulated
