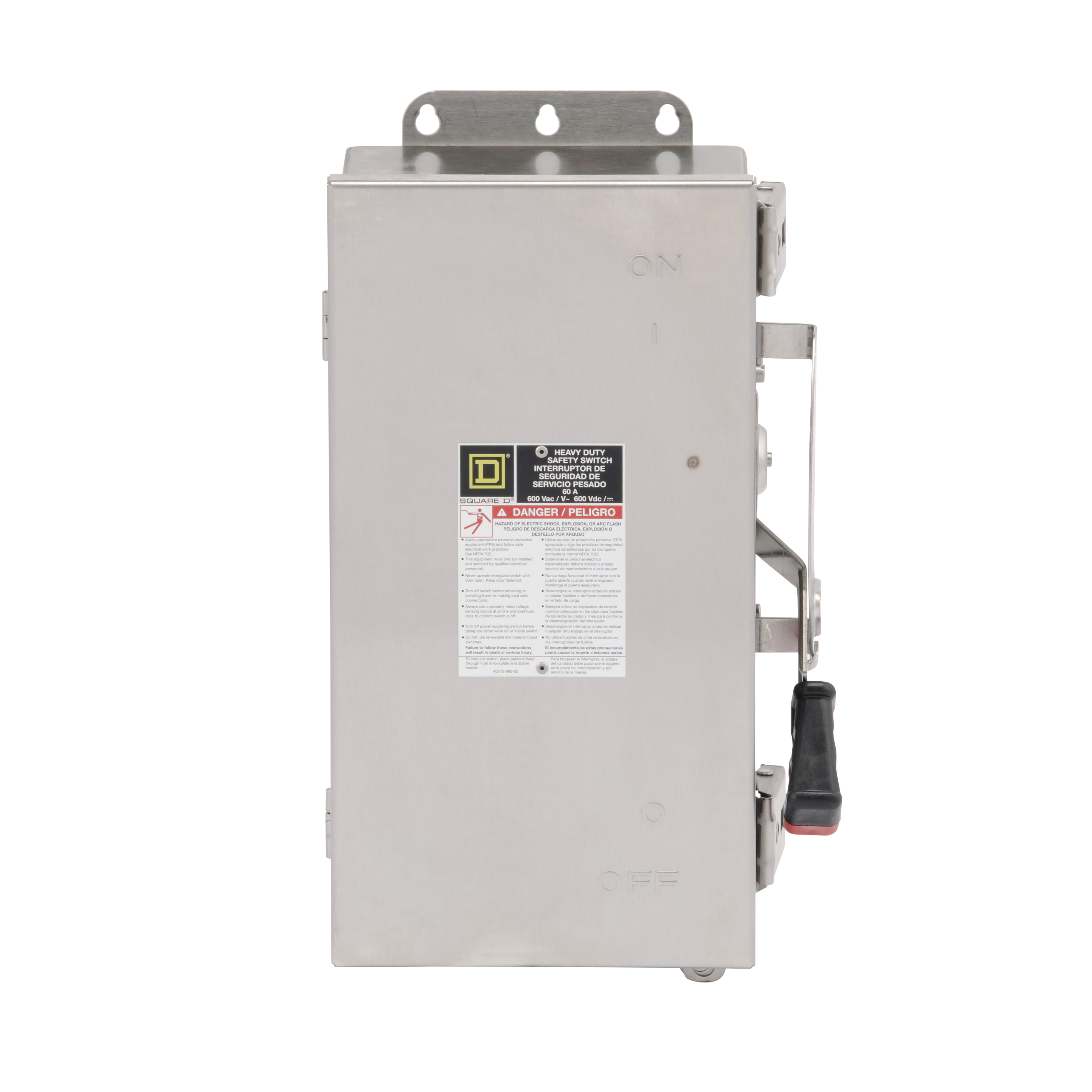

Square D H362DS Safety Switch 60A 600V 3-Pole Fusible

Product Description

The Square D H362DS is a 600 VAC 60 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch by Schneider Electric. This device is built for safety and reliability in various applications.

• Designed to operate under high mechanical endurance.
• UL listed with multiple NEMA ratings for superior protection.
• Accepts H, J, K, L, and R fuse types for flexibility.

Product Highlights

This heavy-duty safety switch features a quick-make, quick-break mechanism for effective operation. The stainless steel 304 enclosure provides high durability while withstanding demanding conditions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H362DS
• Rated Current: 60 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 3 Pole
• Enclosure Material: Stainless Steel
• Weight: 22.05 lb
• Dimensions: 10.81 x 16.87 x 6.97 inches
• Short Circuit Current Rating: 10 kA to 200 kA
• Enclosure Rating: NEMA 4, 4X, 5
• Fuse Types Accepted: H, J, K, L, R
• Mounting Type: Surface
• Warranty Length: 18 months
