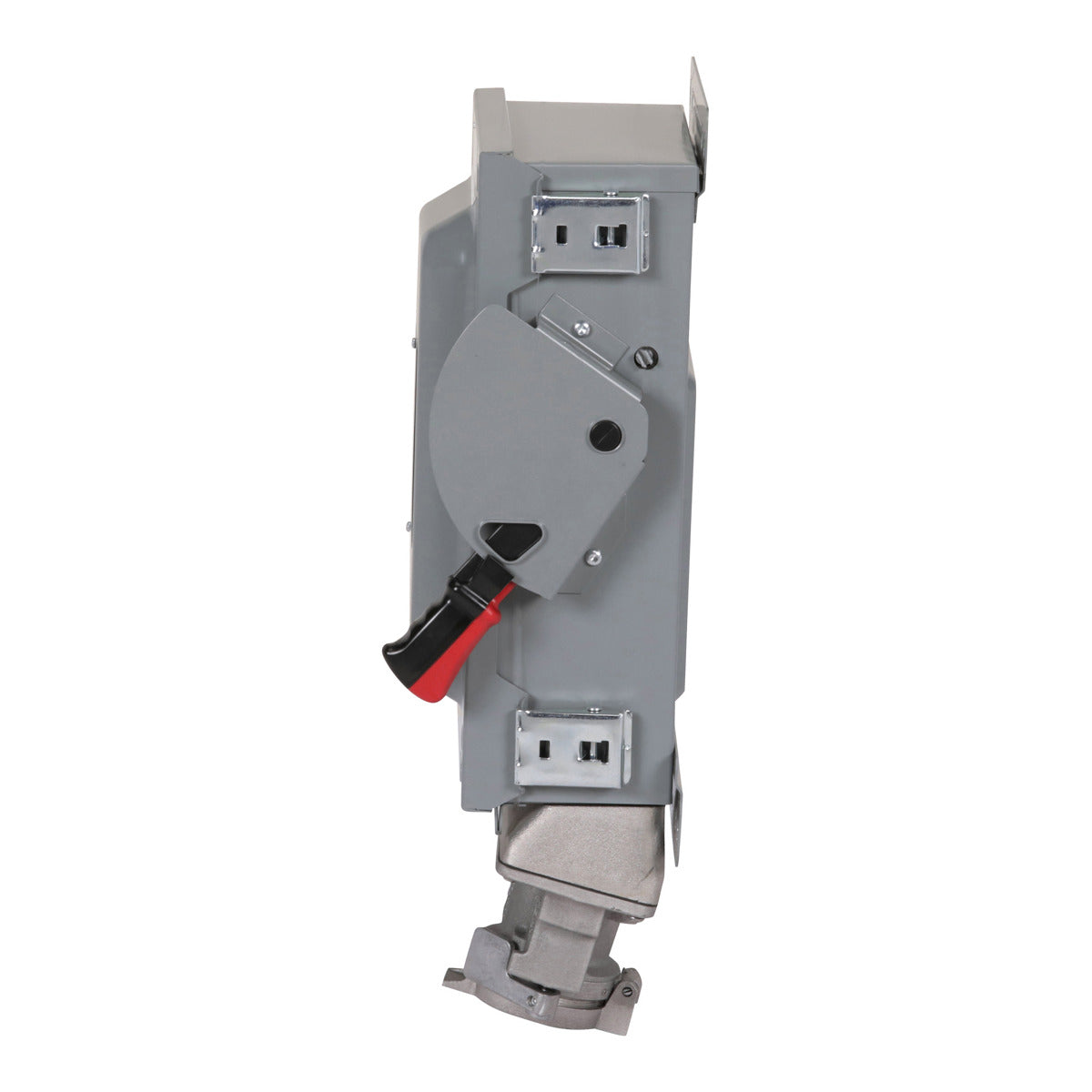

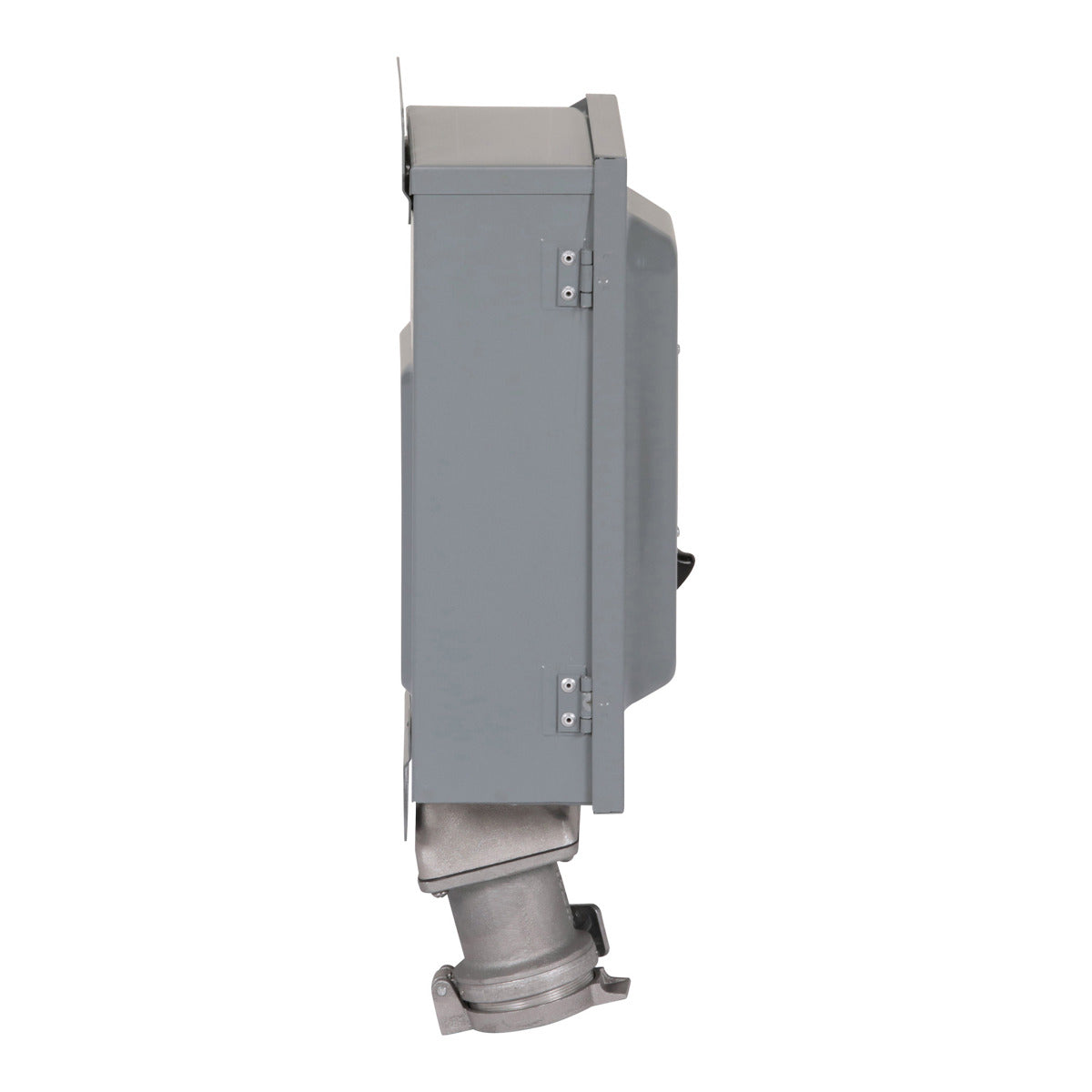

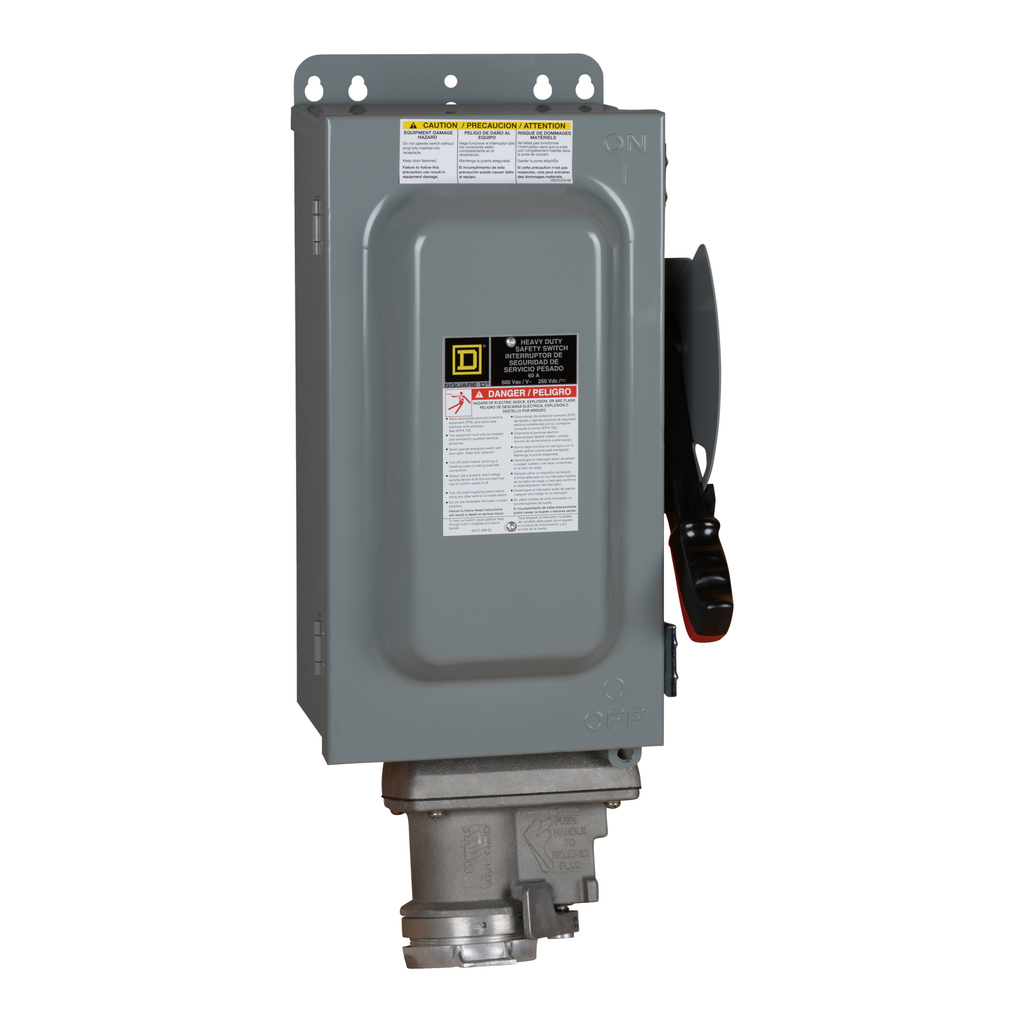

Square D H362AWC Safety Switch 600 VAC 60 Amp 3-Pole Fusible Heavy Duty Receptacle

Product Description

The Square D by Schneider Electric brand Heavy Duty Safety Switch, model H362AWC, is designed for reliable performance in demanding environments. This safety switch is suitable for commercial, institutional, industrial, and manufacturing applications. It features a minimal design life of three times the requirements set by NEMA standards. Key materials include high copper content to minimize temperature rise, enhancing service life.

• Rated for up to 60 Amps, capable of handling 30 HP and 50 HP motors.
• Includes a Crouse-Hinds Arktite plug for secure connections.
• Surface mounted, ensuring ease of installation and maintenance.

Product Highlights

This switch features NEMA 3R/12 protection, ensuring it is suitable for various environmental conditions. It is UL listed, confirming compliance with safety standards. The dimensions are 10.5 inches in height, 16.5 inches in width, and 7 inches in depth.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H362AWC
• Voltage: 600 VAC
• Current Rating: 60 Amps
• Number of Poles: 3
• Fuse Type: H Or K, J Or T, R
• Enclosure Rating: NEMA 3R, 12
• Short Circuit Current: 10 kA
• Weight: 26.46 lb
