Product Description

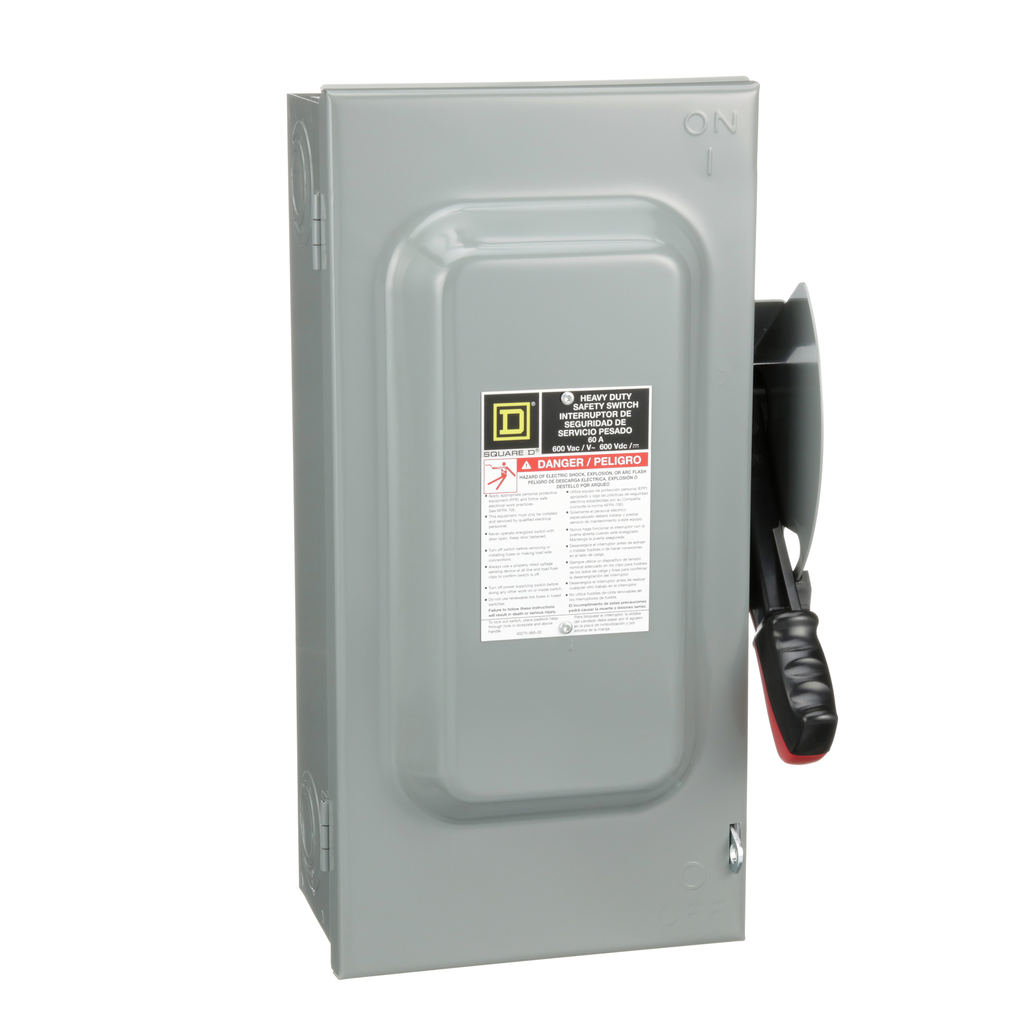

The Square D by Schneider Electric H362 safety switch is a dependable device designed for use in heavy-duty applications. This switch is rated for a maximum current of sixty Amps and operates at up to six hundred Volts AC/DC. Its three-pole configuration is ideal for three-phase power systems.
- UL listed with NEMA 1 enclosure rating
- Supports H, J, K, and R fuse types
- Features a quick-make, quick-break operating mechanism
Product Highlights
This safety switch features a robust construction with a steel enclosure and no neutral. It is surface-mounted, suitable for harsh environments, and designed for high mechanical endurance, exceeding industry standards.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Rated Current: 60 A
-
Voltage Rating: 600 V AC/DC
-
Number of Poles: 3
-
Enclosure Material: Steel
-
Short Circuit Current Rating: 10 kA H or K; 200 kA R or J
-
Duty Rating: Heavy Duty
-
Mounting Type: Surface
-
Warranty Length: 18 months
-
Country of Origin: USA
-
GTIN: 785901482147
