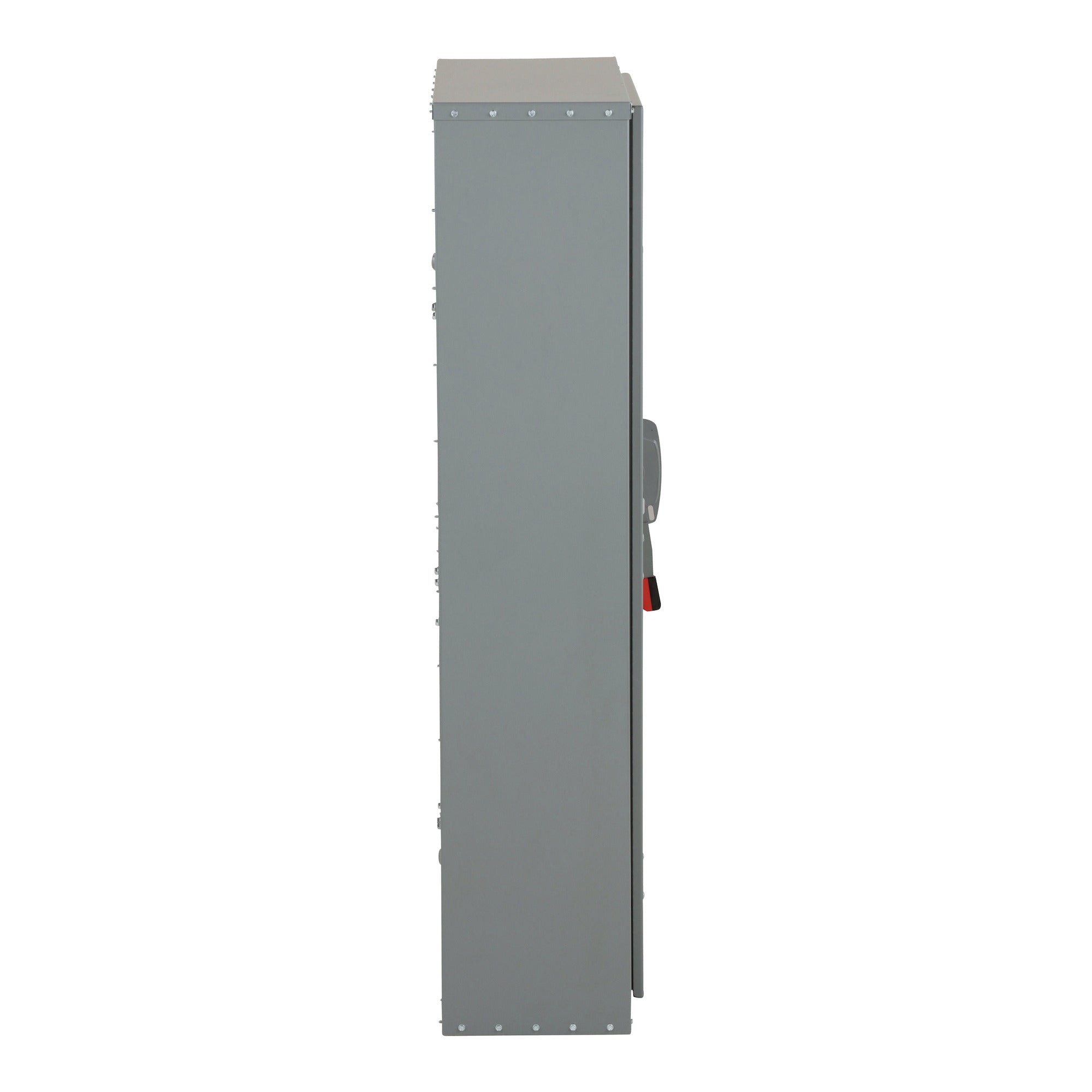

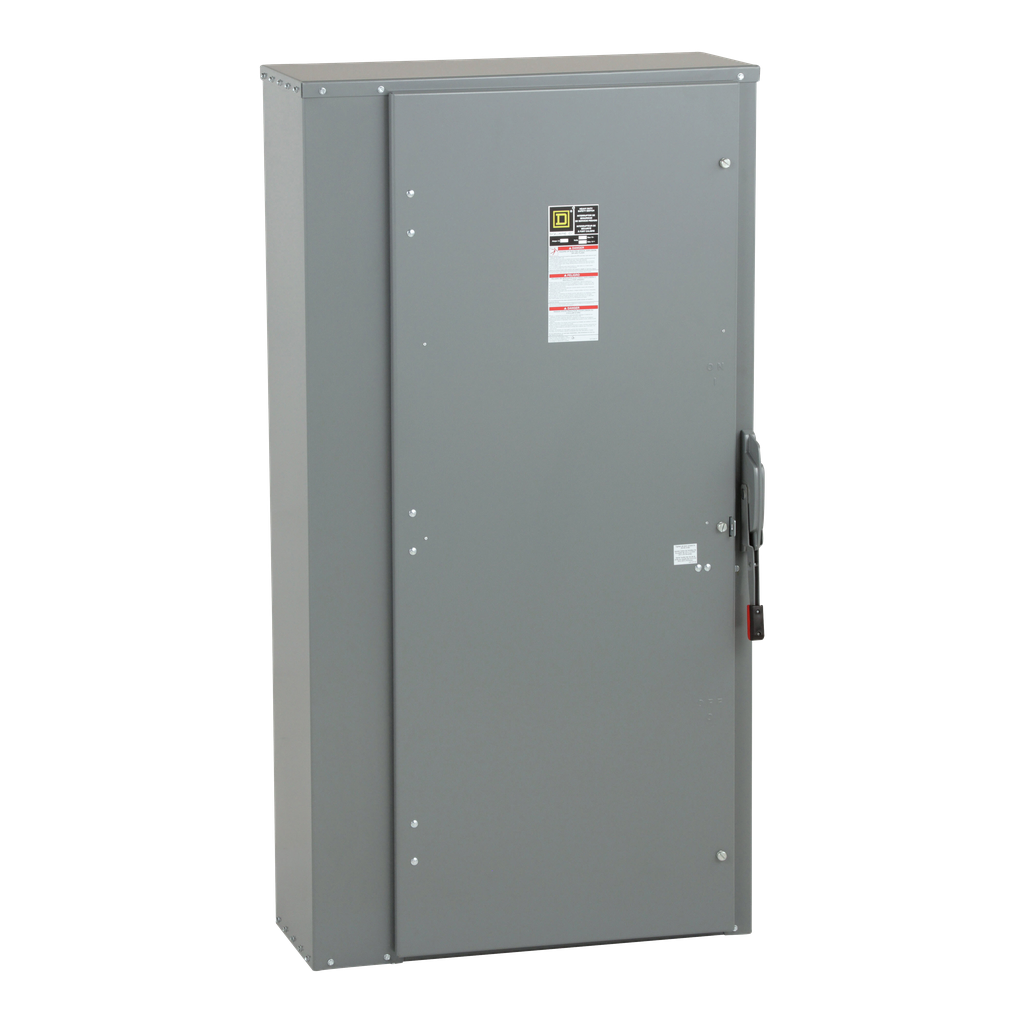

Square D H327N 240 VAC 800 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch

Product Description

The Square D H327N is a three-pole fusible heavy-duty safety switch designed for reliable electrical protection in demanding environments. This switch operates at 240 volts alternating current and handles a current of 800 amps. It is built to provide superior durability compared to standard switches, exceeding NEMA standards by three times. The switch is ideal for various commercial and industrial applications.

• Rated for 800 amps at 240 VAC and 250 VDC.
• Configured for use with time-delay fuses for machinery up to 125 HP at 240 VAC and 50 HP at 250 VDC.
• Compatible with wire sizes from AWG 6 up to 250 kcmil in aluminum and copper.

Product Highlights

This heavy-duty safety switch ensures safety in electrical disconnect operations, making it suitable for commercial and industrial settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H327N
• Voltage: 240 Volts
• Current Rating: 800 Amps
• Fuse Type: Class L
• Number of Poles: 3
• Enclosure Rating: NEMA 3R
• Dimensions: Height 50.31 inches, Width 27.88 inches, Depth 10.13 inches
• Weight: 373.02 pounds
