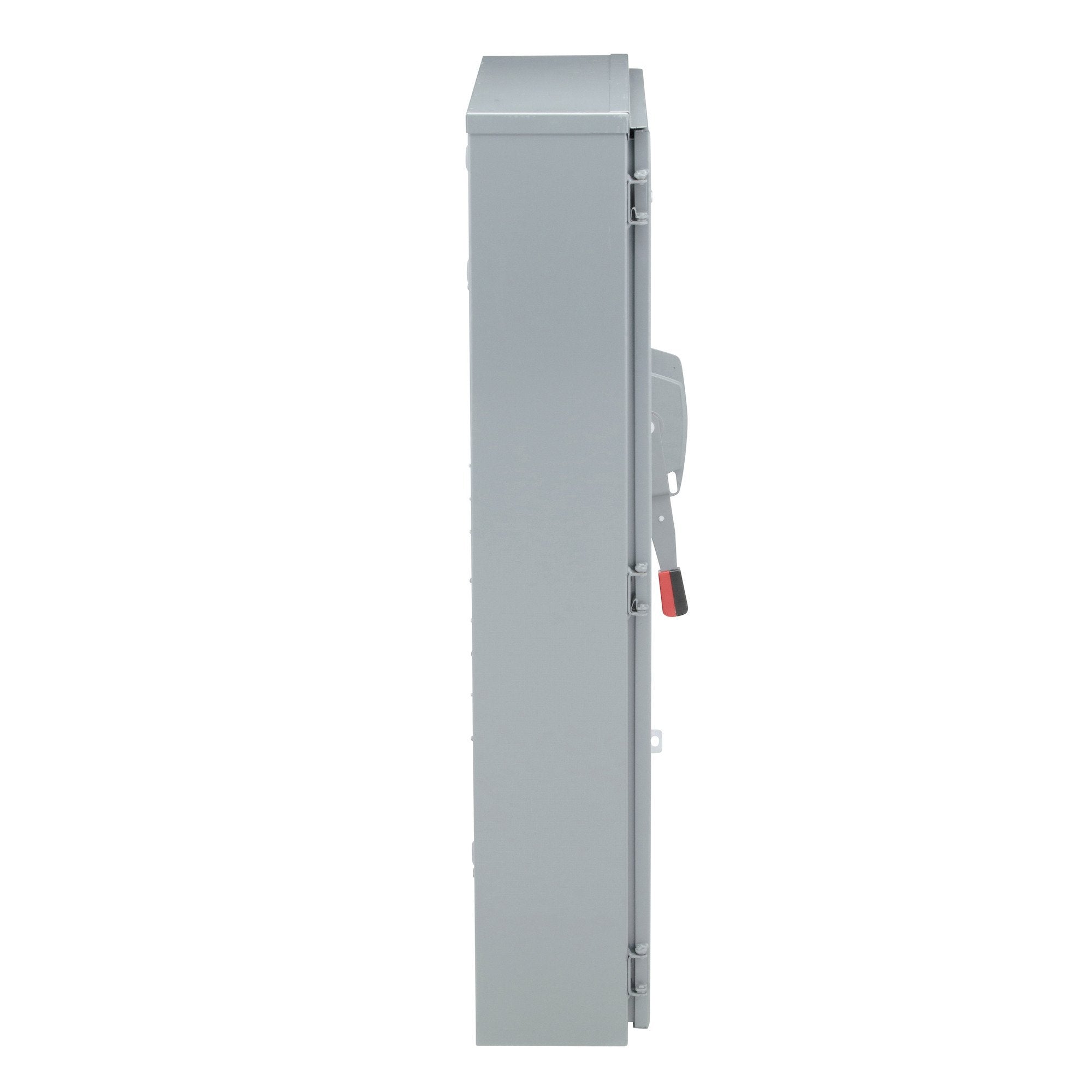

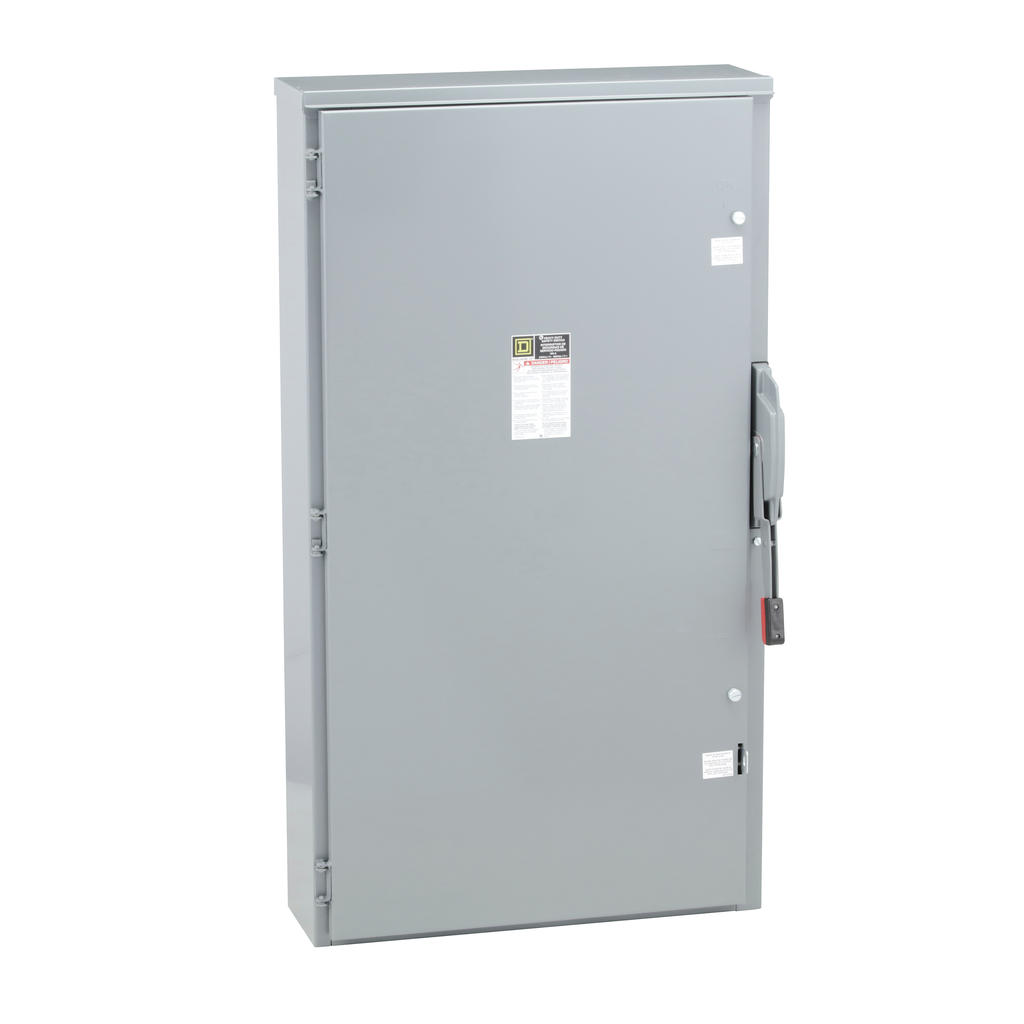

Square D H325NR Safety Switch 400 Amp 240 Volt 3-Pole Fusible Heavy Duty

Product Description

The Square D by Schneider Electric H325NR is a heavy-duty safety switch designed for reliable performance in demanding conditions. This fusible disconnect switch is rated for 400 amps and can handle operational voltages of 240 VAC and 250 VDC. The enclosure features a NEMA 3R rating and is constructed from galvannealed steel, providing durability in various environments.

• Quick-make, quick-break operating mechanism
• Dual cover interlock for enhanced safety
• Accepts H, J, K, L, R fuse types

Product Highlights

This single throw safety switch includes a factory-installed neutral and is suitable for surface mounting. It complies with UL standards, ensuring safety and reliability for both indoor and outdoor installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H325NR
• Rated Current: 400 A
• Voltage Rating: 240 VAC / 250 VDC
• Number of Poles: 3
• Enclosure Rating: NEMA 3R
• Short Circuit Current Rating: 10 kA (H or K) / 200 kA (R or J)
• Mounting Type: Surface
• Material: Steel
• Weight: 192.02 lb
• Height: 50.31 in
• Width: 27.88 in
• Depth: 10.13 in
• Countries of Origin: Mexico
• Warranty: 18 months
