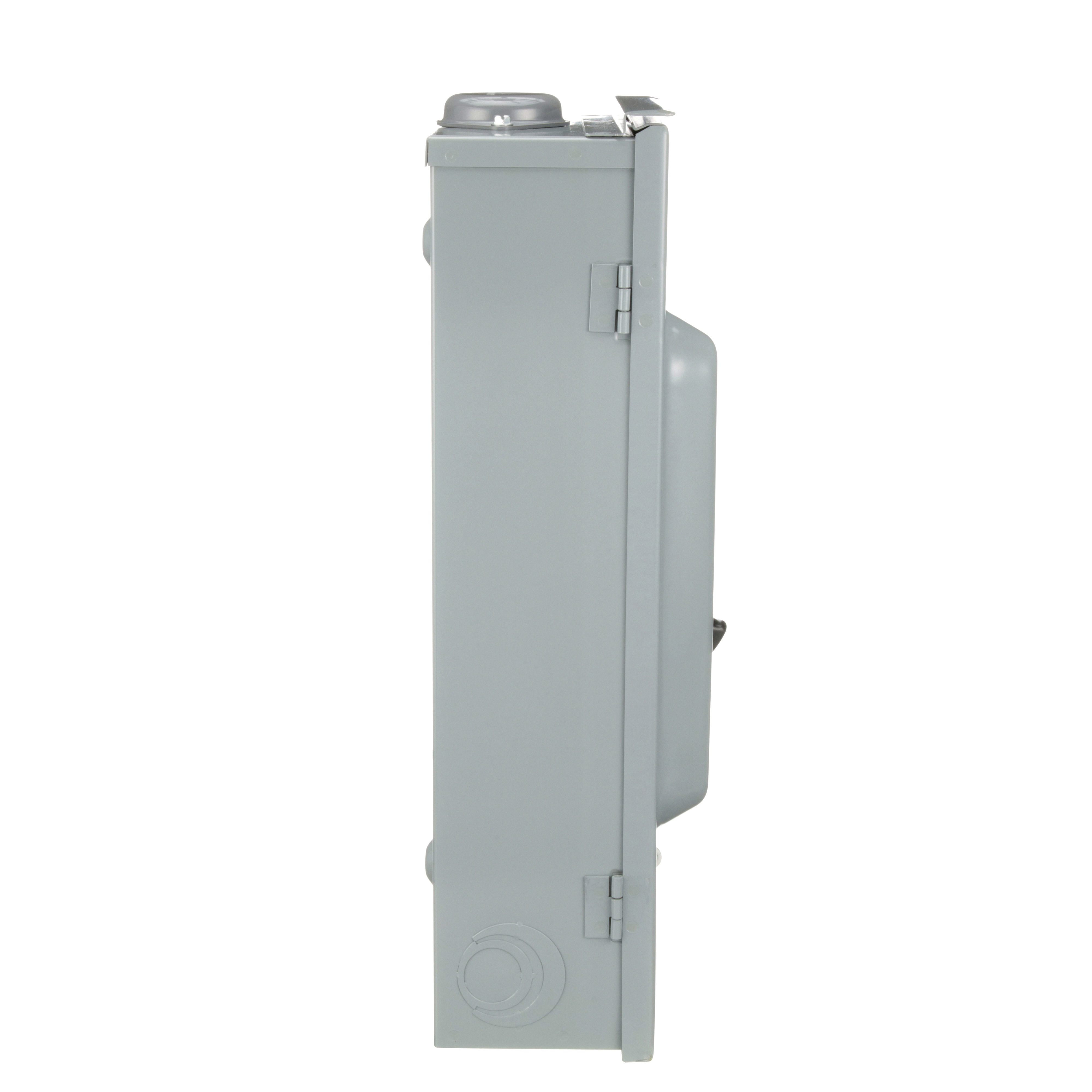

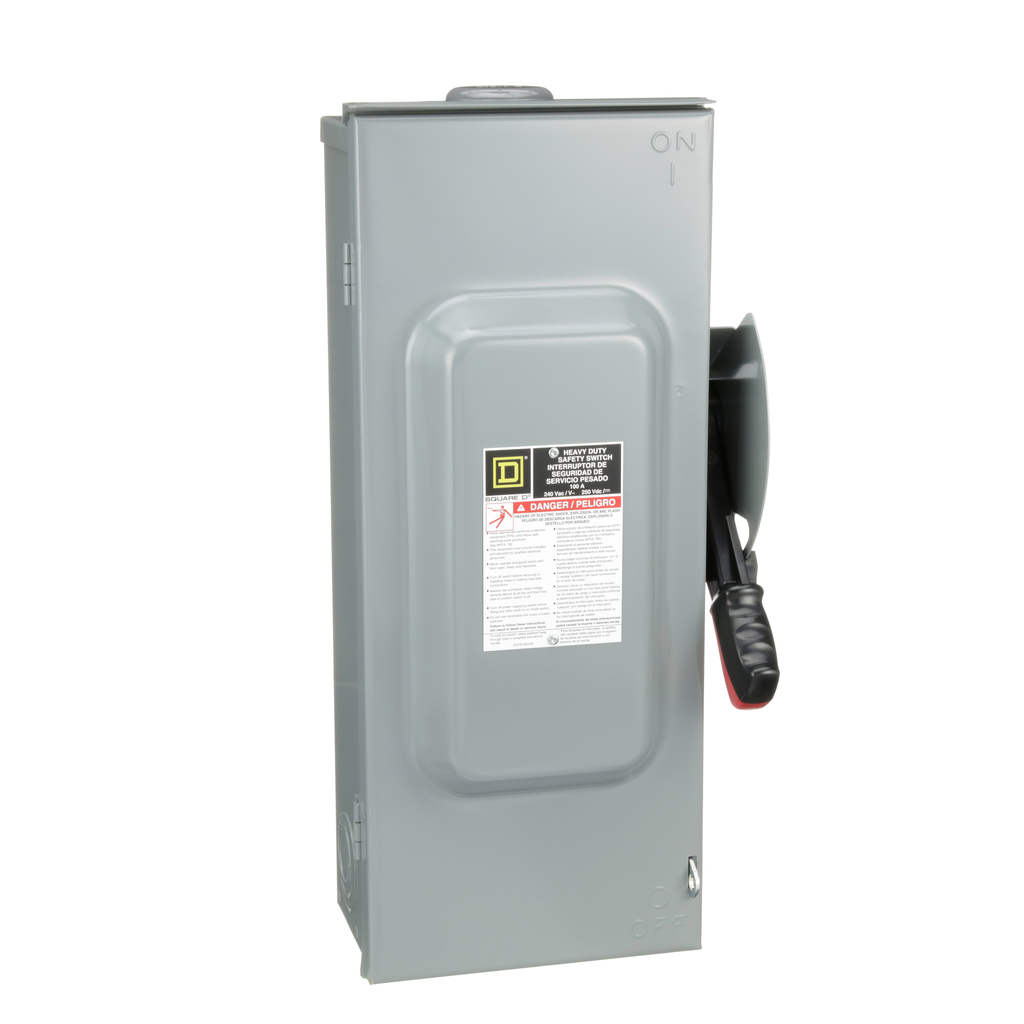

Square D H323NRB Heavy Duty Safety Switch 240 VAC 100 Amp 3-Pole H/J/K/L/R

Product Description

The Square D H323NRB is a heavy-duty safety switch designed for reliable performance in challenging environments. This fusible disconnect has a rated current of one hundred amps and operates at two hundred forty volts alternating current. With a three-pole configuration, it meets NEMA 3R standards, making it suitable for indoor and outdoor use. The switch features a quick-make, quick-break operating mechanism, ensuring fast and safe operation.

• Rated current: 100 amps
• Voltage ratings: 240VAC and 250VDC
• Short circuit current rating: 10kA to 200kA

Product Highlights

This switch is crafted from galvannealed steel with a neutral factory-installed. The heavy-duty design features a dual cover interlock and color-coded indicator handle. It accepts various fuse types including H, J, K, L, and R.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H323NRB
• Type: Single Throw Safety Switch, Fusible Disconnect
• Enclosure: NEMA 3R Galvannealed Steel
• Weight: 19.84 lb
• Dimensions: 21.25 inches (height) x 8.5 inches (width) x 6.38 inches (depth)
• Wire Size: AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper
• Country of Origin: USA
