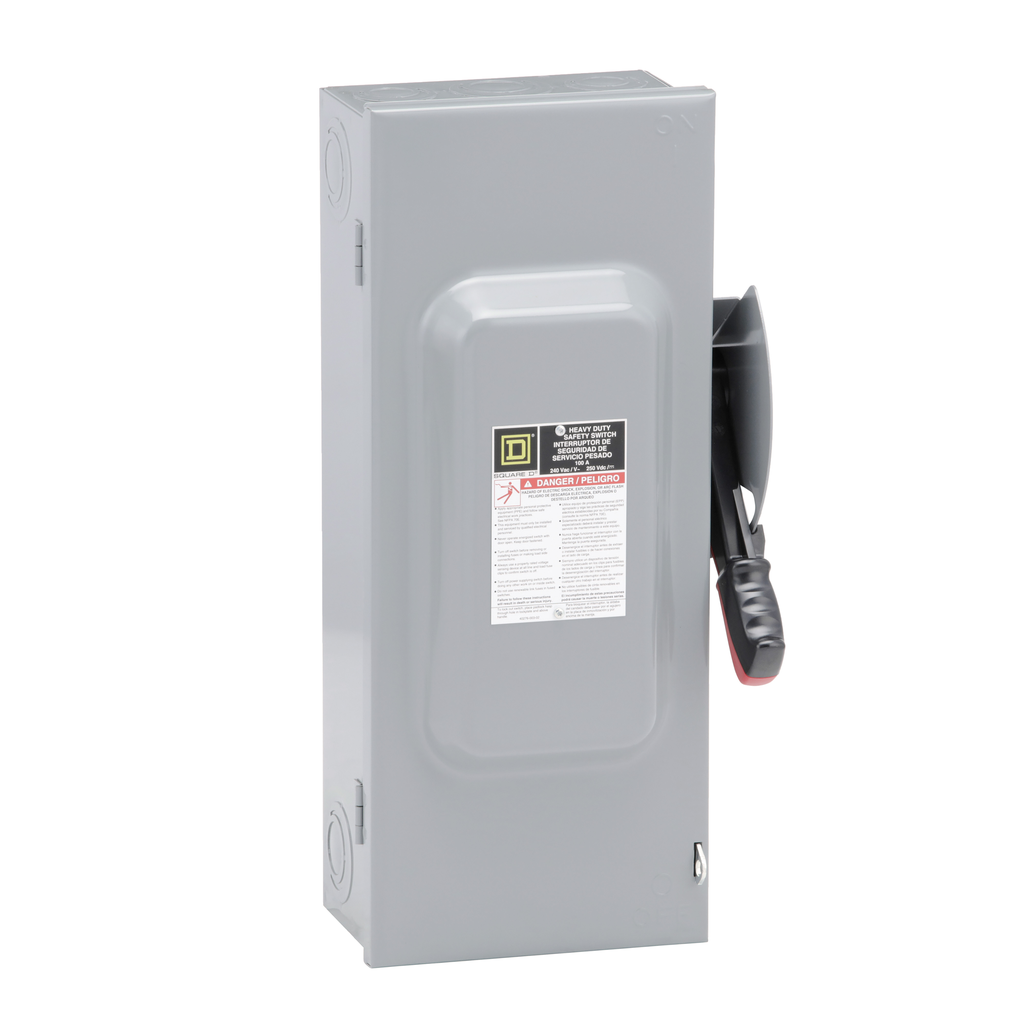

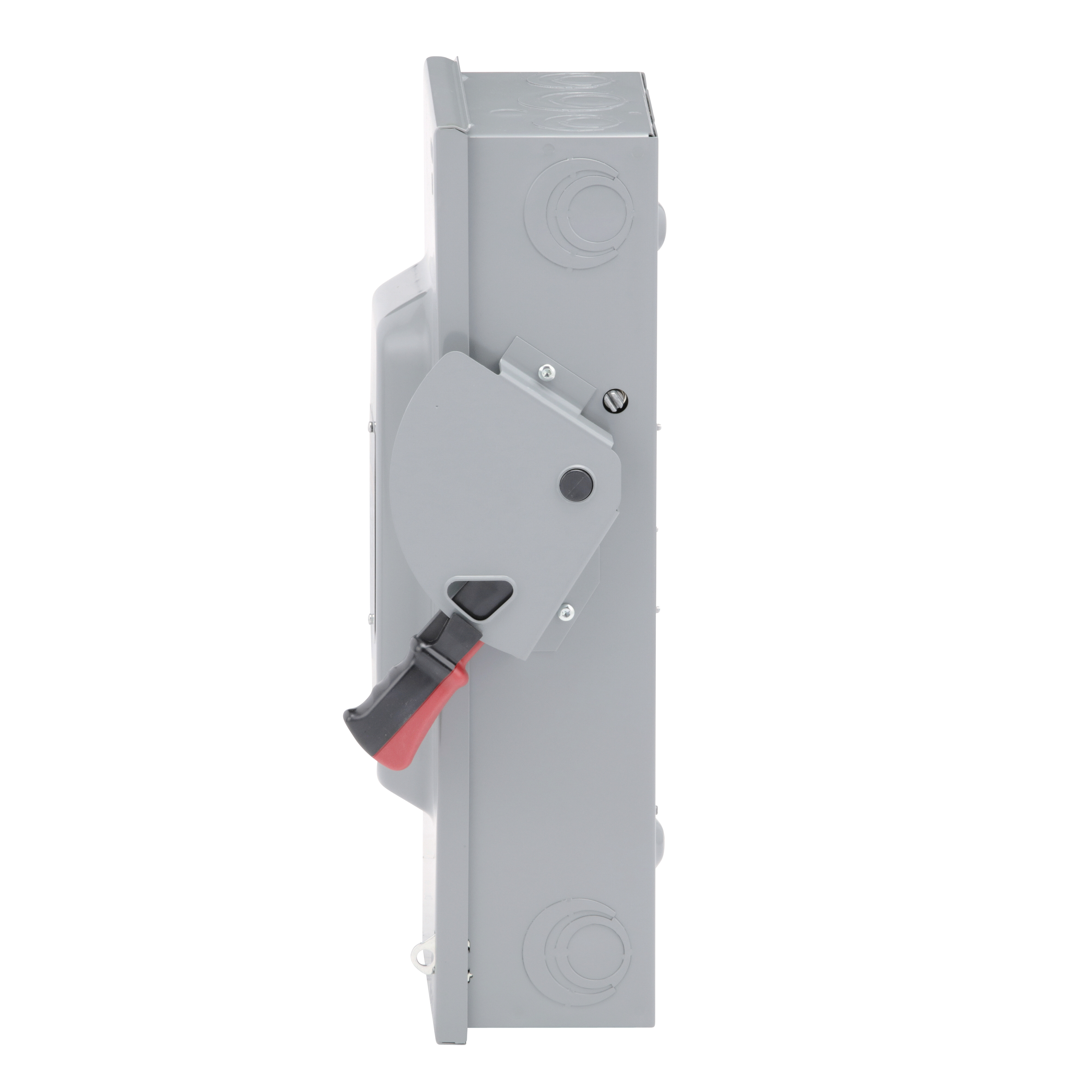

Square D H323N Heavy Duty Safety Switch 100 Amp 240 VAC 3-Pole Fusible H323N

Product Description

The Square D by Schneider Electric Heavy Duty Safety Switch, MPN H323N, is designed for reliable operation in demanding environments. This unit is constructed to exceed NEMA KS-1 and UL98 standards, ensuring enhanced mechanical endurance and safety. The quick-make, quick-break operating mechanism allows for immediate disconnection, while the dual cover interlock and color-coded indicator handle provide ease of use and visual confirmation. The safety switch is rated for 100 Amps and is UL listed with a NEMA rating of 1.

• Rated current: 100A
• Voltage: 240VAC & 250VDC
• Features a fusible disconnect with a short circuit current rating of 10kA to 200kA

Product Highlights

This 3-pole switch is surface mounted and accepts various fuse types including H, J, K, L, and R. Made from durable steel, the enclosure includes a neutral factory installed. The safety switch is suitable for heavy-duty applications and includes an 18-month warranty for peace of mind.

Product Information

Standard Information

• Catalog Number: H323N
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Type: Single Throw Safety Switch
• Current: 100 Amp
• Voltage: 240 Volt
• Material: Steel
• Short Circuit Current: 10 kA
• Mounting Type: Surface
• Warranty Length: 18 months
