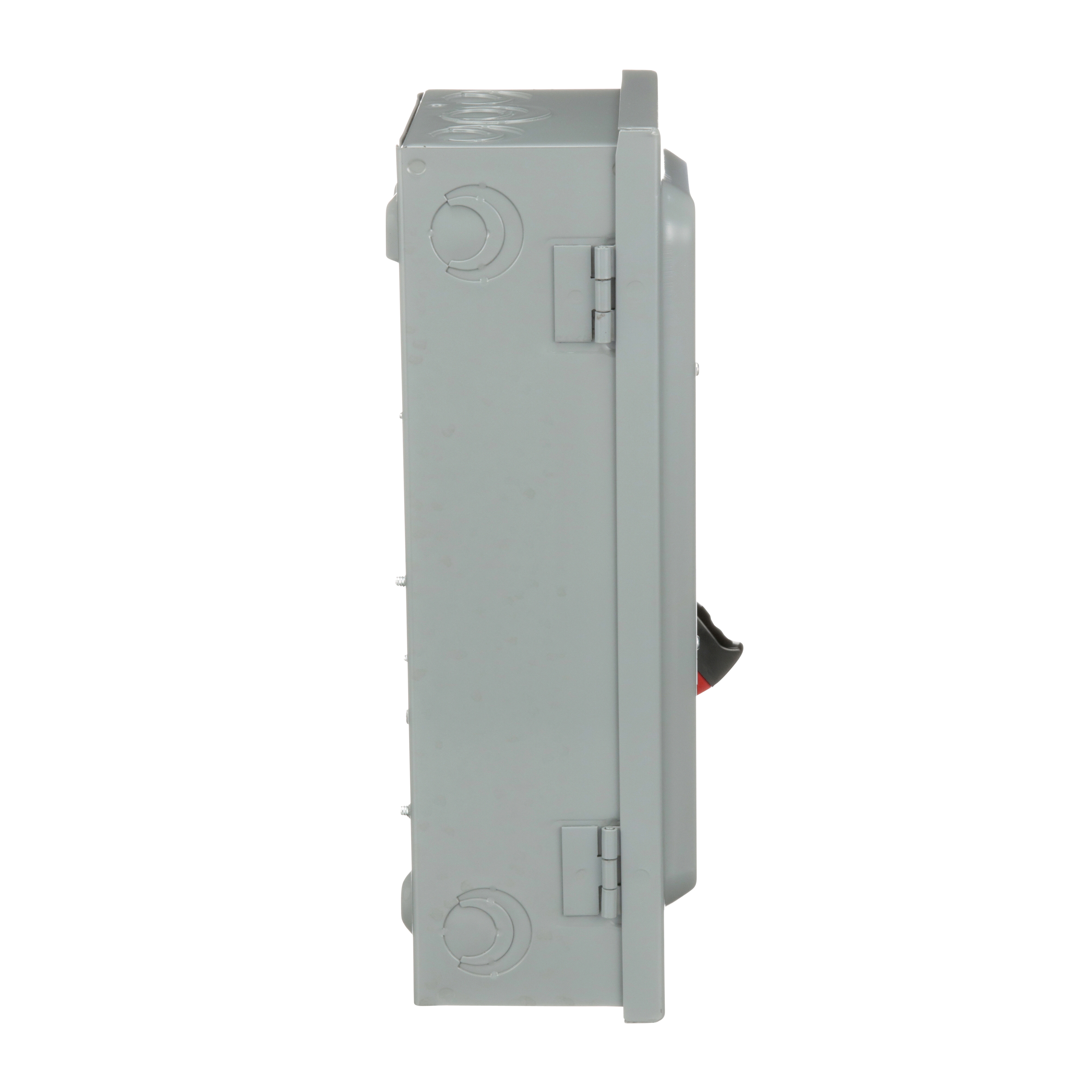

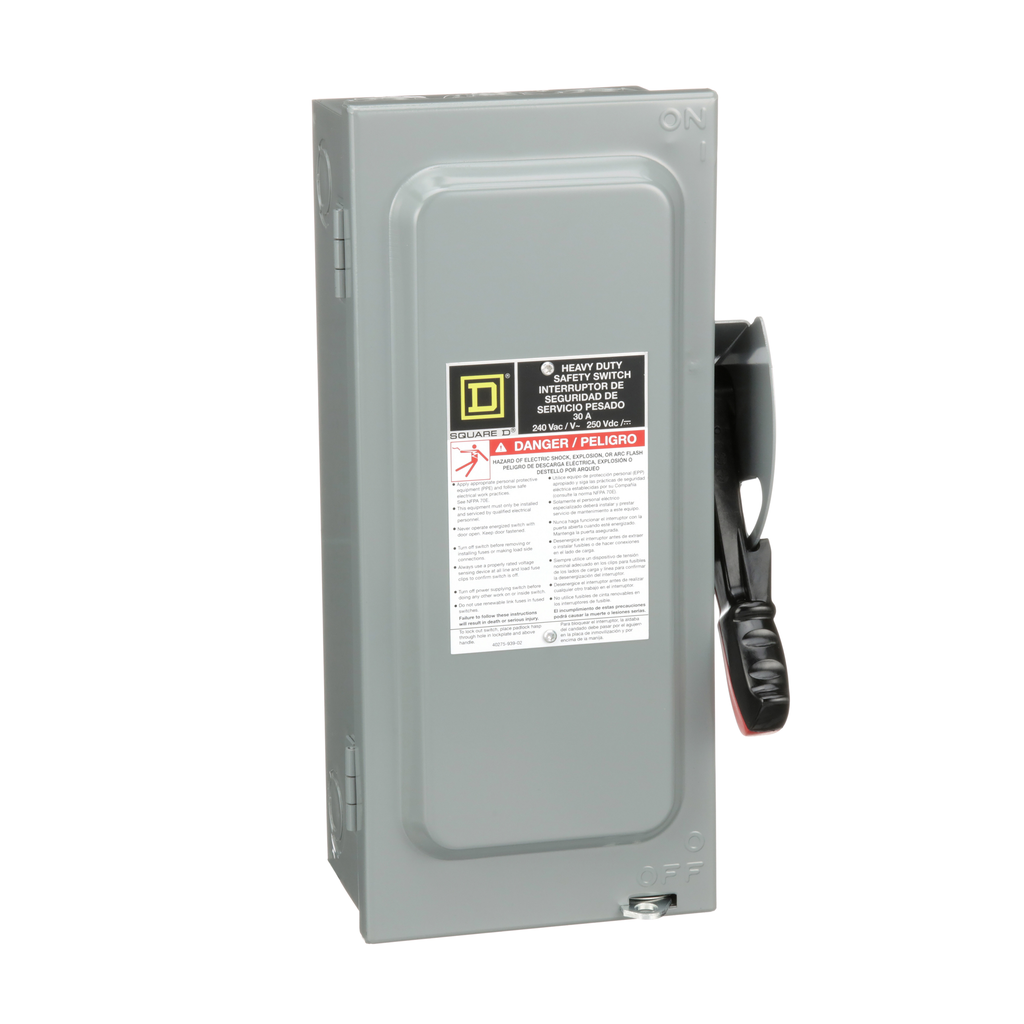

Square D H321N Heavy Duty Safety Switch 240 Volt 30 Amp 3-Pole

Product Description

The Square D by Schneider Electric H321N is a heavy duty safety switch designed for durability and reliability. This single throw fusible disconnect features a current rating of thirty amps and is suitable for voltages of two hundred forty volts AC and two hundred fifty volts DC. The construction is robust, utilizing steel for the enclosure, which also includes a neutral factory installed. This product is designed to accept fuse types H, J, K, L, and R, ensuring compatibility with various electrical systems. Its surface-mounted design and UL listing make it ideal for commercial and industrial applications.

• Rated for up to 30 Amps.
• 3-Pole switch with NEMA 1 protection.
• Short circuit rating between 10 kA and 200 kA.

Product Highlights

This safety switch enhances operational efficiency in demanding environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: H321N
• Current Rating: 30 Amp
• Voltage Rating: 240 Volt AC / 250 Volt DC
• Fuse Type: H, J, K, L, R
• Enclosure Material: Steel
• Short Circuit Rating: 10 kA to 200 kA
• Dimensions: 14.6 in height, 6.5 in width, 4.88 in depth
• Weight: 8.82 lb
