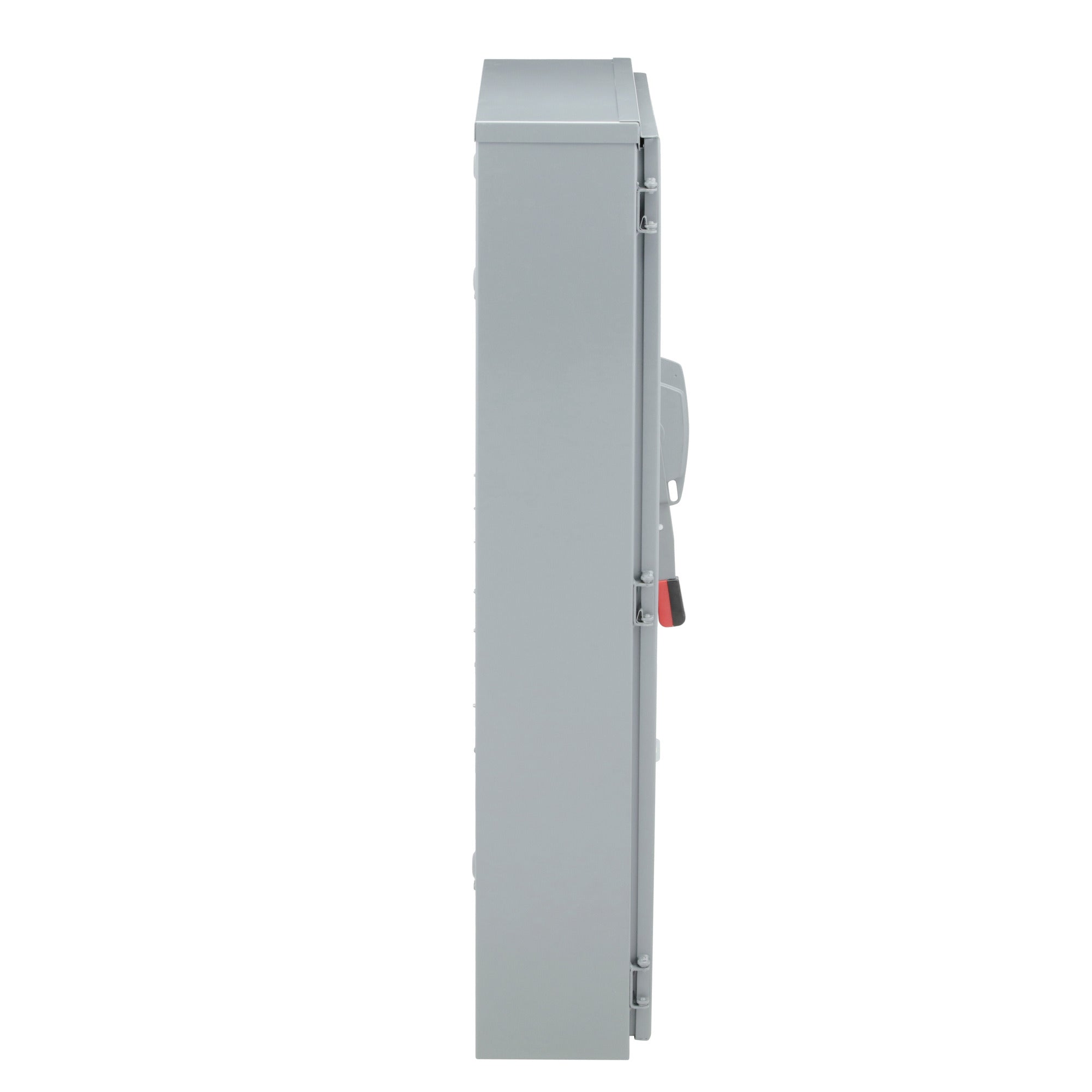

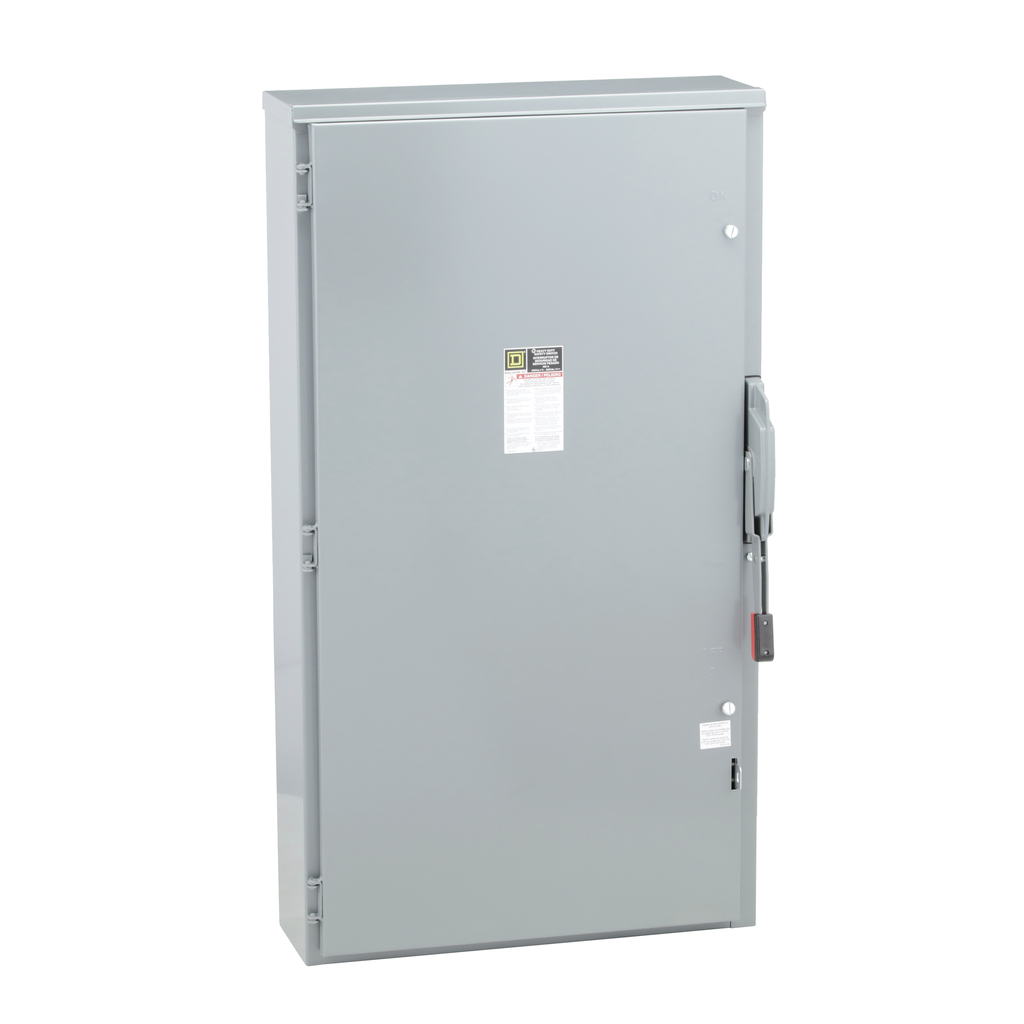

Square D H225NR Safety Switch 400 Amp 240 Volt 2-Pole NEMA 3R

Product Description

The Square D by Schneider Electric H225NR is a heavy-duty safety switch designed for reliable performance in challenging environments. This safety switch is rated for four hundred amps and operates at two hundred forty volts. It features a two-pole configuration with NEMA three R rating for weather resistance. The switch is UL listed and includes a neutral that is factory installed. The enclosure is made from galvannealed steel and can withstand various environmental conditions.

• 400 Amp rated current with dual pole configuration
• UL listed with NEMA 3R rating for outdoor use
• Compatible with H, J, K, L, R fuse types

Product Highlights

This fusible disconnect switch ensures a quick-make, quick-break action for efficient operation. Its robust design offers significant mechanical endurance above standard requirements, making it suitable for heavy-duty applications.

Product Information

Standard Information

• Catalog Number: H225NR
• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Type: Single Throw Safety Switch, Fusible Disconnect
• Current: 400 Amp
• Voltage: 240 Volt AC, 250 Volt DC
• Height: 50.31 inches
• Width: 27.88 inches
• Depth: 10.13 inches
• Weight: 175.05 pounds
• Fuse Type: H, J, K, R
• Enclosure Material: Galvannealed Steel
• Enclosure Rating: NEMA 3R
• Warranty Length: 18 months
• Country of Origin: Mexico
