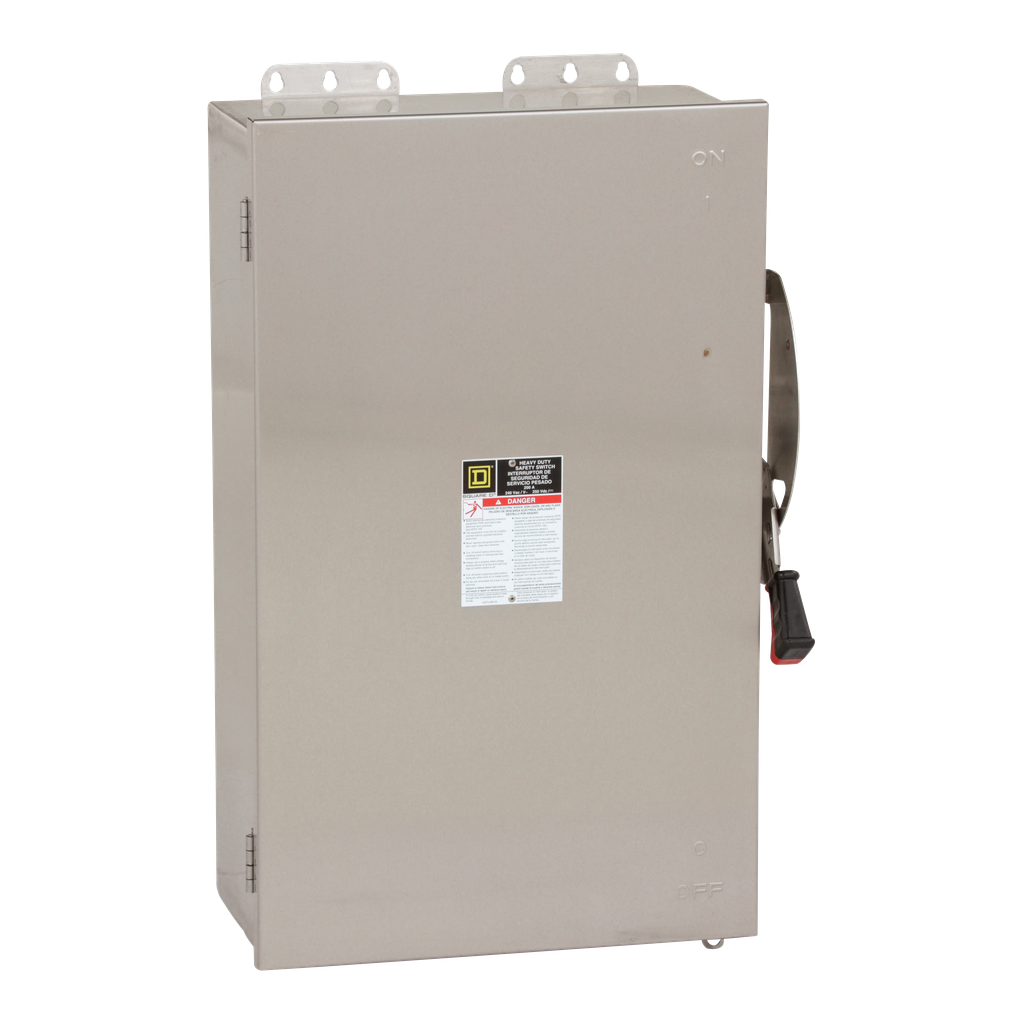

Square D H224DS Heavy Duty Safety Switch 200 Amp 240 VAC 2-Pole

Product Description

The Square D H224DS is a heavy-duty safety switch designed for robust electrical protection. This 200 Amp, two-pole switch operates at 240 VAC. Built for commercial and industrial environments, it offers superior durability and reliability.

• High durability, exceeding NEMA standards.
• Effective for electrical disconnect and protection.
• Configured for three-phase applications.

Product Highlights

This switch features a fusible design, rated for up to sixty horsepower at 480 VAC. It is suitable for time delay fuses and has a four-wire configuration for versatility.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: H224DS
• Voltage Rating: 240 VAC, 250 VDC
• Current Rating: 200 Amp
• Number of Poles: 2
• Fuse Type: H or K, R or J
• Enclosure Rating: NEMA 1
• Height: 21.85 inches
• Width: 10.5 inches
• Depth: 6.81 inches
• Weight: 59.26 lbs
