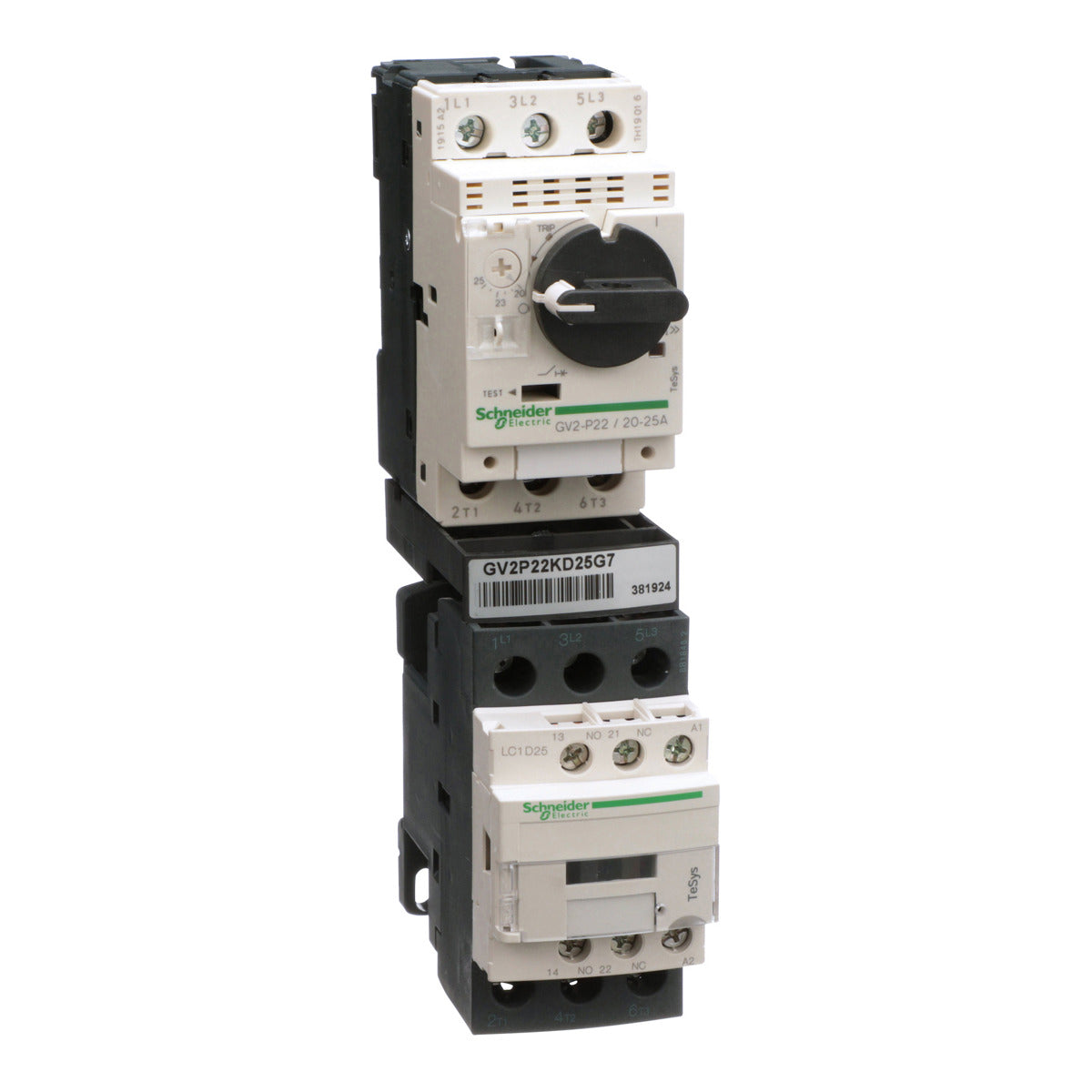

Square D GV2P22KD25G7 Motor Starter Kit TeSys LC1D25G7 Contactor 120 VAC 50/60 Hz Coil 20 to 25A Trip

Product Description

Square D GV2P22KD25G7 is a motor starter kit that combines the GV2P22 motor starter protector and LC1D25G7 contactor. This unit is designed to handle motor control applications and resistive loads. It operates on a coil voltage of one hundred twenty volts AC at fifty to sixty hertz and offers a trip range of twenty to twenty-five amps.

• Includes a GV2P22 motor starter protector.
• Features a LC1D25G7 contactor for reliable performance.
• Designed for motor control and resistive load applications.

Product Highlights

This motor starter kit meets UL 508 Type F standards, ensuring safety and reliability in operation. On overload, short circuit, undervoltage, or shunt trip, the device provides a visible trip indication for easy monitoring.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: GV2P22KD25G7
• Application: Motor control; resistive load
• Coil Voltage: 120 V AC 50/60 Hz
• Operating Cycles: 25...400 Hz
• Contact Configuration: 1 NO + 1 NC; 3 NO
• Mounting: Din Rail
• Special Features: Without built-in suppressor module
• Standards: UL; BV; RINA; GOST; DNV; CCC; CSA; EN 60947-4-1; EN 60947-5-1
• GTIN: 03606486288047
