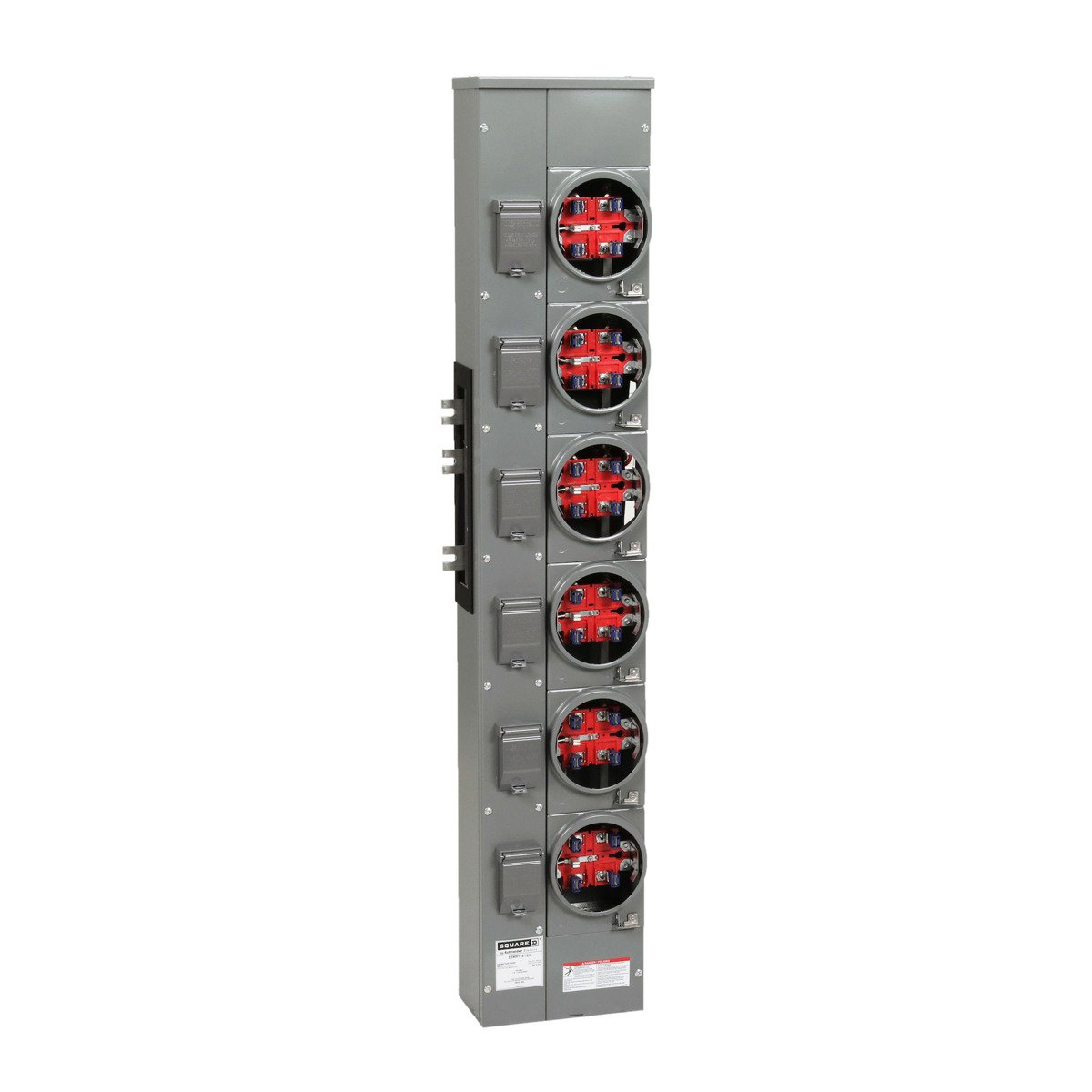

Square D EZMR116125 meter center branch unit 125 amp

Product Description

The Square D EZMR116125 meter center branch unit is an industry choice for multi-unit construction needs. This ringless branch unit is rated at 125A and features 6 five jaw sockets. It operates at 120/240 VAC and has no bypass, including an 800 A aluminum busbar. Compliant with UL standards, it features a NEMA 3R rated steel enclosure.

• Rated for 125A and 120/240 VAC operation.
• Features 6 five jaw sockets and an 800 A aluminum busbar.
• Compliant with UL standards and NEMA 3R enclosure.

Product Highlights

The Square D EZMR116125 is ideal for residential applications requiring a reliable meter center branch unit.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZMR116125
• Country of Origin: Mexico

Technical Specifications

• Type: Ringless Meter Center Branch Unit
• Brand: Square D
• Depth: 180 mm
• Width: 311 mm
• Height: 1679 mm
• Current: 125 Amp
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Material: Aluminium Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Bus Rating: 800 A
• Product UPC: 78590130894
• 12-Digit UPC: 785901308942
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Catalog Number: EZMR116125
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• Bypass Type: No Bypass
• Phase: 1
• Special Features: Aluminium busbar
• Standard: UL Listed
• UPC: 785901308942
• GTIN: 00785901308942
• Item Type: Meter Center Branch Unit
• Breaker Type: QO/QO-VH/QOH
• Voltage Rating: 120/240 VAC
• Circuit Configuration: 1-Phase 3-Wire (Incoming, Outgoing)
• Bus Material: Aluminum
• Number of Sockets: 6
• Socket Type: Plug-In
• Socket Current Rating: 125 Ampere
• Socket Cover Style: Ringless Without Bypass
• Rated Current: 800A
• Rated Voltage: 120/240V ac
• No. of Wires: 3
• Wiring Configuration: 3-Wire
• NEMA Rating: 3R
• ECCN: EAR99
• Standards: California Proposition 65
