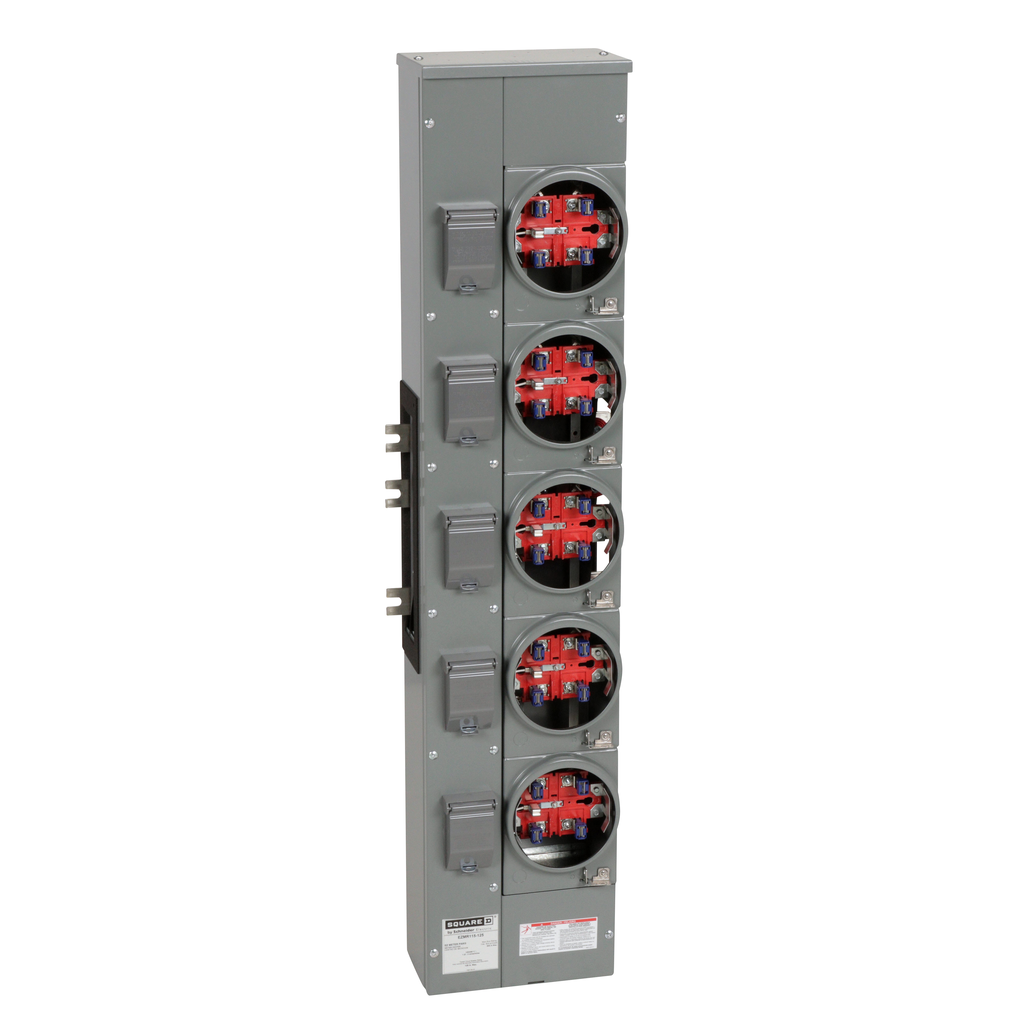

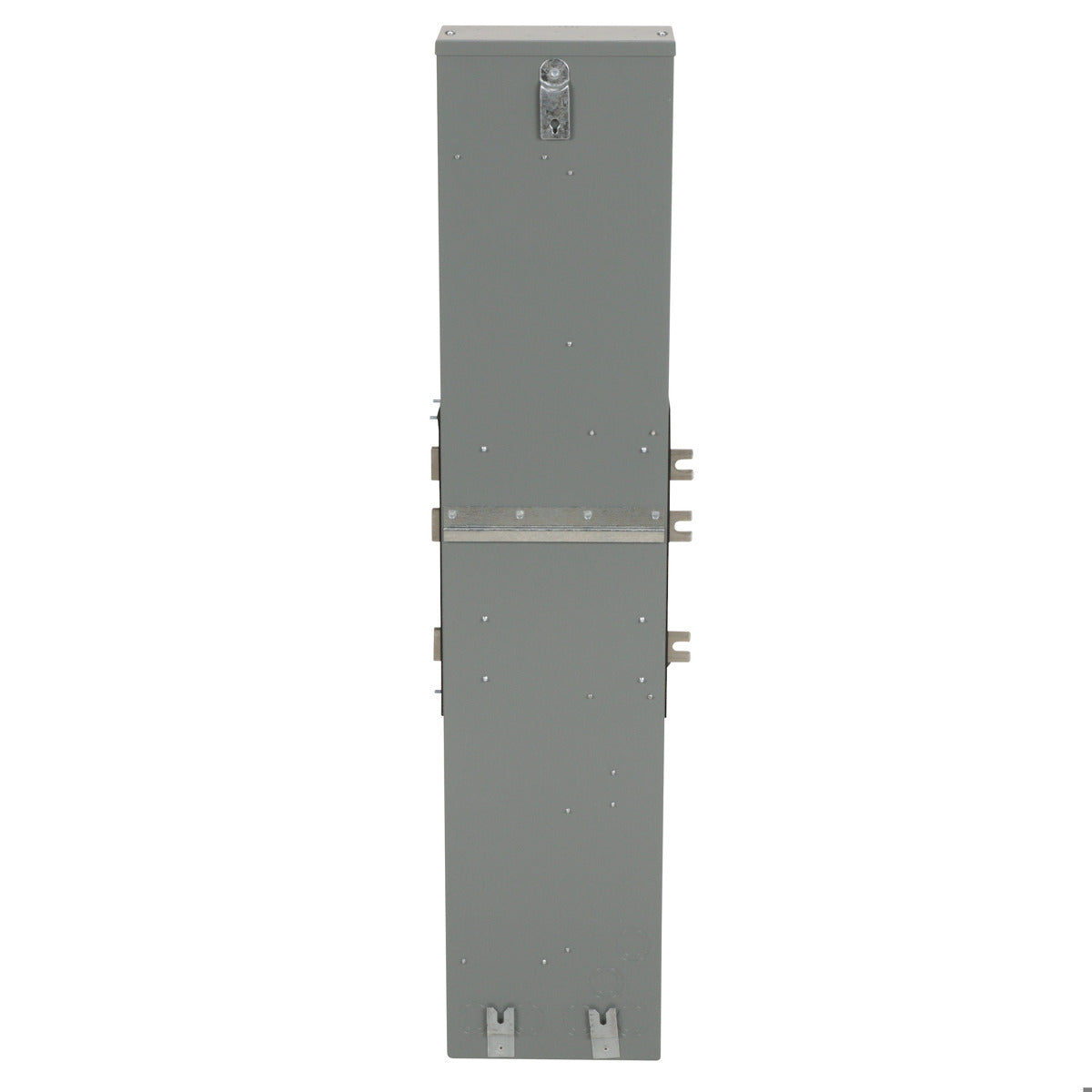

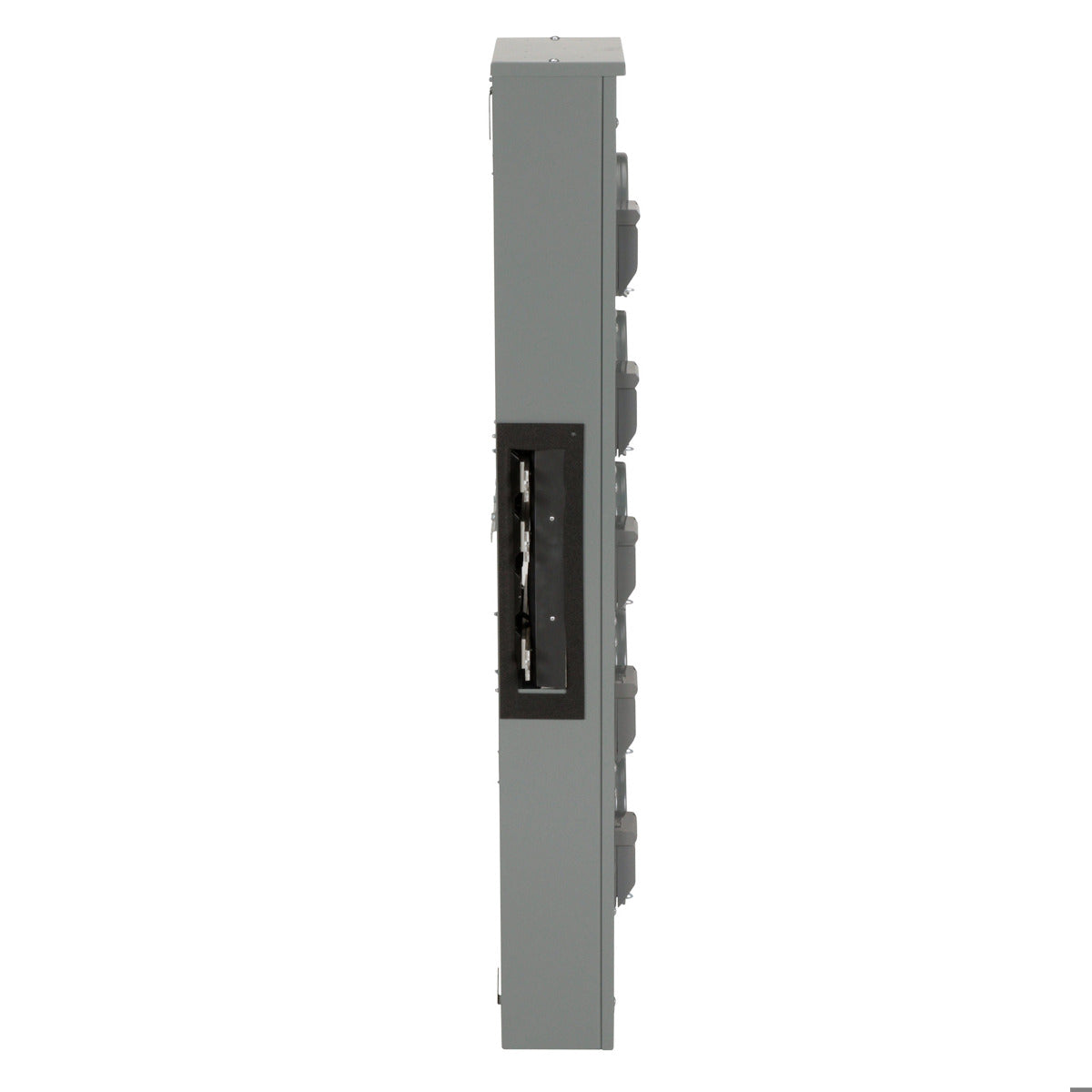

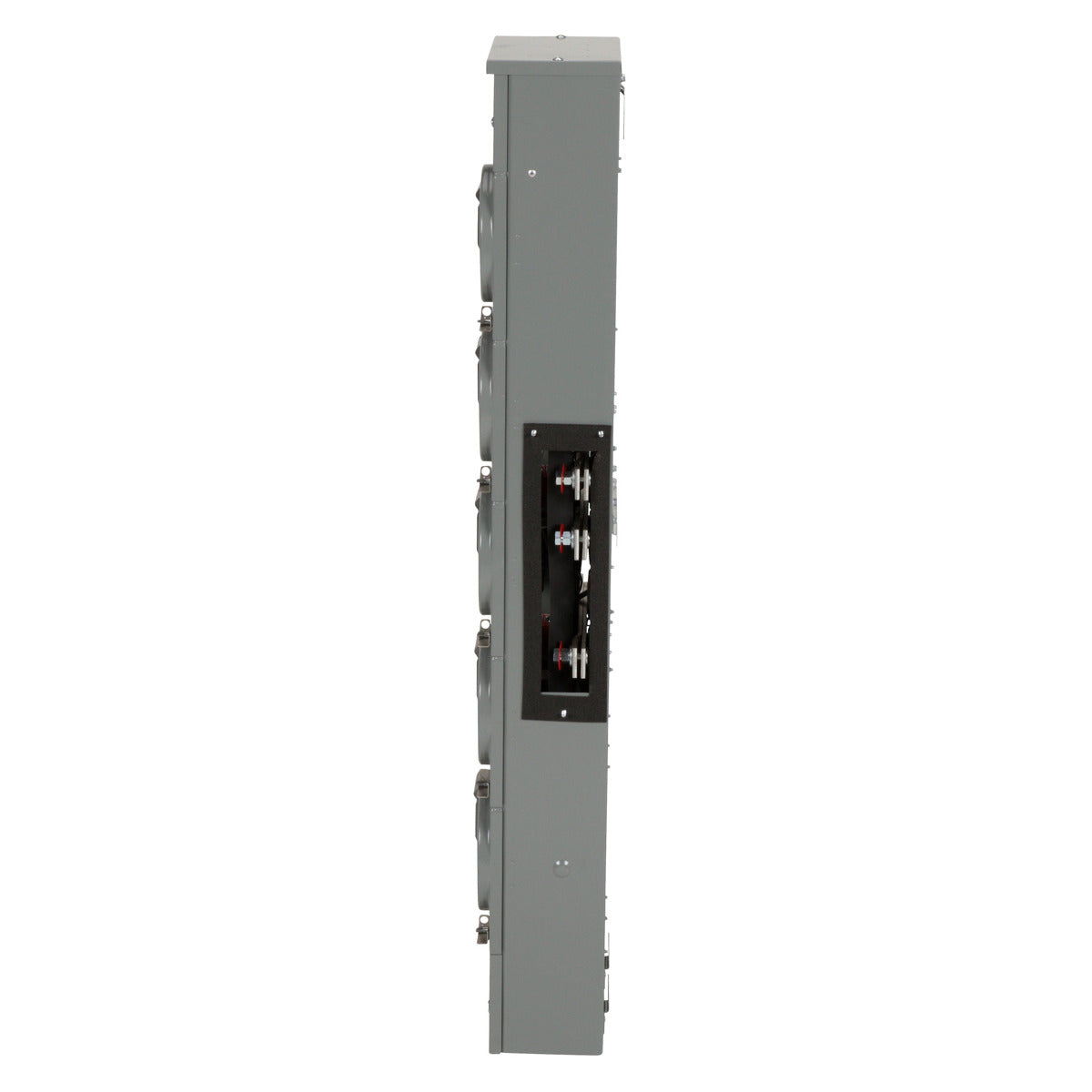

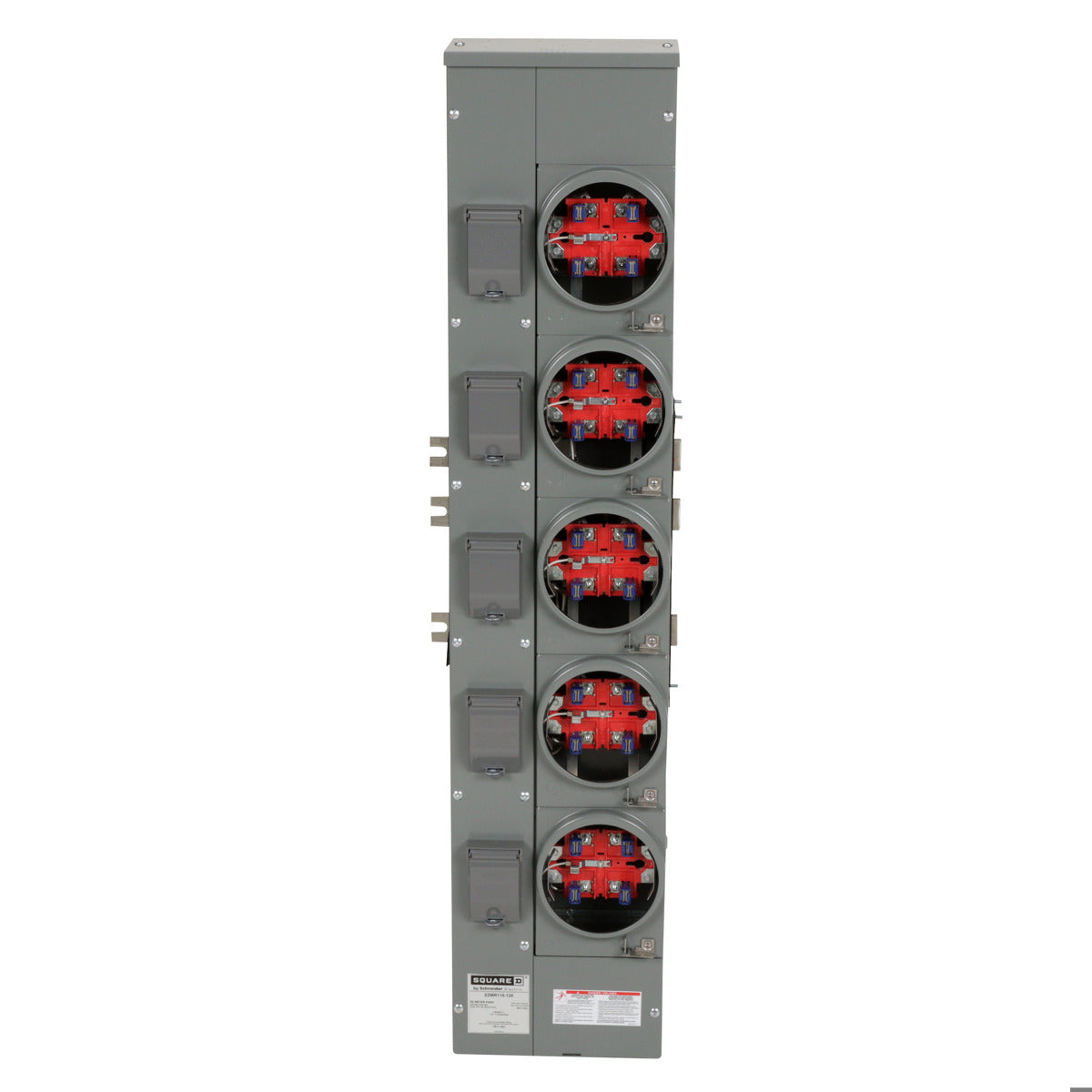

Square D EZMR115125 120/240 VAC 125 Amp 1-Phase Ringless Meter Center Branch Unit

Product Description

The Square D EZMR115125 is a reliable meter center branch unit that operates at 120/240 VAC with a capacity of 125 Amps. Constructed by Schneider Electric, this product is designed for both residential and commercial applications. It features a ringless design and is equipped with five jaw sockets, ensuring efficient connectivity without bypass capabilities. The device includes an 800 Amp aluminum busbar and complies with UL standards, making it a safe and robust choice for power distribution.

• Rated for 125 Amps with five jaw sockets
• Ringless design suitable for residential and commercial use
• Compliant with UL standards and rated NEMA 3R

Product Highlights

This meter center branch unit is ideal for multi-unit constructions, ensuring compliance and reliability in power distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EZMR115125
• Rated Voltage: 120/240 VAC
• Rated Current: 125 Amps
• Bus Rating: 800 Amps
• Enclosure Material: Steel
• Enclosure Type: NEMA 3R
• Height: 57.12 inches
• Width: 12.25 inches
• Depth: 7.09 inches
• Number of Phases: 1
• Mounting Type: Surface
• Country of Origin: Mexico
• Warranty Length: 18 months
• Number of Jaws: 5 without jaw release
