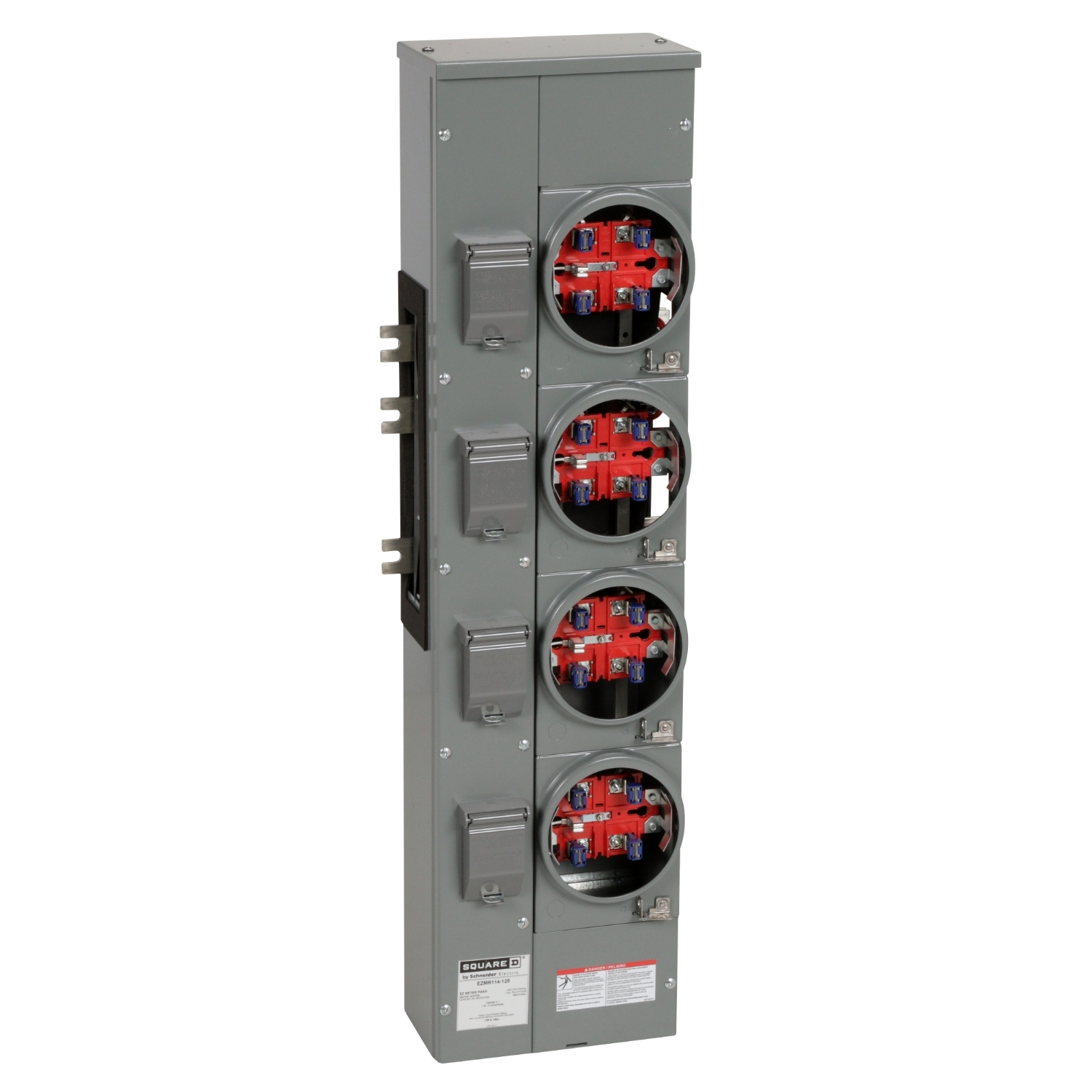

Square D EZMR114125 meter center branch unit 125 amp

Product Description

The Square D EZMR114125 is a meter center branch unit. This EZM branch unit comes with meter sockets and provisions for mounting tenant circuit breakers. It is ringless and rated 125A and has 4 five jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 800 A aluminium busbar and a steel enclosure with a NEMA 3R rating.

• Rated for 125 Amp
• Voltage rating of 120/240 VAC
• NEMA 3R enclosure

Product Highlights

The Square D EZMR114125 meter center branch unit is ideal for residential applications. It features a ringless socket type and an aluminum busbar.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZMR114125
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EZMR114125
• Type: Ringless;Meter Center Branch Unit
• Brand: Square D
• Depth: 7.09 Inch
• Width: 12.25 in
• Height: 48.12 Inch
• Current: 125 Amp
• Voltage: 120/240 Volt
• Material: Aluminium: Busbar
• Enclosure: 3R
• Sub Brand: METER-PAK
• Bus Rating: 800 A
• Product UPC: 78590140218
• 12-Digit UPC: 785901402183
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5 without jaw release
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Country of Origin: Mexico
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Size: 48.12 in
• Bypass Type: No Bypass
• Phase: 1
• Standard: UL Listed
• UPC: 785901402183
• GTIN: 00785901402183
• Item Type: Meter Center Branch Unit;Ringless
• Breaker Type: QO/QO-VH/QOH
• Circuit Configuration: 1-Phase 3-Wire (Incoming, Outgoing)
• Bus Current Rating: 800 Ampere
• Bus Material: Aluminum
• Number of Sockets: 4
• Socket Type: Plug-In
• Socket Current Rating: 125 Ampere
• Socket Cover Style: Ringless Without Bypass
• Approval: UL
• Range Of Product: Meter-Pak
• Bus Rated Current: 800 A
• Product Or Component Type: Meter Center Branch Unit
• Meter Socket Type: ringless
• [Ue] Rated Operational Voltage: 120/240 V AC
• Nema Degree Of Protection: NEMA 3R
• Wiring Configuration: 3-wire
• ECCN: EAR99
• UNSPSC: 39121102
• NEMA Rating: 3R
• No. of Wires: 3
• Rated Current: 800A
• Rated Voltage: 120/240V ac
• Single-Phase: Single-Phase
