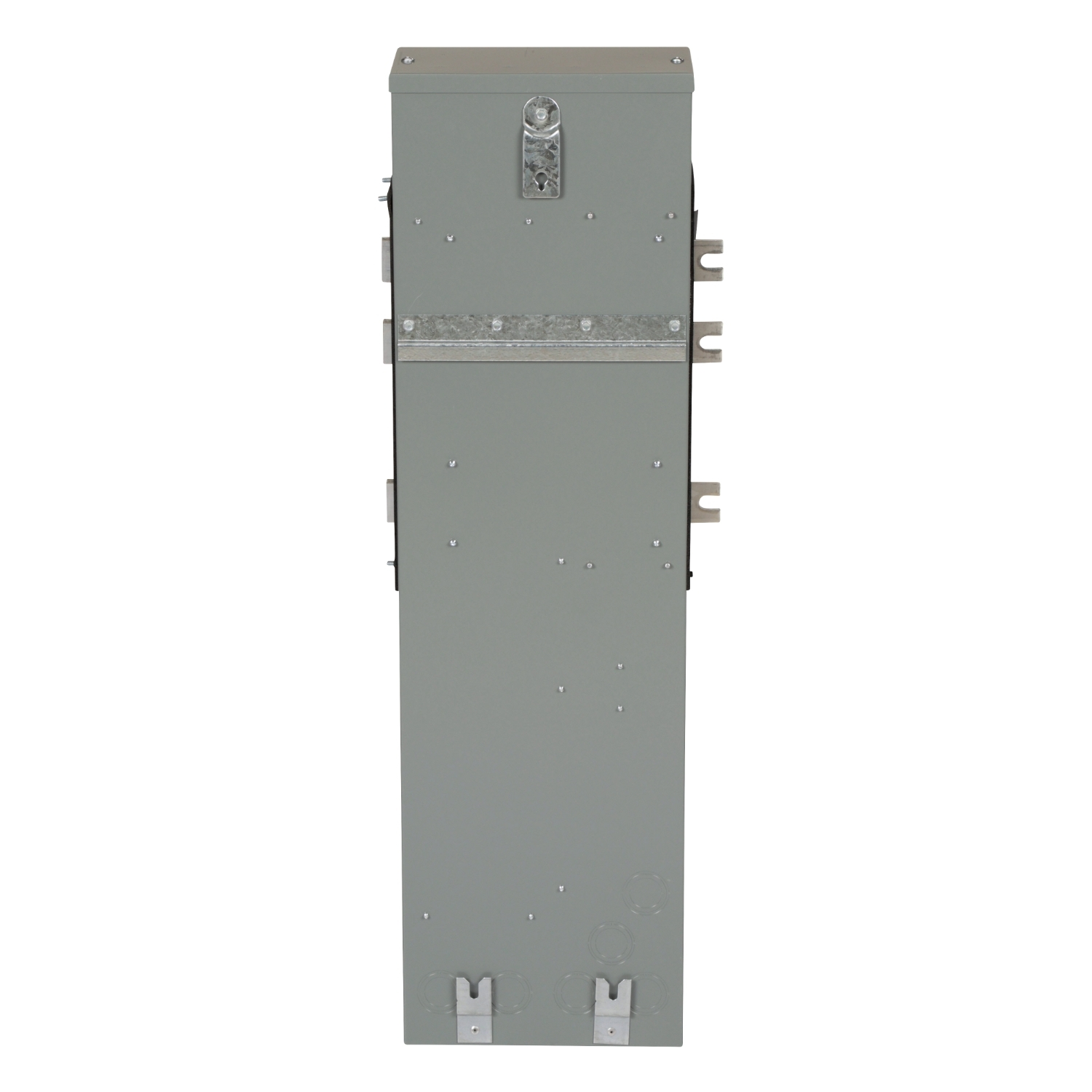

Square D EZMR113125 meter center branch unit 125 amp

Product Description

The Square D EZMR113125 is an EZ Meter-Pak meter center branch unit. This ringless branch unit is rated for 125A and designed with meter sockets for mounting tenant circuit breakers. It operates at 120/240 VAC and features an 800 A aluminum busbar. Compliant with UL standards, it has a NEMA 3R rated steel enclosure.

• Supplied with meter sockets and provisions for mounting tenant circuit breakers
• Features 3 five jaw sockets for use
• Compliant with UL standards and the steel enclosure has a rating of NEMA 3R

Product Highlights

The Square D EZMR113125 meter center branch unit is ideal for residential and commercial multi-unit construction.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZMR113125
• Country of Origin: Mexico

Technical Specifications

• Type: Ringless;Meter Center Branch Unit
• Brand: Square D
• Depth: 7.09 Inch
• Width: 12.25 in
• Height: 42.37 Inch
• Current: 125 Amp
• Voltage: 120/240 Vac
• Material: Aluminium: Busbar
• Enclosure: 3R
• Sub Brand: METER-PAK
• Bus Rating: 800 A
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Catalog Number: EZMR113125
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• Bypass Type: No Bypass
• Phase: 1
• Special Features: Aluminium: busbar
• Standard: UL Listed
• UPC: 785901402176
• GTIN: 00785901402176
• Item Type: Meter Center Branch Unit;Ringless
• Breaker Type: QO/QO-VH/QOH
• Circuit Configuration: 1-Phase 3-Wire (Incoming, Outgoing)
• Bus Current Rating: 800 Ampere
• Bus Material: Aluminum
• Number of Sockets: 3
• Socket Type: Plug-In
• Socket Current Rating: 125 Ampere
• Socket Cover Style: Ringless Without Bypass
• Enclosure Type: NEMA 3R, Indoor/Rainproof
• Application: Residential
• Approval: UL
• Mounting Style: Surface
• Maximum Amperage: 125 A
• Current Rating: 125 Amp
• Current Type: AC
• Number in Pack: 1
• Model: Square D EZMR113125
• Features: Ringless
• Box Shape: Rectangular
• Finish: Painted
• ECCN: EAR99
• UNSPSC: 39121102
• NEMA Rating: 3R
• No. of Wires: 3
• Rated Current: 800A
• Rated Voltage: 120/240V ac
• Wiring Configuration: 3-Wire
• Single-Phase: Single-Phase
• Sockets: 3
• Volts AC: 120/240
• Jaws: 5
• Standards: California Proposition 65
• IP/NEMA Rating: NEMA 3R
