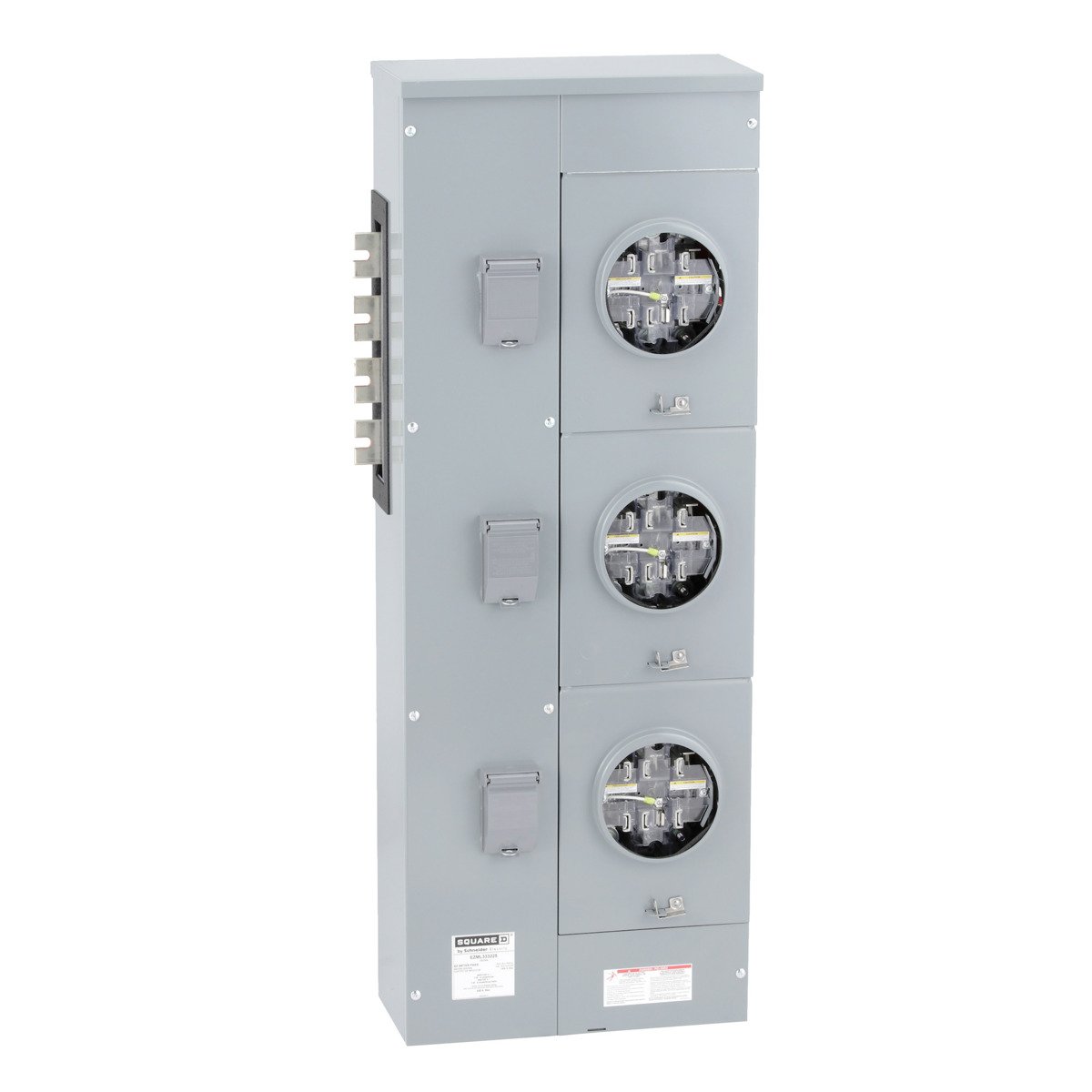

Square D EZML333225 Square D EZ Meter Pak 225 Amp 3-Socket 208Y/120V Lever Bypass Ringless

Product Description

The Square D EZML333225 is a 225 Amp 3-Phase Ringless Meter Center Branch Unit designed by Square D. This unit offers effective solutions for multi-unit constructions with its meter sockets and provisions for tenant circuit breakers. The EZ Meter Pak devices accommodate main ratings ranging from 225 to 2000 Amps.

• Rated at 225 Amps with a system voltage of 208Y/120 VAC
• Includes three seven-jaw sockets for reliable connections
• Compliant with UL standards and features a NEMA rated enclosure

Product Highlights

This unit is designed for both residential and commercial applications. Its ringless type adds convenience in access while maintaining compliance with safety standards.

Product Information

Standard Information

• Catalog Number: EZML333225
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120 Volt
• Amperage: 225 Amp, 1200 Amp bus rating
• Material: Aluminium/copper busbar
• Enclosure Type: Steel
• Warranty Length: 18 months
• Country of Origin: Mexico
• Enclosure Rating: NEMA 3R
• Mounting Type: Surface
