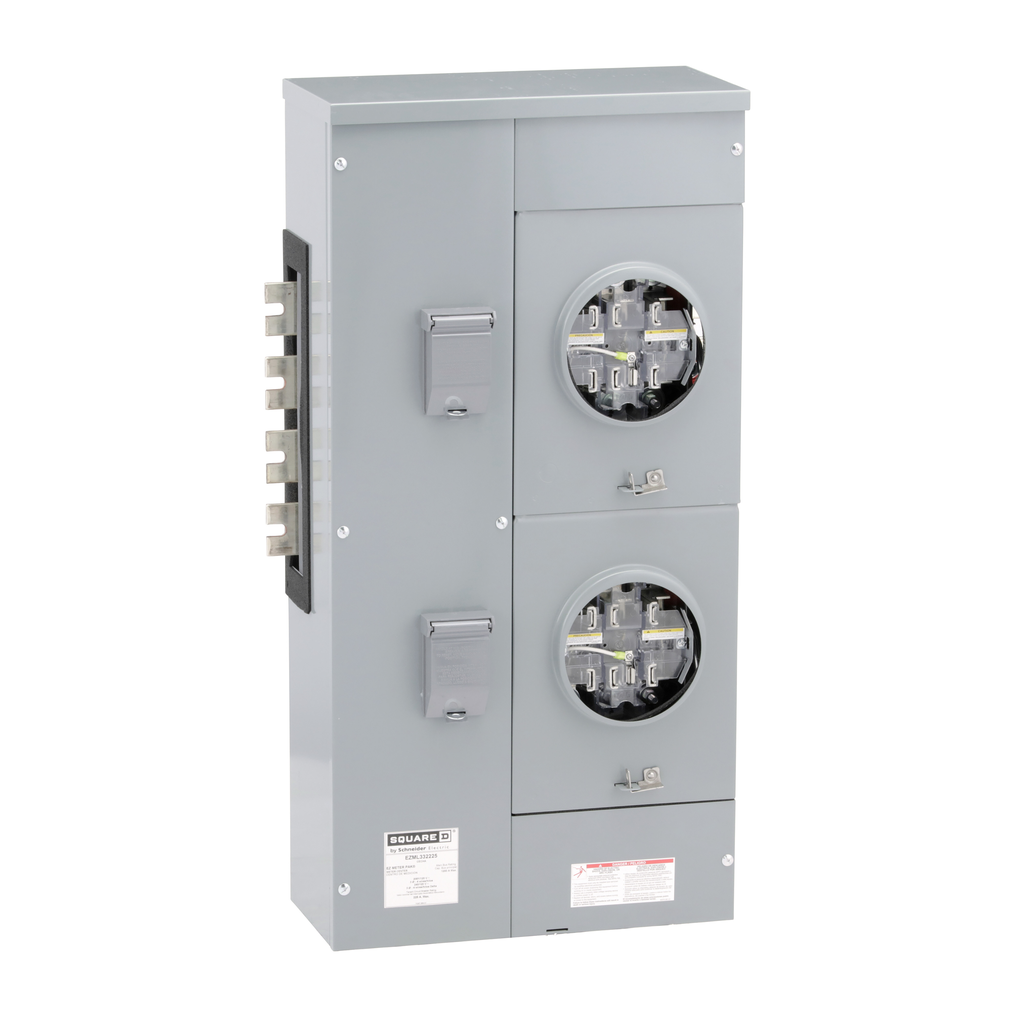

Square D EZML332225 240/120 VAC Delta 208 Star/120 VAC 225 Amp 3-Phase 4-Wire Ringless Meter Center Branch Unit

Product Description

Square D EZML332225 is a ringless meter center branch unit designed for 225 amp applications. This unit is suitable for two seven jaw sockets and supports system voltages of two hundred eight Y/one hundred twenty VAC. The lever bypass functionality enhances operational convenience. It integrates a 1200 amp aluminium/copper busbar ensuring efficient power distribution.

• Rated for 225 amps with two seven jaw sockets
• Meets UL compliance and features a NEMA 3R enclosure
• Surface mounting for easy installation

Product Highlights

This unit caters to both residential and commercial setups with provisions for mounting tenant circuit breakers. It supports various EZ Meter Pak configurations, making it versatile for different construction requirements.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EZML332225
• Voltage: 120 Volt
• Amperage Ratings: 225 Amp, 1200 Amp
• Bus Rating: 1200 A
• Height: 39.06 inches
• Width: 19.44 inches
• Depth: 9.44 inches
• Enclosure Material: Steel
• Enclosure Rating: NEMA 3R
• Phase: 3 Phase
• Country of Origin: Mexico
