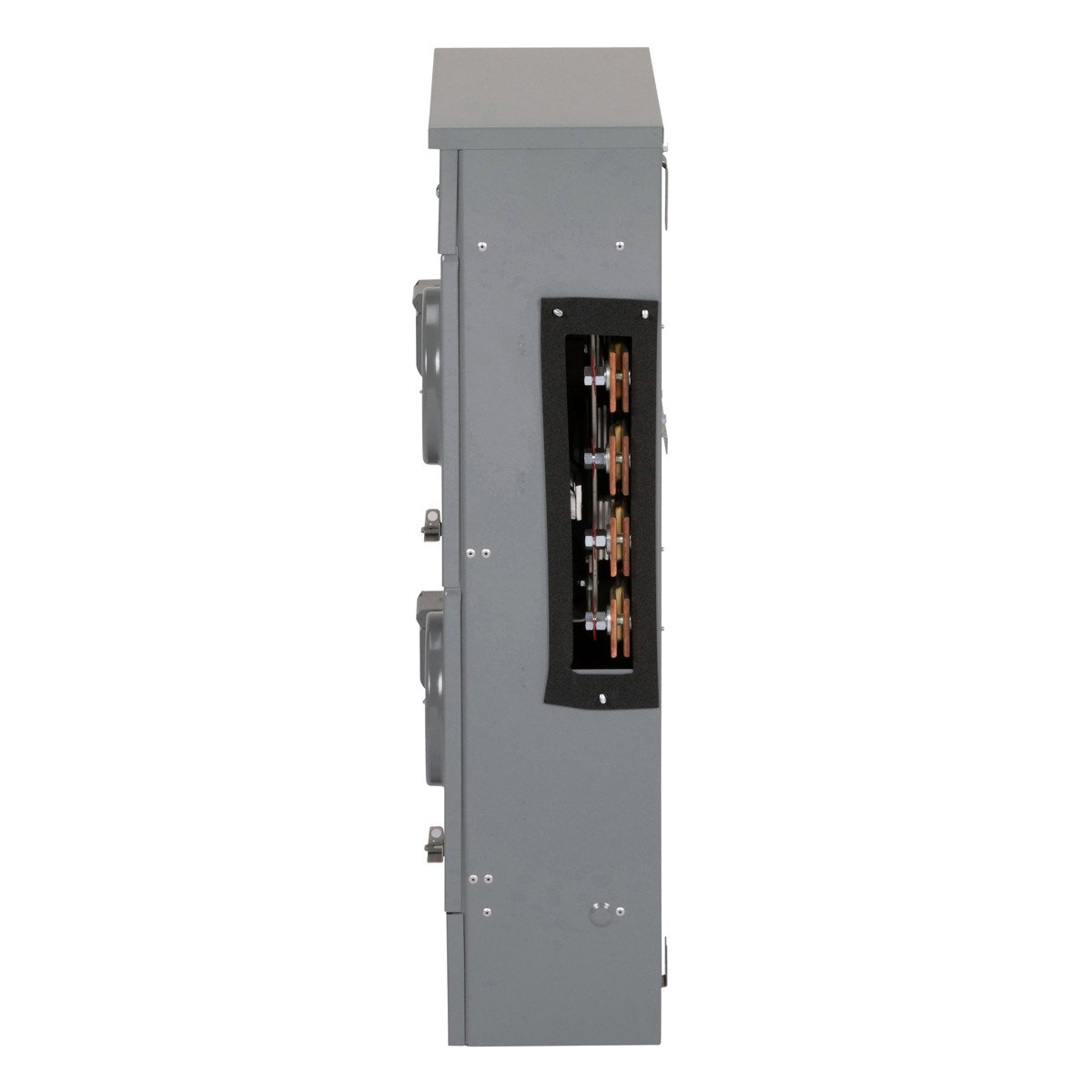

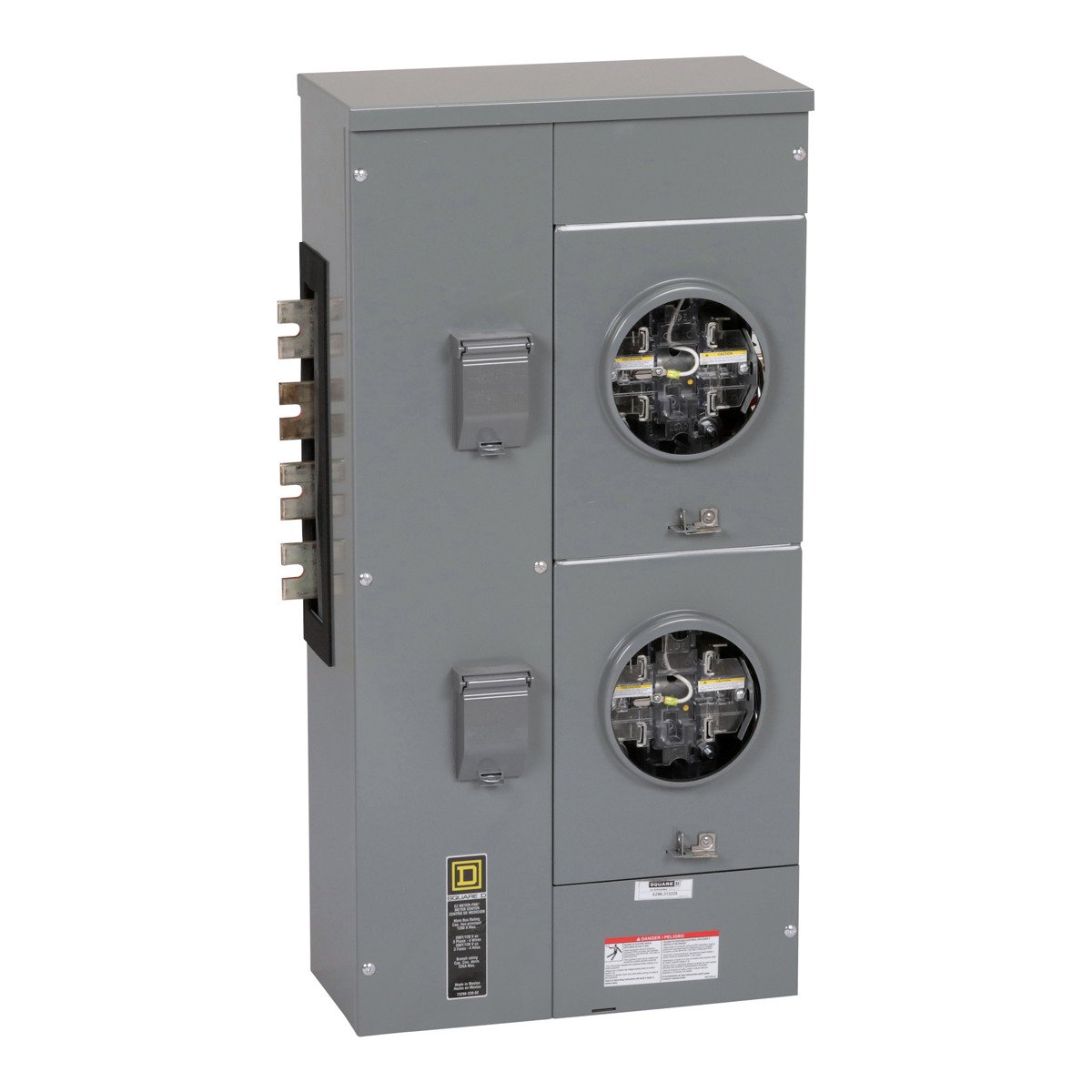

Square D EZML312225 Meter Center Branch Unit 225 Amp

Product Description

The Square D EZML312225 is an EZ Meter-Pak meter center branch unit. This ringless unit is rated for 225A and features 2 five jaw sockets. It operates at 208Y/120 VAC and includes a lever bypass and a 1200 A aluminum/copper busbar. The steel enclosure is NEMA 3R rated and UL compliant.

• Supplied with meter sockets and provisions for mounting tenant circuit breakers.
• Rated 225A with 2 five jaw sockets.
• Compliant with UL standards and NEMA 3R enclosure.

Product Highlights

The Square D EZML312225 meter center branch unit is ideal for multi-unit construction, providing a reliable solution for metering and protection.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZML312225
• Country of Origin: Mexico

Technical Specifications

• Type: Ringless;Meter Center Branch Unit
• Brand: Square D
• Depth: 9.44 Inch
• Width: 19.44 in
• Height: 39.06 Inch
• Current: 225 Amp
• Voltage: 120 Volt
• Amperage: 225 Amp
• Material: Aluminium/copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Bus Rating: 1200 A
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5 with jaw release
• Enclosure Rating: 3R
• Number of Phases: 1,3 Phase
• Enclosure Material: Steel
• Line Rated Current: 225 A
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Bypass Type: Lever
• Phase: 3
• Special Features: Aluminium/copper: busbar
• Standard: UL Listed
• UPC: 785901408734
• GTIN: 00785901408734
• Item Type: Meter Center Branch Unit;Ringless
• Breaker Type: QBP-TM/QDP-TM/QGP-TM/QJP-TM
• Voltage Rating: 208 VAC Star/120 VAC
• Circuit Configuration: 3-Phase 4-Wire (Incoming), 1-Phase 3-Wire (Outgoing)
• Bus Current Rating: 1200 Ampere
• Bus Material: Aluminum/Copper
• Number of Sockets: 2
• Socket Type: Plug-In
• Socket Current Rating: 225 Ampere
• Socket Cover Style: Ringless with Lever Bypass, Jaw Release
• Application: Commercial
• Approval: UL
• Amperage Rating: 225 A
• Series: EZM
