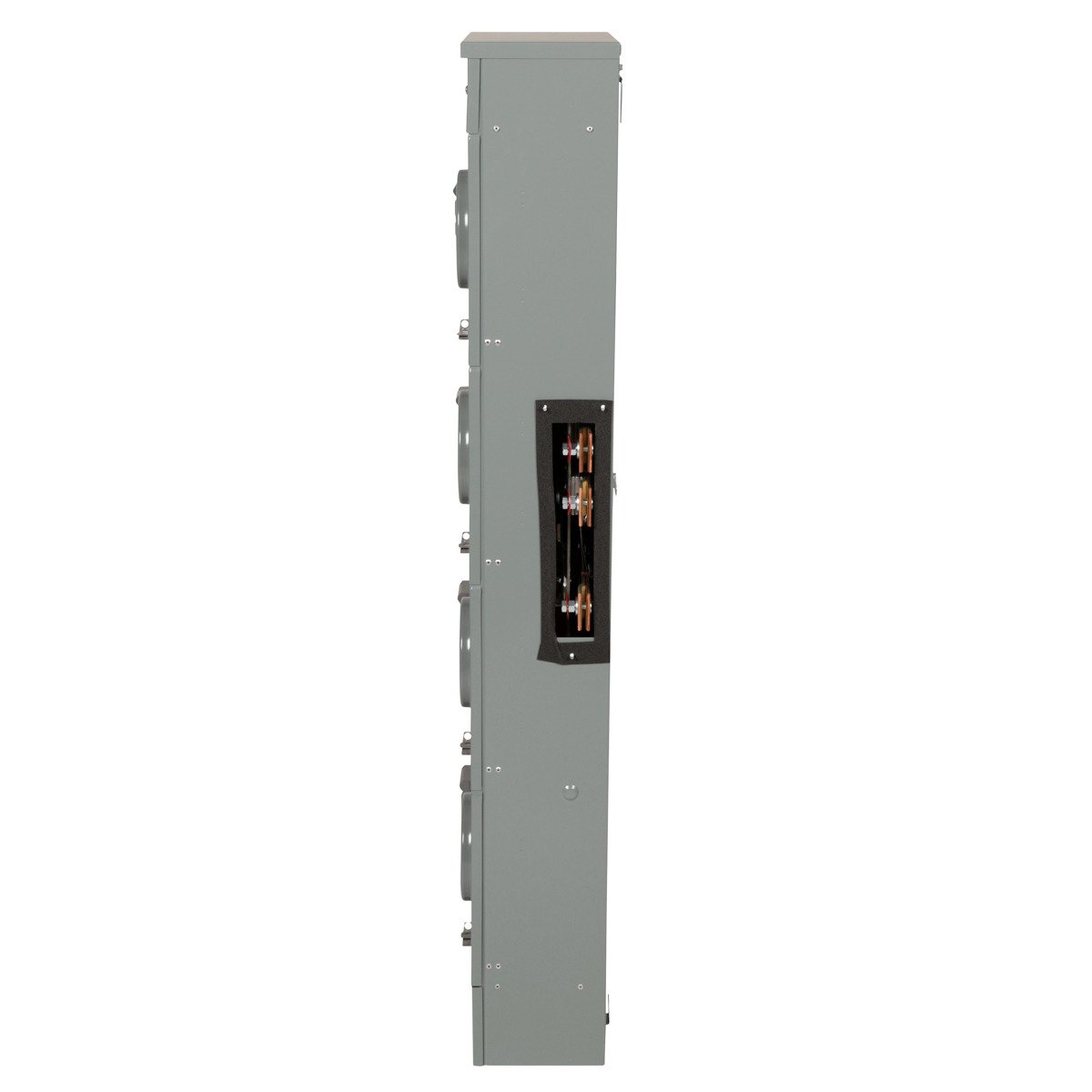

Square D EZML114225 EZ Meter-Pak Meter Center Branch Unit 225 Amp

Product Description

The Square D EZML114225 EZ Meter-Pak meter center branch unit is an industry choice for multi-unit construction needs. This ringless branch unit is rated for 225A and features 4 five-jaw sockets. Operating at 120/240 VAC, it includes a lever bypass and a 1200 A aluminum/copper busbar. The steel enclosure is NEMA 3R rated and UL compliant.

• Supplied with meter sockets and provisions for mounting tenant circuit breakers.
• Features 4 five jaw sockets for use.
• Compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Product Highlights

The Square D EZML114225 meter center branch unit is ideal for residential and commercial applications requiring a reliable and robust metering solution.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZML114225
• Country of Origin: Mexico

Technical Specifications

• Type: Ringless;Meter Center Branch Unit
• Brand: Square D
• Depth: 9.44 Inch
• Width: 19.44 in
• Height: 67.06 Inch
• Current: 225 Amp
• Voltage: 120/240 VAC
• Amperage: 1200 Amp
• Material: Aluminium/copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Bus Rating: 1200 A
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5 with jaw release
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Line Rated Current: 225 A
• Bypass Type: Lever
• Standard: UL Listed
• Item Type: Meter Center Branch Unit;Ringless
• Breaker Type: QBP-TM/QDP-TM/QGP-TM/QJP-TM
• Circuit Configuration: 1-Phase 3-Wire (Incoming, Outgoing)
• Bus Current Rating: 1200 Ampere
• Bus Material: Aluminum/Copper
• Number of Sockets: 4
• Socket Type: Plug-In
• Socket Current Rating: 225 Ampere
• Socket Cover Style: Ringless with Lever Bypass, Jaw Release
• Size: 19.44 Inch W x 9.44 Inch D x 67.06 Inch H
• Application: Commercial
• Approval: UL
• Series: EZM
• Feed Type: Overhead/Underground
• Dimensions: 67.06 in H x 19.44 in W x 9.44 in D
• Maximum Voltage: 120/240 VAC
