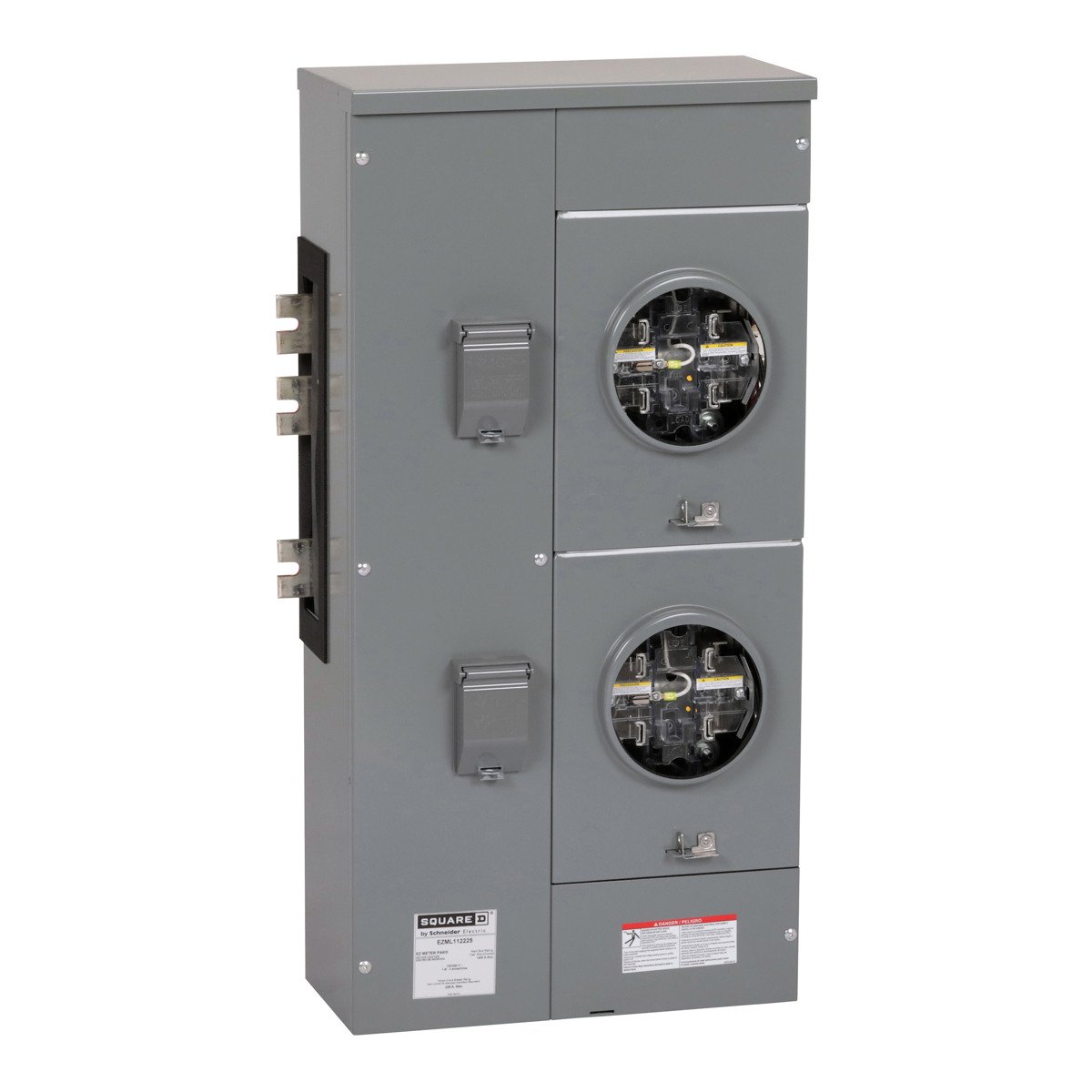

Square D EZML112225 Meter-Pak 120/240 VAC 225 Amp 1-Phase 3-Wire Ringless Meter Center Branch Unit

Product Description

The Square D EZML112225 Meter-Pak is an industry choice for multi-unit construction, providing solutions for diverse needs. EZM branch units come equipped with meter sockets and provisions for mounting tenant circuit breakers. This ringless branch unit is rated at 225A and operates at 120/240 VAC, featuring a lever bypass and a 1200 A aluminium/copper busbar. Compliant with UL standards, it has a NEMA 3R steel enclosure.

• Equipped with meter sockets for easy installation.
• Features provisions for mounting tenant circuit breakers.
• Compliant with UL standards and NEMA 3R enclosure.

Product Highlights

The Square D EZML112225 Meter-Pak offers a reliable solution for multi-unit metering applications, ensuring safety and compliance with industry standards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZML112225
• Country of Origin: Mexico

Technical Specifications

• Type: Meter-Pak
• Brand: Square D
• Depth: 240 mm
• Width: 494 mm
• Height: 992 mm
• Current: 225 Amp
• Voltage: 120/240 Volt
• Amperage: 225 Amp
• Material: Aluminium/copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Bus Rating: 1200 A
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5 with jaw release
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Line Rated Current: 225 A
• Catalog Number: EZML112225
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• Bypass Type: Lever
• Phase: 1
• Special Features: Aluminium/copper: busbar
• Standard: UL Listed
• UPC: 785901337966
• GTIN: 00785901337966
• Item Type: Meter Center Branch Unit;Ringless
• System Voltage: 120/240 VAC
• Wire: 3-Wire
• Sockets: 2 five jaw sockets
• Bypass: Lever bypass
• Busbar: 1200 A aluminium/copper
• Compliance: UL standards
• Breaker Type: QBP-TM/QDP-TM/QGP-TM/QJP-TM
• Circuit Configuration: 1-Phase 3-Wire (Incoming, Outgoing)
• Bus Material: Aluminum/Copper
• Number of Sockets: 2
• Socket Type: Plug-In
• Socket Current Rating: 225 Ampere
• Socket Cover Style: Ringless with Lever Bypass, Jaw Release
• Application: Commercial
• Approval: UL
• ECCN: EAR99
• UNSPSC: 39121102
• NEMA Rating: 3R
• No. of Jaws: 5 with jaw release
• Rated Current: 225A
• Rated Voltage: 120/240V ac
• Wiring Configuration: 3-Wire
• Positions: 2
• Meters: 2
• Gangs: 2
• Jaw: 5 Jaw w/release
• Ring Type: Ringless
