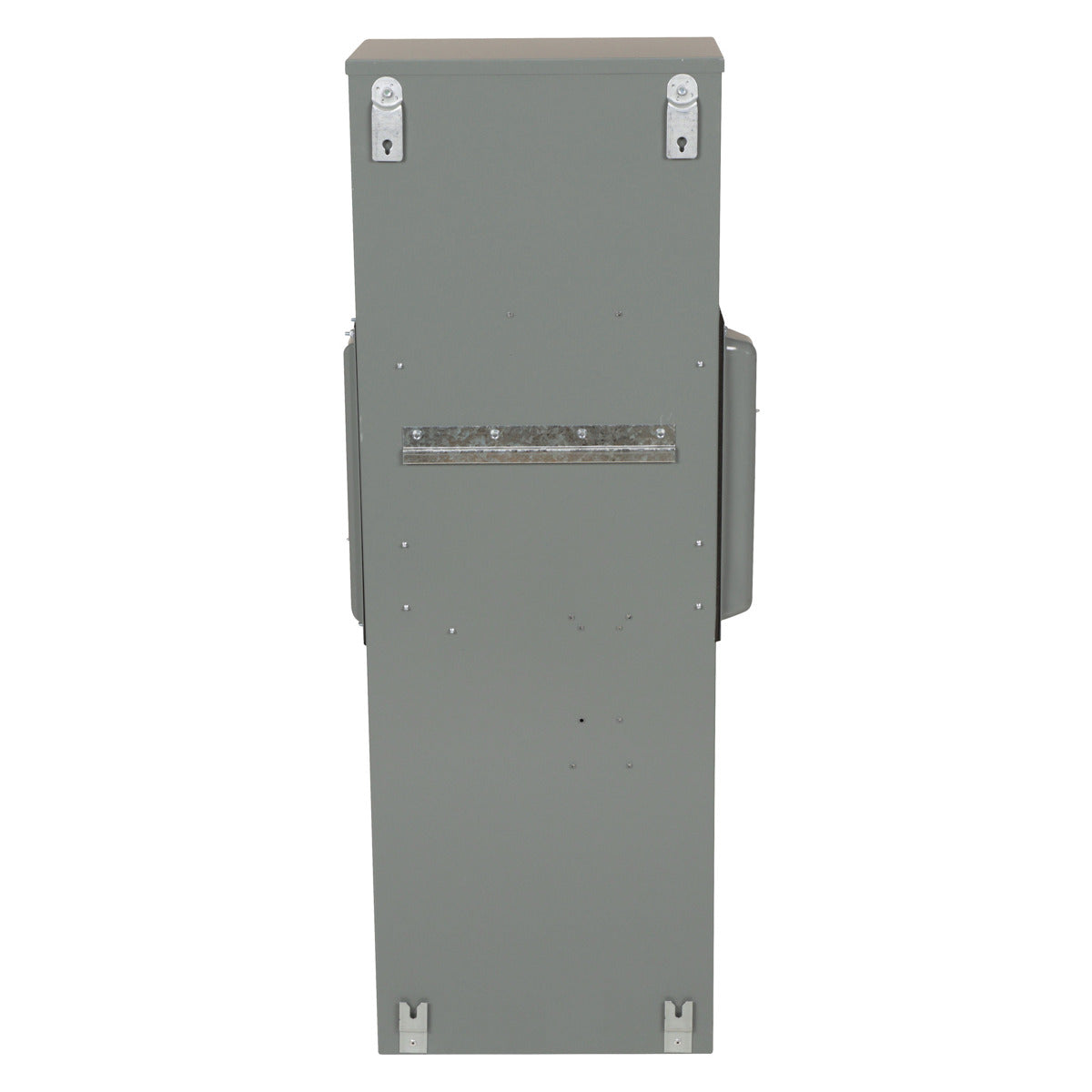

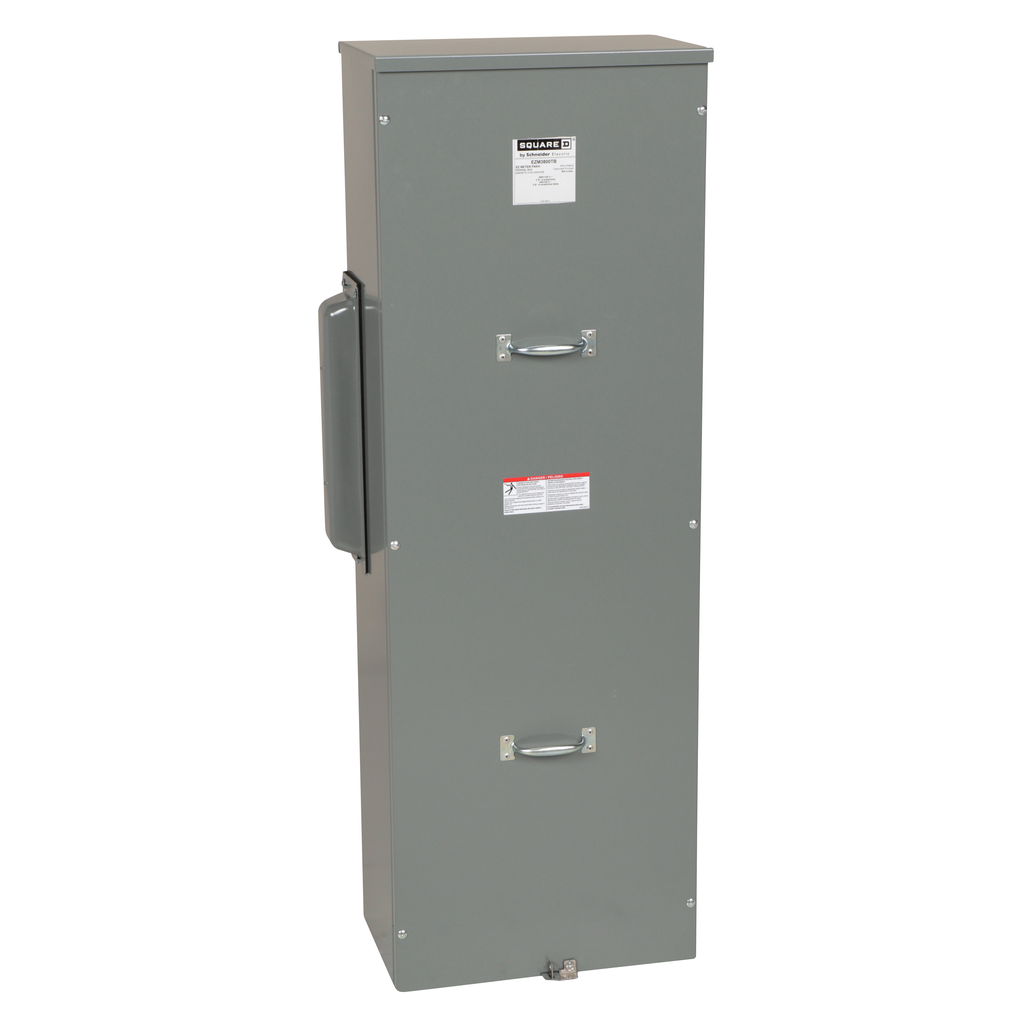

Square D EZM3800TB Main Lugs Terminal Box 800 Amp 3 Phase Aluminum Busbar

Product Description

The Square D EZM3800TB Main Lugs Terminal Box is a comprehensive solution for multi-unit construction power distribution needs. Featuring a robust 800 ampere rating, this unit is suitable for both overhead and underground power feed applications and supports a 3 phase, 4 wire configuration.

• Supports operational voltages of 208Y/120 VAC and 120/240 VAC.
• Equipped with an aluminum horizontal cross bus bar for enhanced conductivity.
• Enclosed in a NEMA 3R rated steel housing for outdoor utility ensuring durability and security.

Product Highlights

Optimized for extensive use in large residential complexes or commercial buildings, the EZM3800TB offers a reliable power distribution solution with easy installation features.

Product Information

Standard Information

• Brand: Square D
• Country of Origin: Mexico
• Warranty: 18 months

Technical Specifications

• Phase: 3 Phase in and out
• Amperage: 800 Amp
• Mounting Type: Surface
• Enclosure Material: Steel
• Bus Material: Aluminum
• Dimensions: 53.97 inches height, 18.66 inches width, 11.50 inches depth
• Enclosure Rating: NEMA 3R
