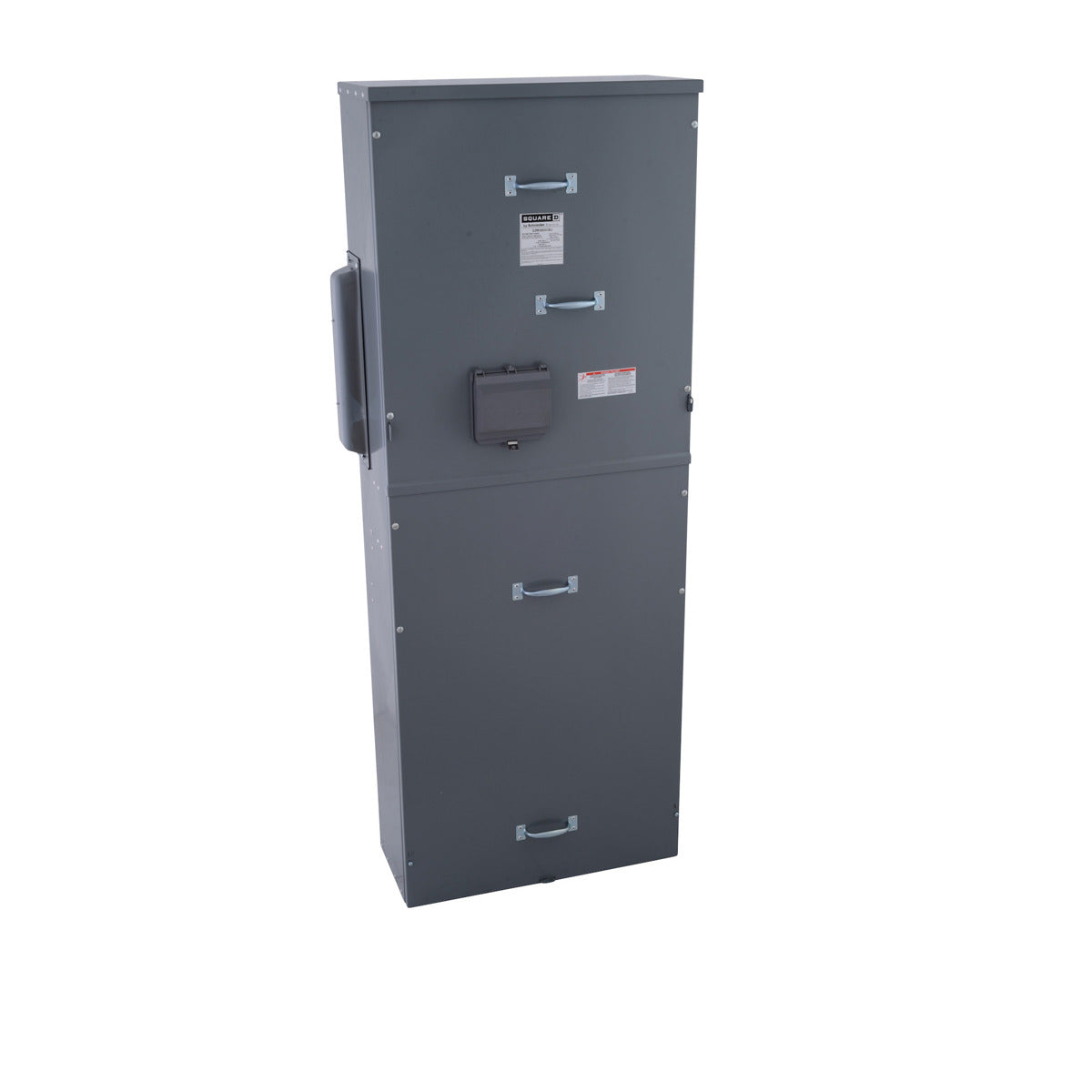

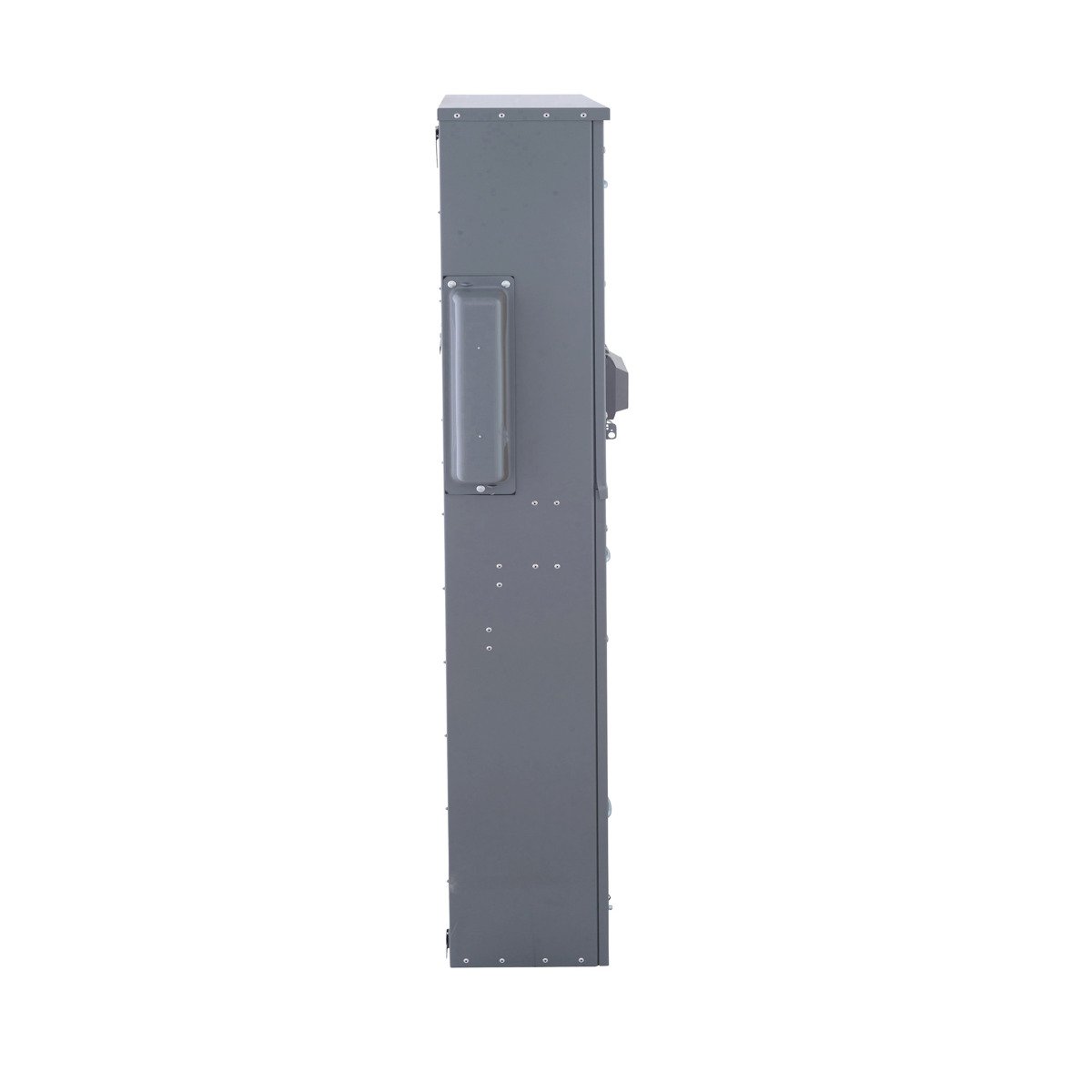

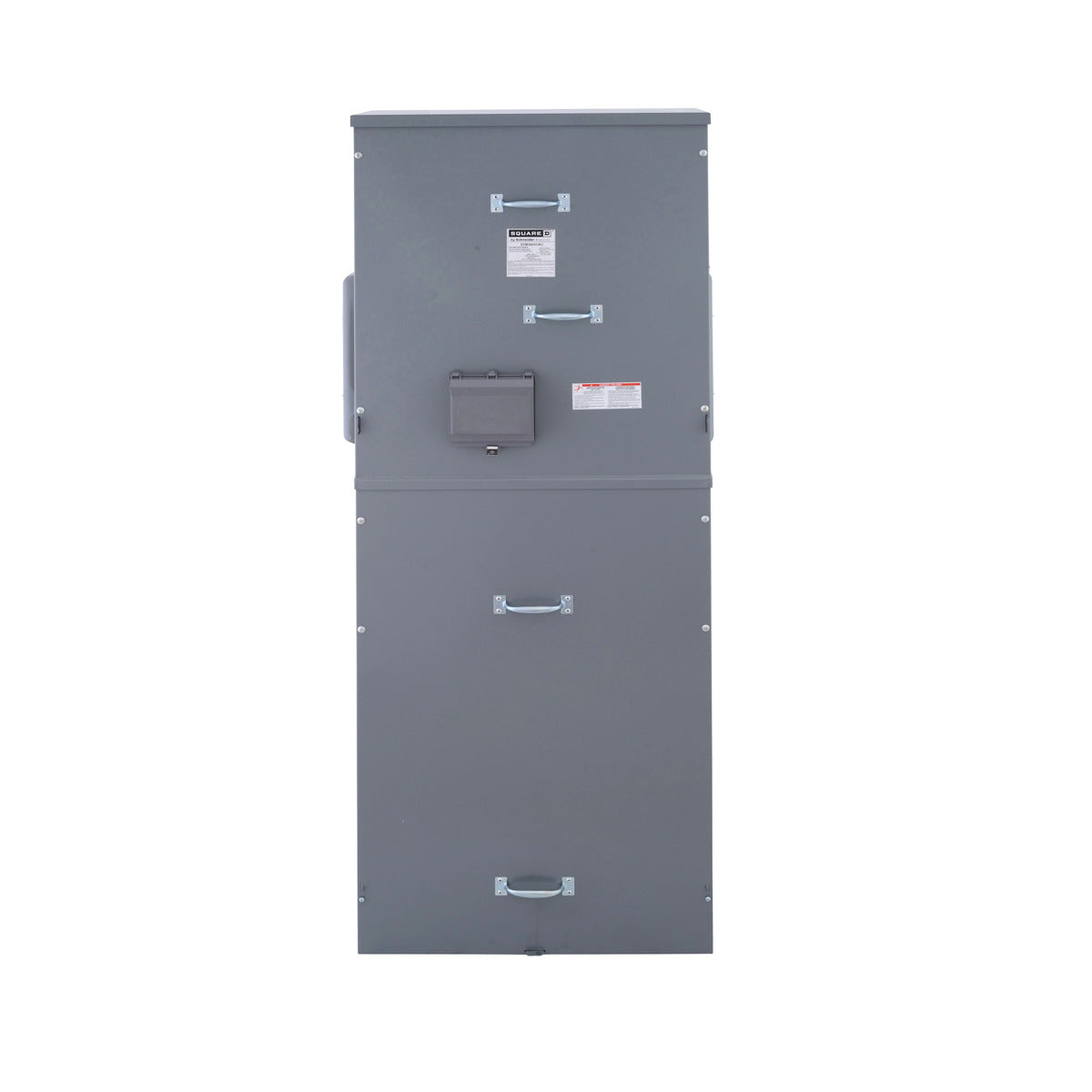

Square D EZM3800CBU 800 Amp 3-Phase Main Circuit Breaker

Product Description

The Square D EZM3800CBU is an 800 Amp 3-Phase Main Circuit Breaker designed for multi-unit construction. It features a 3P 800 A main circuit breaker with a 65 kA short circuit current rating. The unit is suitable for underground service and has a NEMA 3R surface mounting enclosure. The rated operational voltage is 208Y/120 V AC or 240/120 VAC delta.

• Designed for multi unit construction needs.
• Features a 3P 800 A main circuit breaker with a 65 kA short circuit current rating.
• NEMA 3R surface mounting enclosure.

Product Highlights

This main circuit breaker unit is UL Listed and features an aluminum bus bar.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZM3800CBU
• Country of Origin: Mexico

Technical Specifications

• Type: METER CENTER
• Brand: Square D
• Depth: 12.11 Inch
• Width: 26.19 in
• Height: 69.01 Inch
• Voltage: 120 Volt
• Amperage: 800 Amp
• Material: Aluminium: Busbar
• Enclosure: NEMA 3R
• Sub Brand: METER-PAK
• Cable Entry: UG
• Mounting Type: Surface
• Certifications: UL
• Number of Phases: 3 Phase
• Country of Origin: Mexico
• Enclosure Material: Steel
• Manufacturer: Schneider Electric
• Phase: 3
• Special Features: Main Circuit Breaker;Aluminium: busbar
• UPC: 785901305064
• GTIN: 00785901305064
• Item Type: Meter center main unit
• Circuit Configuration: 3-Phase 4-Wire
• Voltage Rating: 208 VAC Star/120 VAC, 120/240 VAC Delta
• Interrupting Rating: 65000 Ampere (Symmetrical)
• Enclosure Type: NEMA 3R, Indoor/Rainproof
• Feed Location: Underground
• Applicable Standard: EUSERC
• Busbar Material: Aluminum
• Includes: Aluminum Horizontal Cross Bus Bar
• Amperage Rating: 800 A
• Connection Type: Lug
• Interrupt Rating: 65 kA
• Number of Poles: 3
