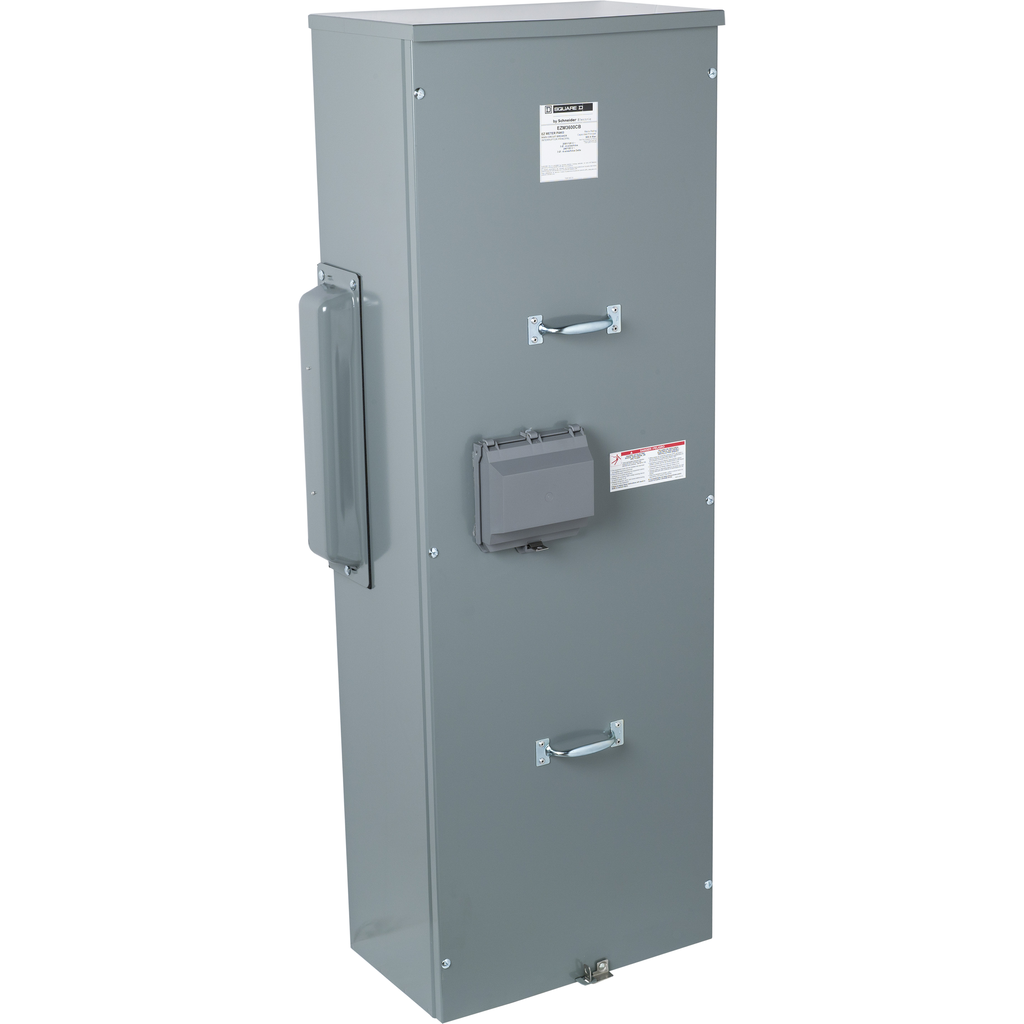

Square D EZM3600CB 120/240 VAC 600 Amp 3-Phase 4-Wire Steel Overhead/Underground Feed Meter Center Main Unit

Product Description

The Square D EZM3600CB is a 600 Amp, 120/240 VAC meter center main unit made by Schneider Electric. This device is designed for overhead or underground feed applications. It has a bus bar rating of 1200 Amps and is suitable for three-phase, four-wire setups. Installation is quick and easy, with no need for disassembly or adjustment due to external mounting channels.

• 600 Amp main breaker for overhead or underground feed
• Bus bar rated at 1200 Amp
• Suitable for three-phase, four-wire applications

Product Highlights

The EZ Meter-Pak devices provide essential solutions for multi-unit construction needs within power distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EZM3600CB
• Voltage: 120 Volt
• Amperage: 600 Amp
• Material: Aluminium: Busbar
• Enclosure: NEMA 3R, Steel
• Depth: 11.5 Inch
• Width: 18.66 Inch
• Height: 53.97 Inch
