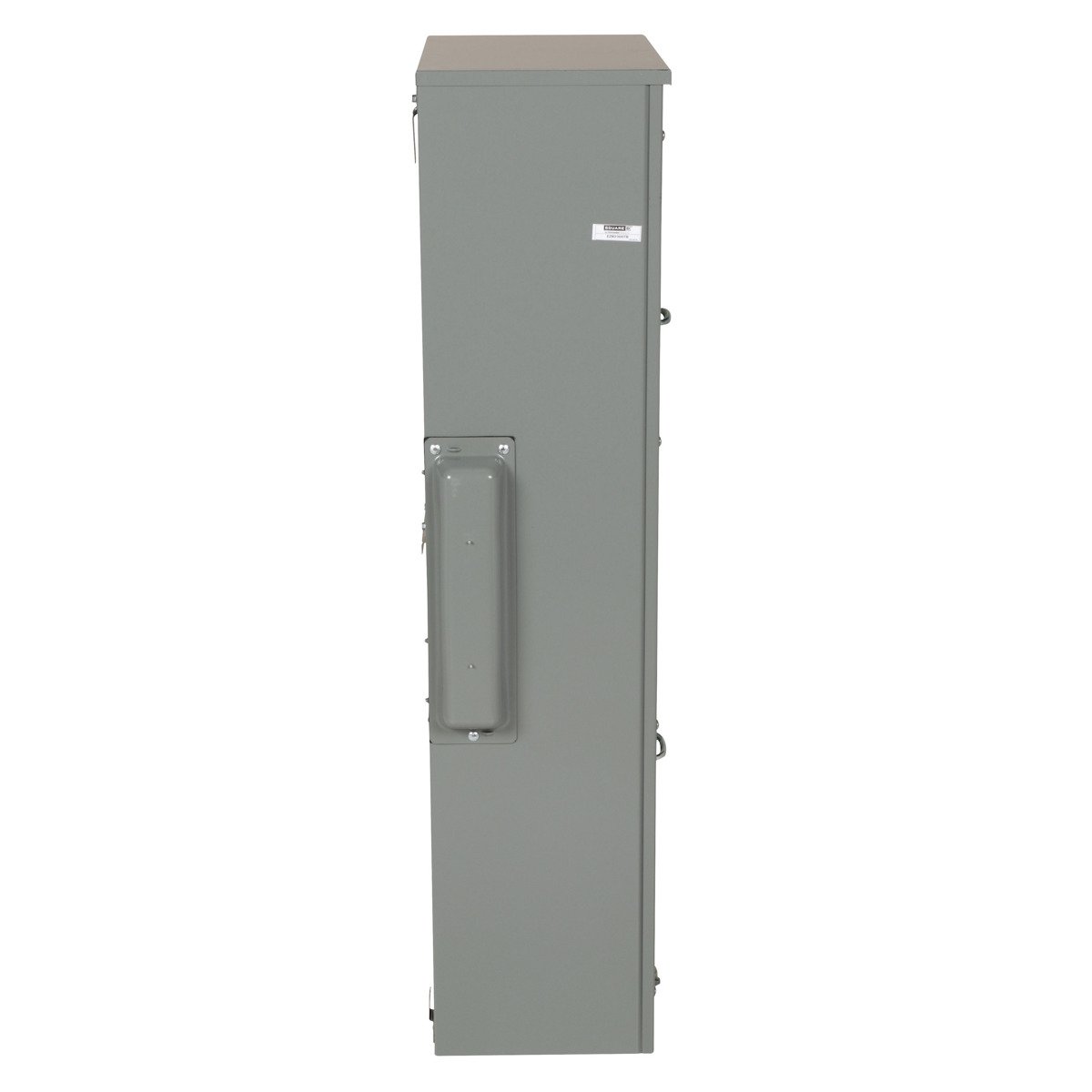

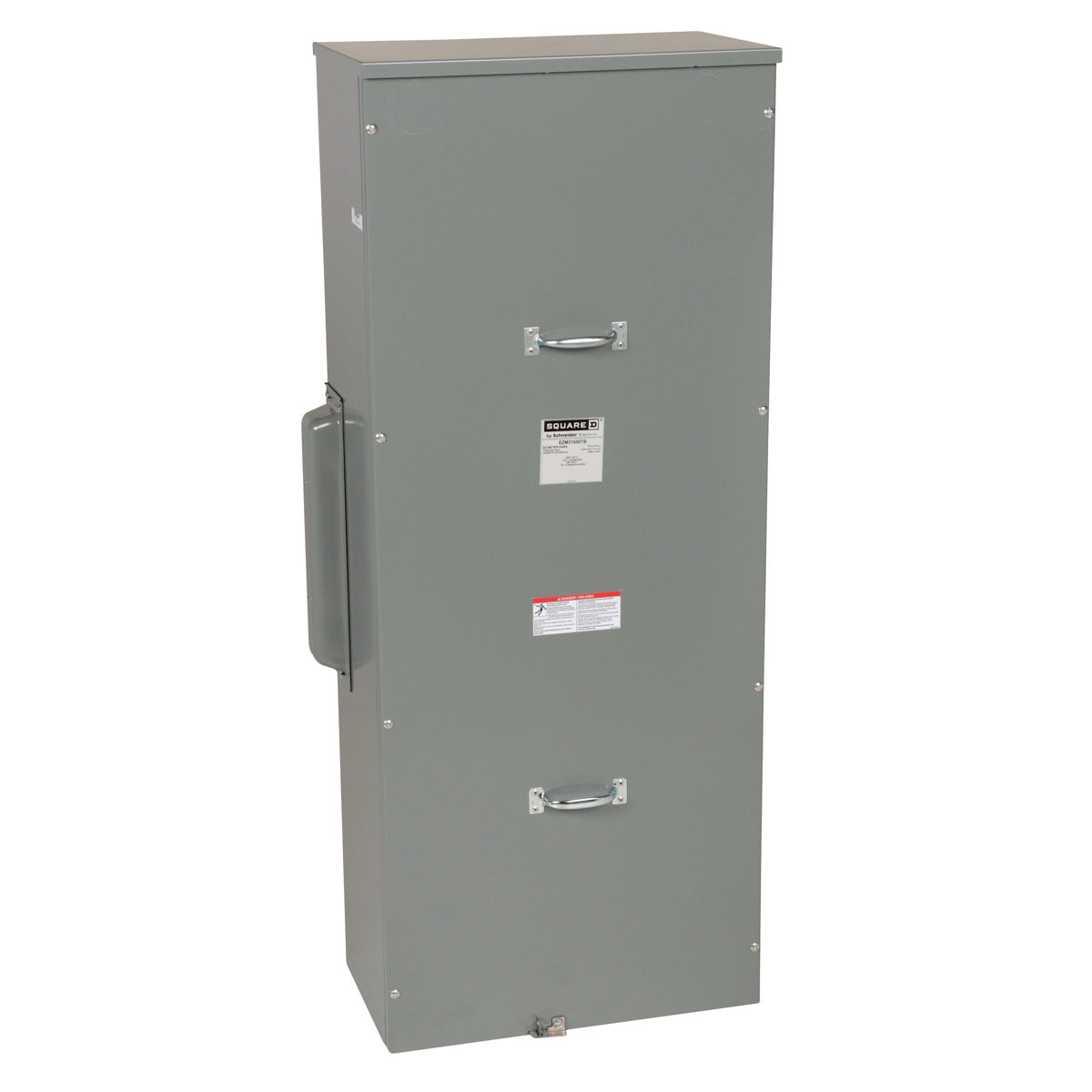

Square D EZM31600TB Meter Center Terminal Box 1600 Amp

Product Description

The Square D EZM31600TB meter center main unit provides a solution for multi unit construction. This EZ Meter-Pak main lugs terminal box can be fed from an overhead or underground service and is designed for 3 phase 4W in and out. The main is rated 1600 A and has an aluminum horizontal cross bus bar. The unit is UL Listed.

• Suitable for multi unit construction needs
• Can be fed from an overhead or underground service
• NEMA 3R surface mounting enclosure

Product Highlights

The EZM31600TB is a reliable and versatile meter center for multi-unit residential and commercial construction. It offers a compact footprint and easy installation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZM31600TB
• Country of Origin: Mexico

Technical Specifications

• Type: Meter center main unit
• Brand: Square D
• Depth: 13 Inch
• Width: 22.48 in
• Height: 55.09 Inch
• Amperage: 1600 Amp
• Material: Aluminium/copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: EZ METER-PAK
• Cable Entry: UG-OH
• Mounting Type: Surface
• Certifications: UL
• Number of Phases: 3 Phase
• Enclosure Material: Steel
• Catalog Number: EZM31600TB
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• Special Features: Main Lugs;Aluminium/copper: busbar
• UPC: 785901515944
• GTIN: 00785901515944
• Item Type: Meter center main unit
• Phase: 3
• Enclosure Type: NEMA 3R
• Feed Type: Overhead/Underground
• Terminal Type: Lug
• Voltage Rating: 120 to 208Y VAC/240 to 120 Delta VAC, 120 to 208Y/240 to 120 Delta V AC, 120/208Y VAC, 240/120 Delta VAC
• Wire Size: 6 AWG to 300 kcmil, 3/0 AWG to 600 kcmil
• Bus Rated Current: 1200 A
• Wiring Configuration: 4-wire
• Electrical Connection: lugs 1 AWG 6...300 kcmil aluminium/copper) ground || lugs 6 AWG 3/0...600 kcmil aluminium/copper) line || lugs 6 AWG 3/0...600 kcmil aluminium/copper) neutral
• Enclosure NEMA Rating: NEMA 3R
• Main Circuit Breaker or Main Lug: Main Lugs
• Main Rated Current: 1600 A
