Square D EZM31200TBU Main Lugs Unit, EZ - 1200 Amp

Product Description

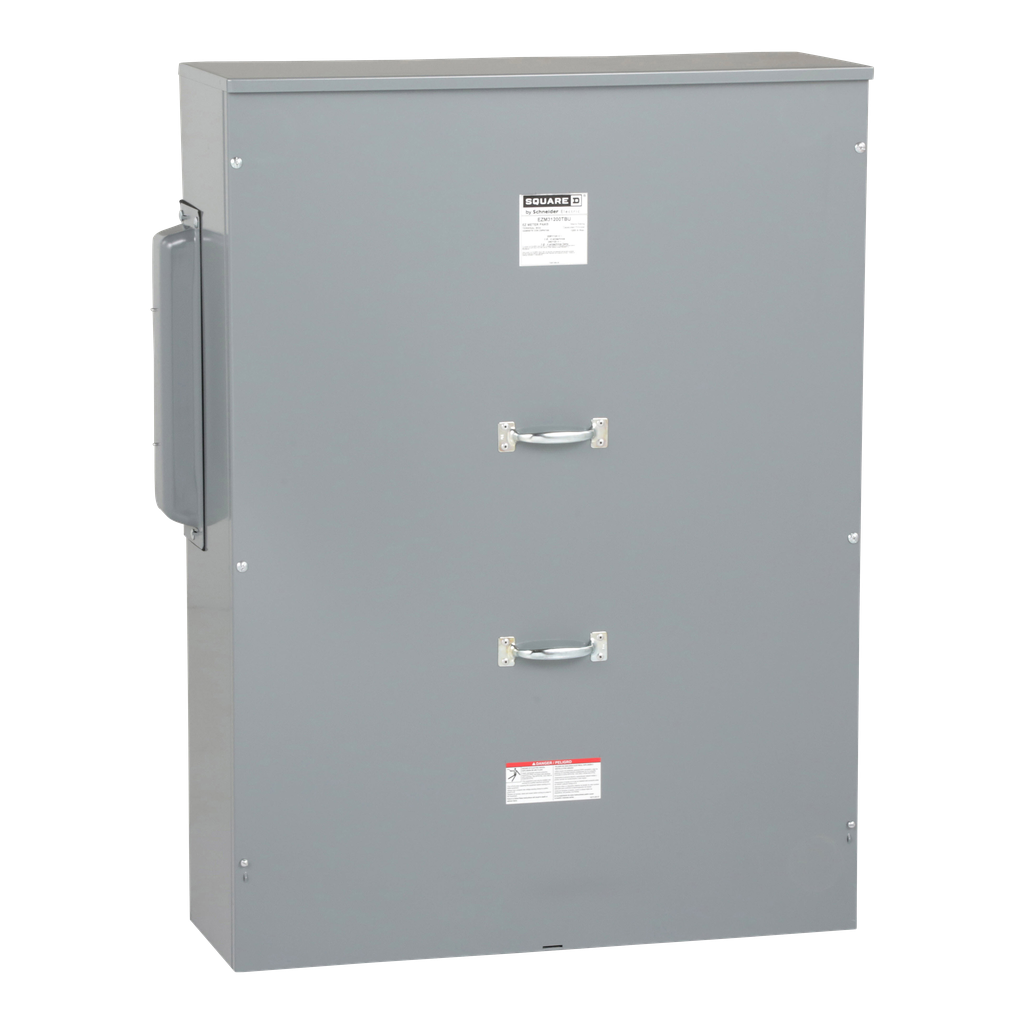

Square D EZM31200TBU is a main lugs unit designed for metering configurations. This terminal box connects three phases in, three phases out with a four wire setup. It supports voltages of 208Y/120VAC or 240/120VAC delta with a maximum current rating of 1200A. The design includes conduit entrances located at the bottom, making it suitable for underground service feeds.

• Three phases in, three phases out configuration
• Rated for 208Y/120VAC or 240/120VAC
• Compliant with UL standards

Product Highlights

The unit features four horizontal busbars rated for 1200A. Connections are simple, thanks to Visi-Tite joint nuts that eliminate the need for torque readings. This system is appropriate for usage on either the line or load side of service equipment.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EZM31200TBU
• Voltage: 120 Volt
• Amperage: 1200 Amp

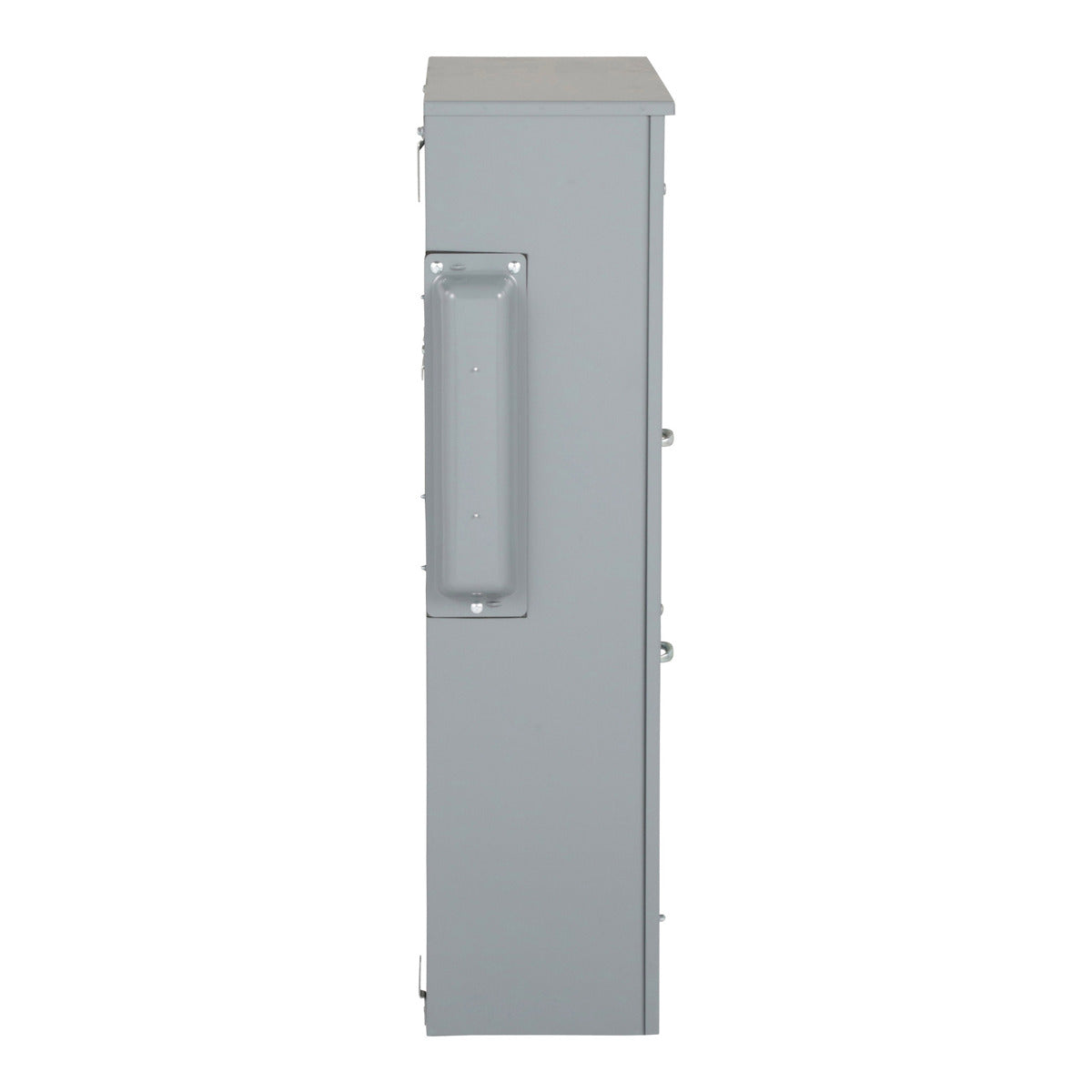

• Enclosure: Steel, NEMA 3R rated
• Dimensions: 44.71 inches high, 33.16 inches wide, 11.68 inches deep
• Phase: 3 Phase
• Mounting Type: Surface
• Warranty Length: 18 months
