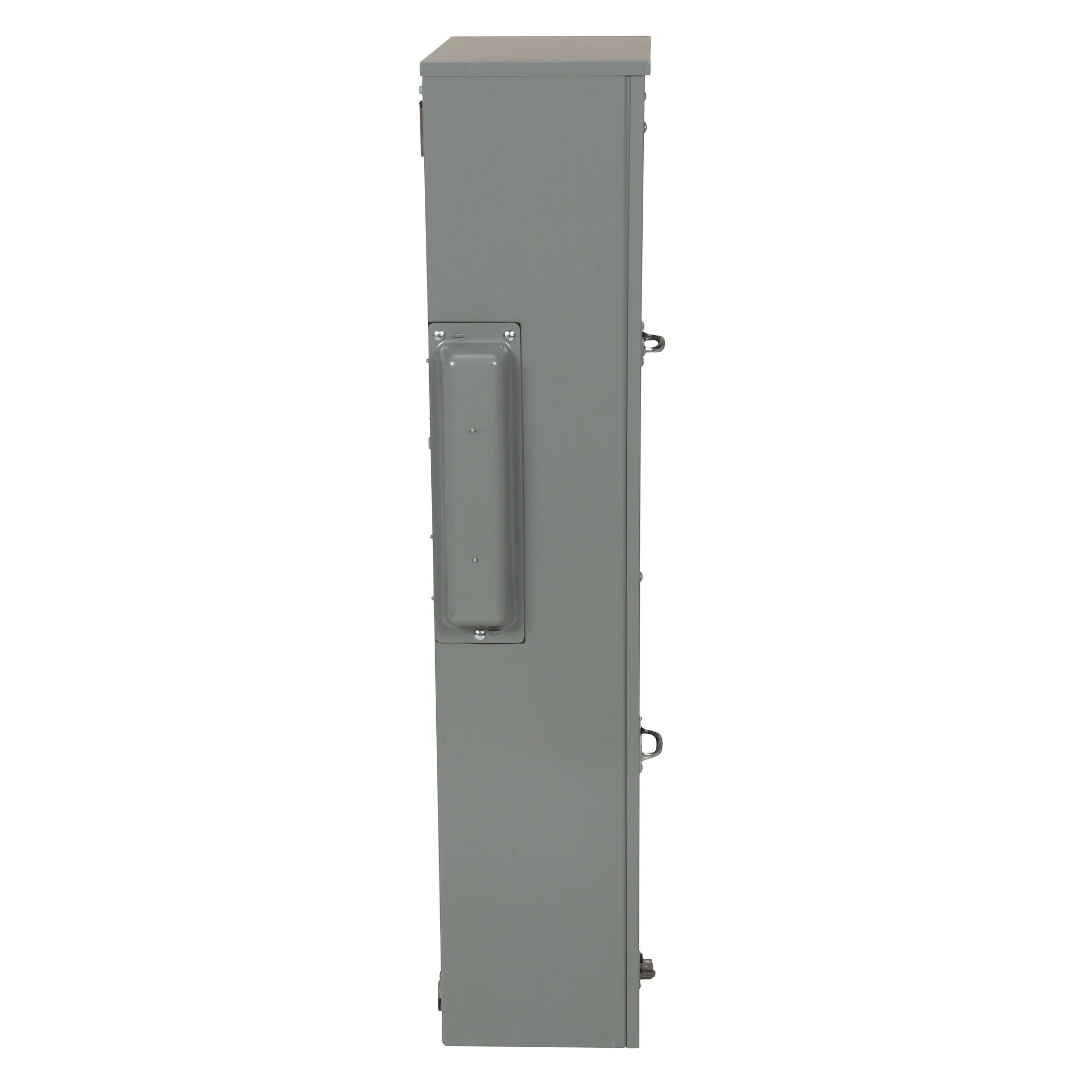

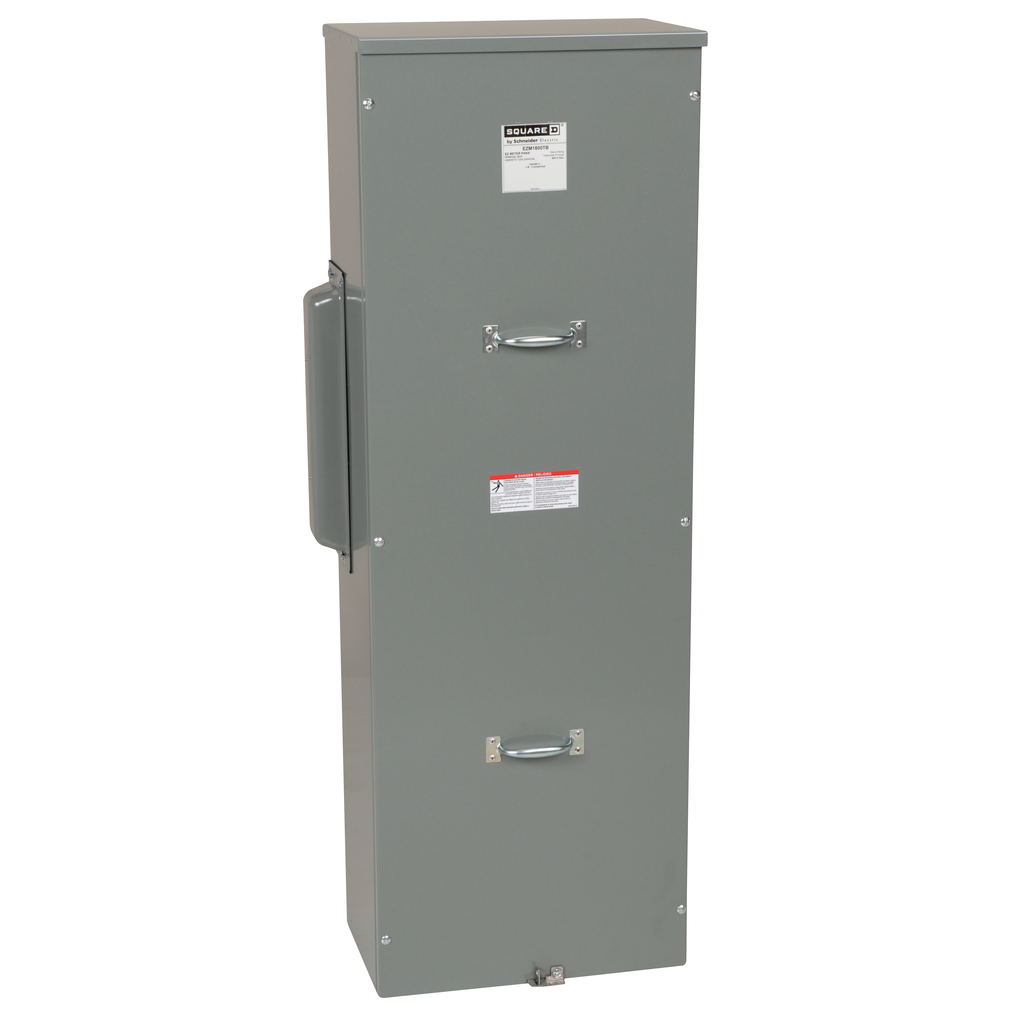

Square D EZM1800TB Center Main Unit 800 Amp 120/240V 1 Phase NEMA 3R

Product Description

The Square D EZM1800TB is designed for reliable power distribution in multi-unit construction. It functions as a meter center terminal box that accepts overhead or underground feed services. This unit has a maximum rating of eight hundred amps and is suitable for a single-phase, three-wire setup.

• Rated operational voltage of one hundred twenty/two hundred forty volts
• Accommodates four wires from three-zero to five hundred kcmil
• Constructed with a NEMA 3R rated enclosure for surface mounting

Product Highlights

This terminal box integrates an aluminum horizontal cross bus bar and UL listing for safety. Its robust design and functionality make it ideal for various electrical applications.

Product Information

Standard Information

• Catalog Number: EZM1800TB
• Brand: Square D

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 800 Amp
• Material: Aluminum Busbar
• Enclosure: Steel
• Height: 53.97 inches
• Width: 18.66 inches
• Depth: 11.5 inches
• Phase: 1
