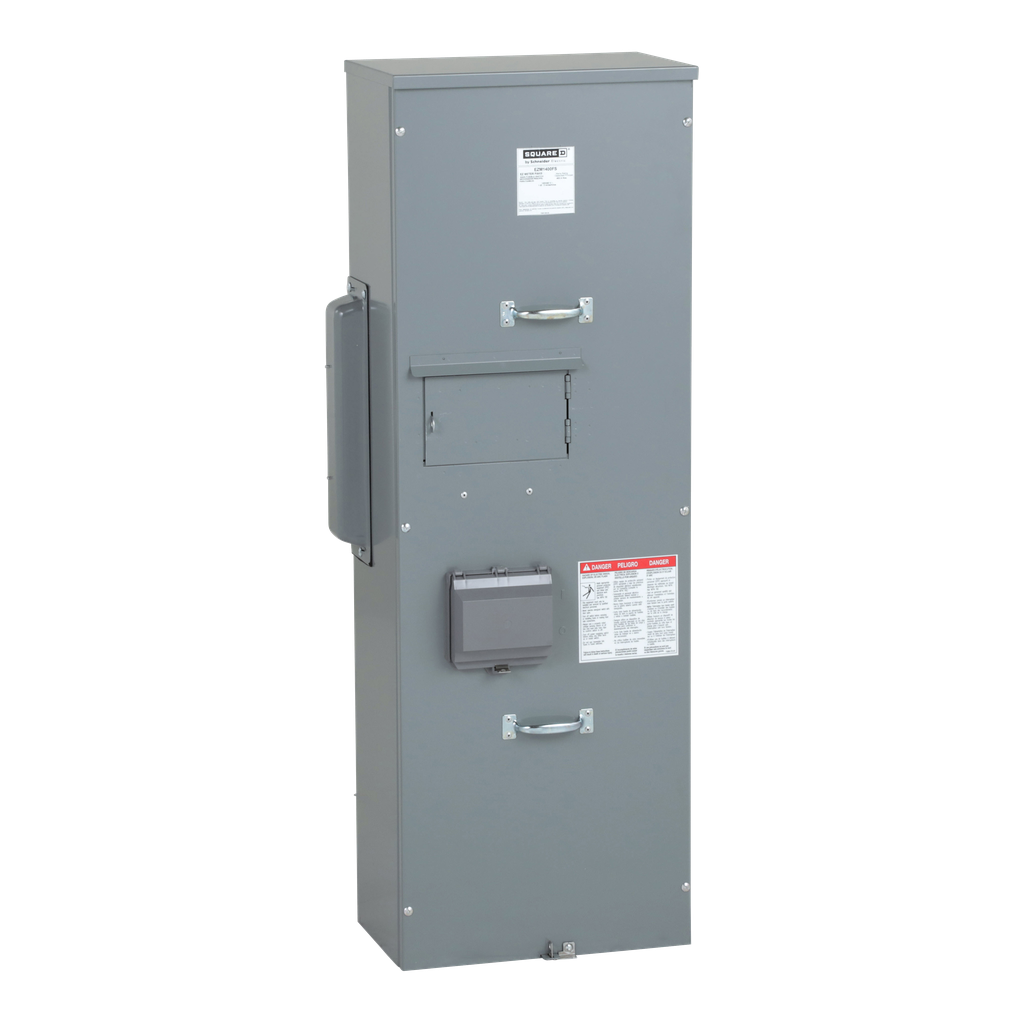

Square D EZM1400FS 120/240 VAC 400 Amp 1-Phase Steel Meter Center Fusible Switch

Product Description

Square D EZM1400FS is a main fusible switch designed for power distribution. This device supports a main disconnect point suitable for service applications. It operates at 120/240 VAC with a capacity of four hundred amps in a one-phase configuration. It is adaptable for both underground and overhead service feeds. The enclosure is made of steel and meets NEMA 3R standards, ensuring durability and reliability.

• Rated for 120/240 VAC and 400 Amps
• Compliant with UL standards
• Accepts Class T 300 VAC fuses (sold separately)

Product Highlights

The EZM1400FS is a robust solution for managing power distribution in residential or commercial settings. It features three horizontal busbars rated for four hundred amps, which simplifies installation by using Visi-Tite joint nuts for connections, removing the need for torque readings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EZM1400FS
• Voltage: 120/240 Volt
• Amperage: 400 Amp
• Enclosure Material: Steel
• Mounting Type: Surface
• Country of Origin: United States
• Warranty Length: 18 months
• Item Type: Meter center main unit
