Square D EZM115125 120/240 VAC 125 Amp 1-Phase 3-Wire Ring Meter Center Branch Unit

Product Description

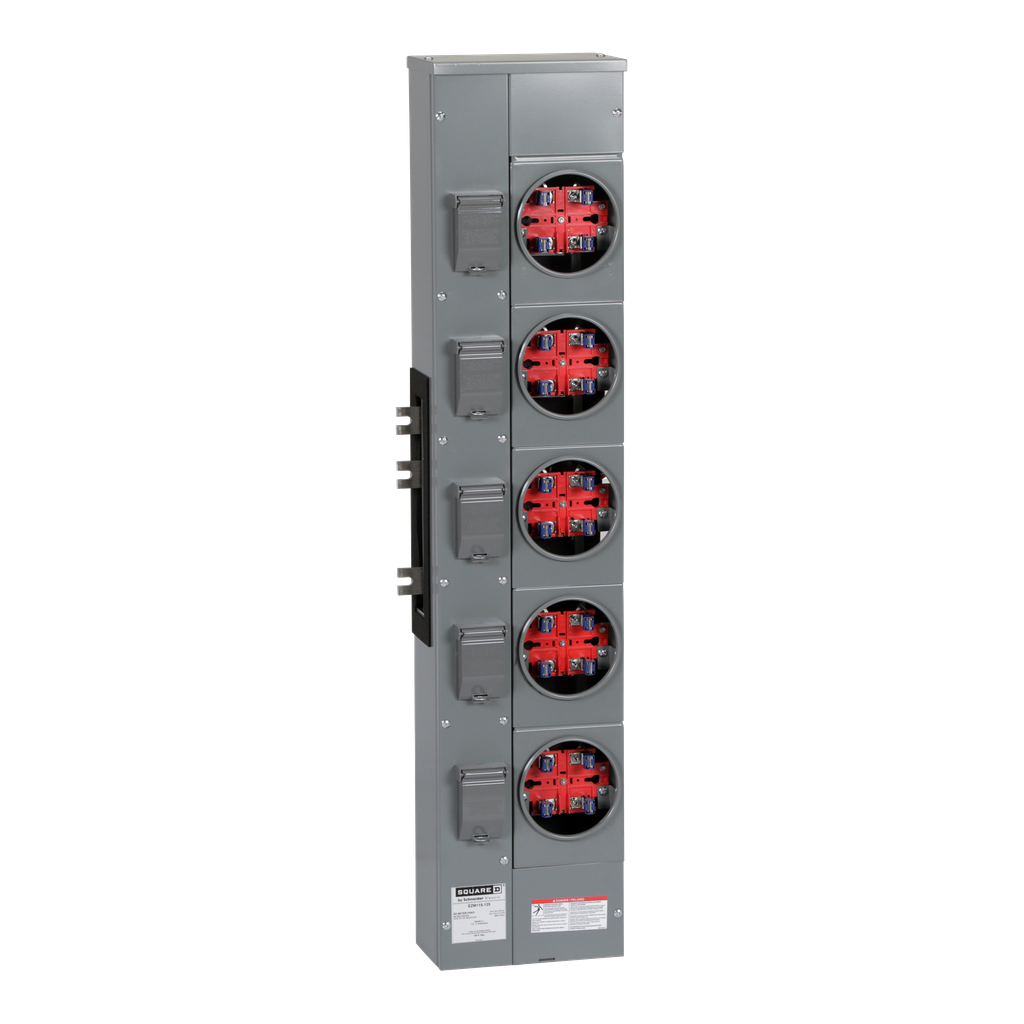

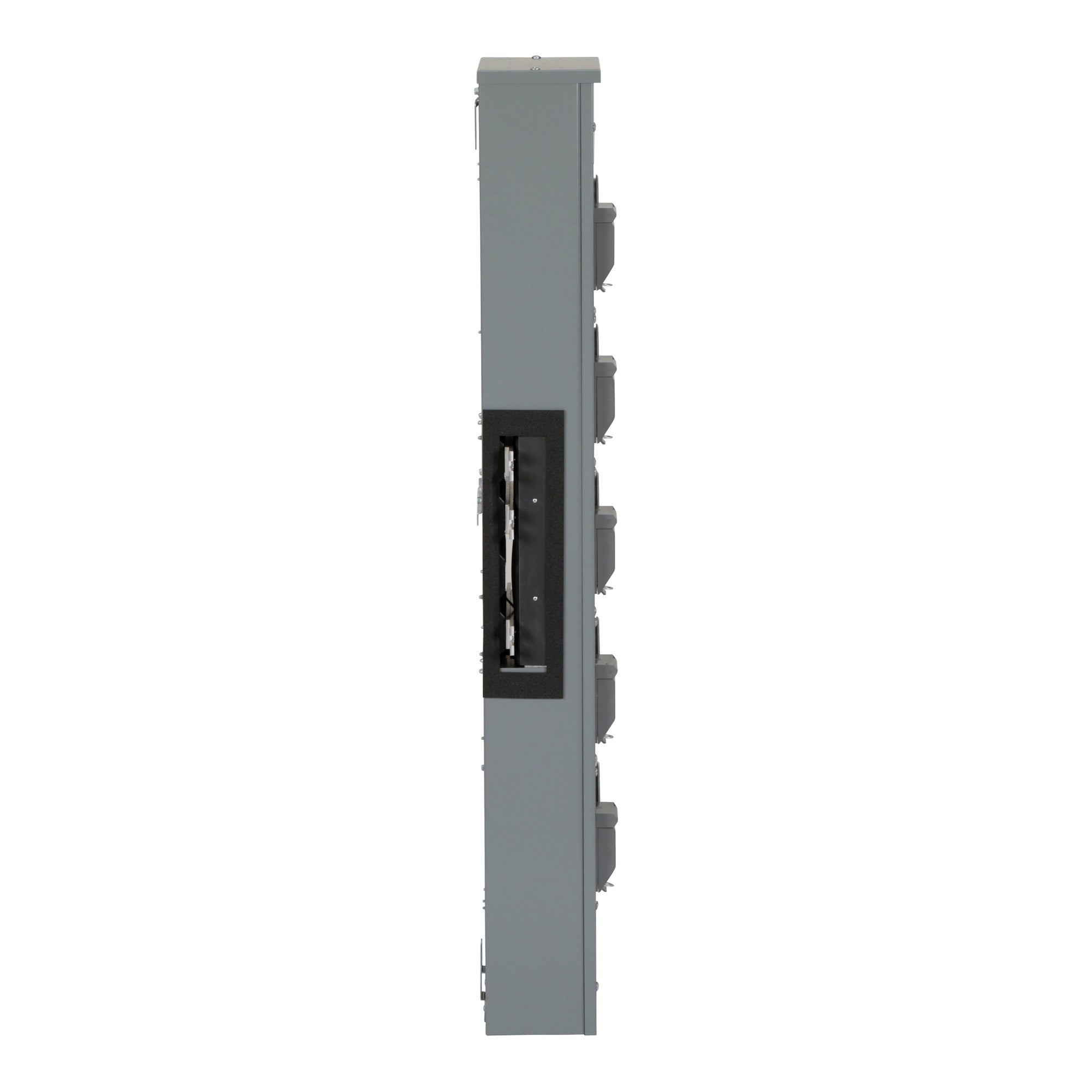

Square D EZM115125 is a meter center branch unit designed for effective power distribution. It operates at 120/240 VAC and is rated for 125 amps. This unit includes 5 jaw sockets, making it ideal for multi-unit constructions where tenant circuit breakers can be mounted easily. The EZ Meter-Pak system meets various demands with configurations offering main ratings from 225 to 2000 amps depending on specific needs.

• Rated for 125 amps and 120/240 voltage
• Includes five 4-jaw sockets
• Constructed with NEMA 3R rated steel enclosure

Product Highlights

The EZM branch units are reliable and compliant with UL standards, ensuring safety and durability for both residential and commercial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EZM115125
• Current Rating: 125 Amp
• Voltage: 120/240 Volt
• Bus Rating: 800 A
• Material: Aluminum busbar
• Dimensions: Width - 311 mm, Depth - 180 mm, Height - 1451 mm
• Enclosure Material: Steel
• Phases: 1 Phase
• Warranty: 18 months
