Square D EZM112225 Ring Meter Center Branch Unit 225 Amp 120/240 VAC

Product Description

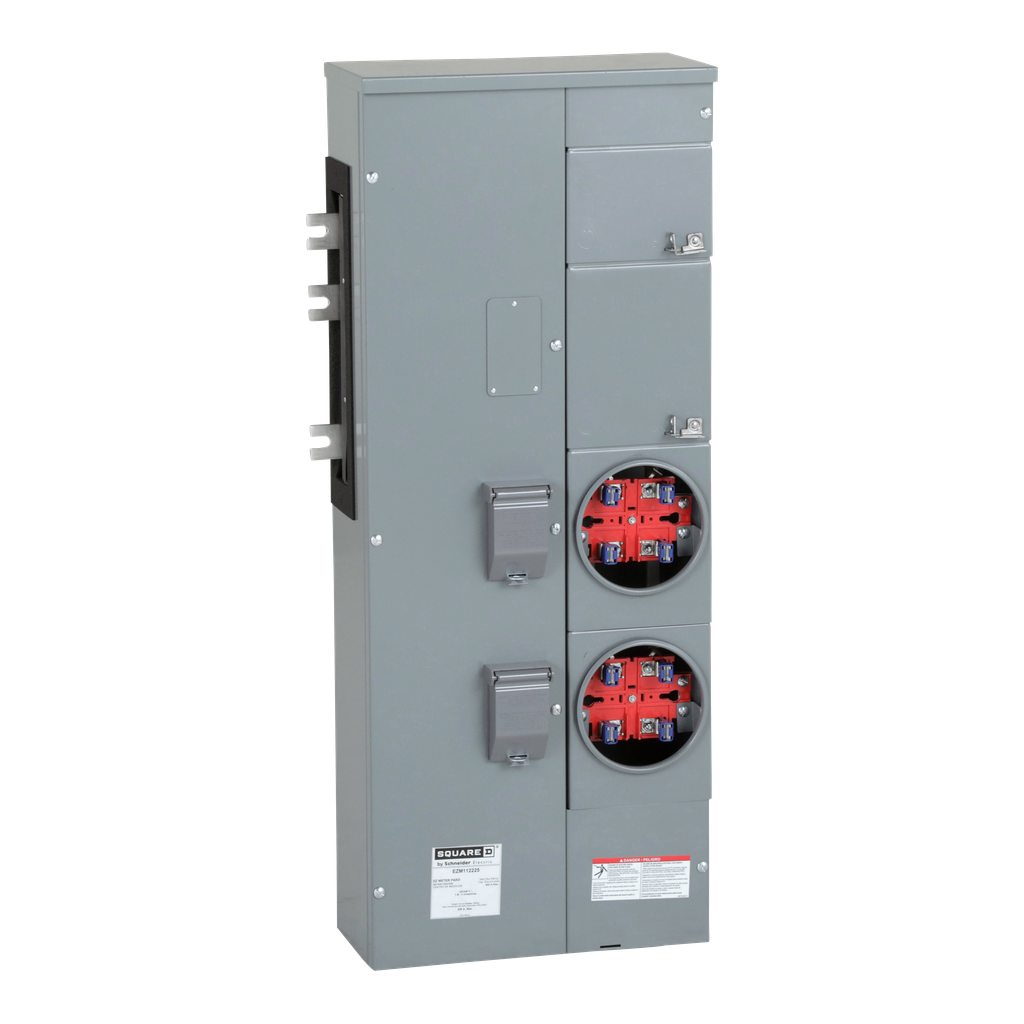

The Square D EZM112225 is a robust ring meter center branch unit with a rating of two hundred twenty-five Amps and a voltage of one hundred twenty to two hundred forty VAC. It features two four-jaw sockets for efficient power distribution. The product includes an eight hundred Amp aluminum busbar and complies with UL standards, ensuring reliability in residential and commercial applications.

• Rated for two hundred twenty-five Amps
• Compliant with UL standards
• Features two four-jaw sockets

Product Highlights

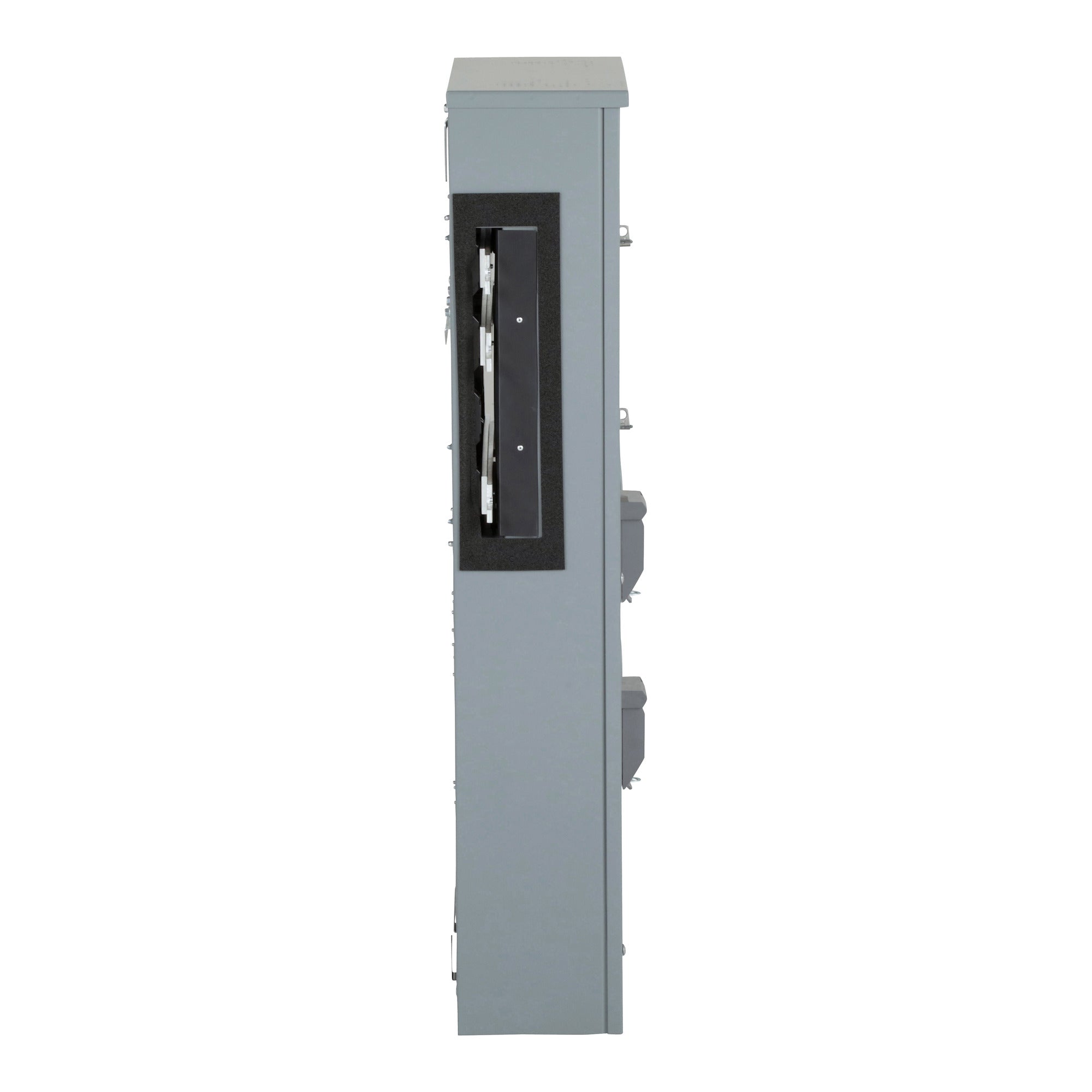

This branch unit is designed for mounting tenant circuit breakers and has a steel enclosure rated NEMA 3R, suitable for outdoor use. Its dimensions are forty-three point four one inches in height, seventeen point three eight inches in width, and eight point zero nine inches in depth. The unit has no bypass and is ideal for various multi-unit construction needs.

Product Information

Standard Information

• Catalog Number: EZM112225
• Brand: Square D

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 225 Amp
• Material: Aluminum Busbar
• Enclosure: Steel
• Mounting Type: Surface
• Certifications: UL
• Warranty Length: 18 months
• Country of Origin: Mexico
