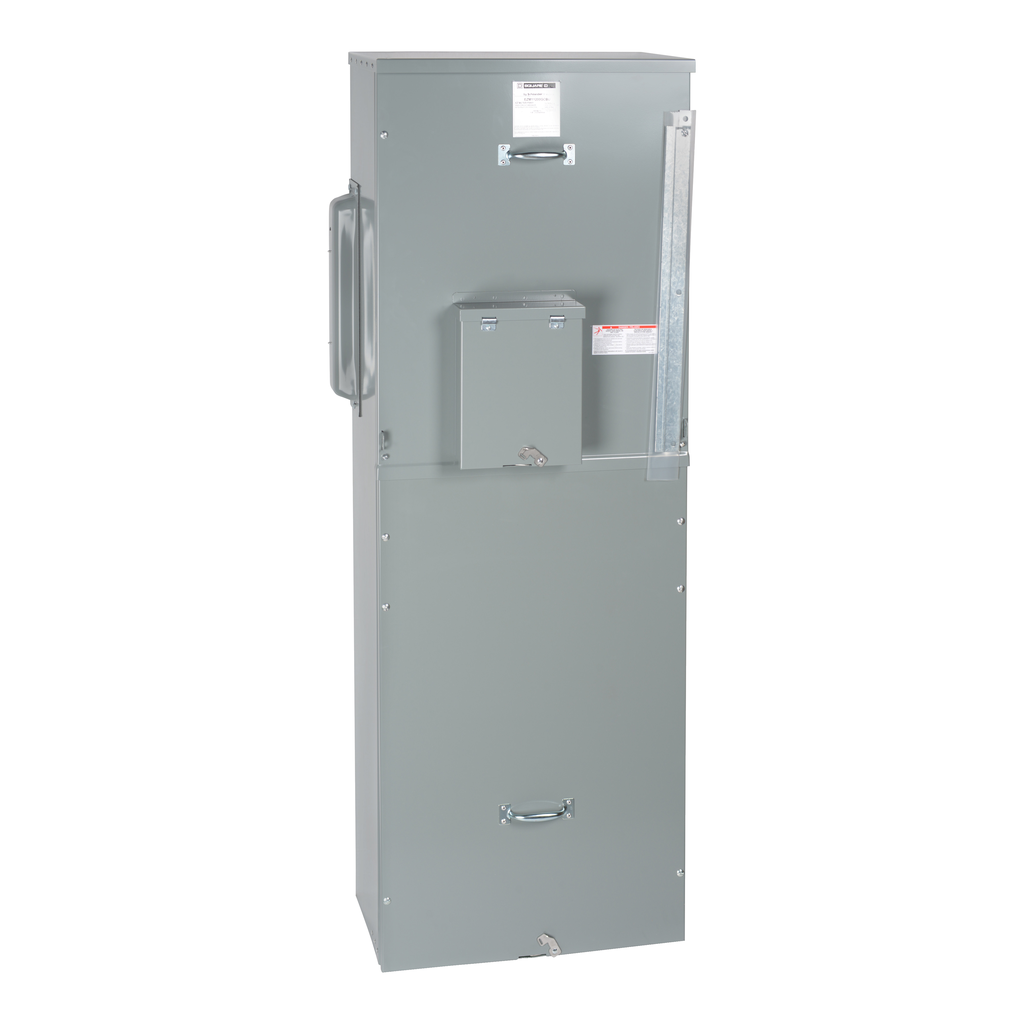

Square D EZM11200GCBU 120/240 VAC 1200 Amp 65 kA 1-Phase 3-Wire Steel Overhead Feed Meter Center Circuit Breaker

Product Description

The Square D EZM11200GCBU is a main circuit breaker designed for service equipment. This unit operates at 120/240 VAC and has a current rating of 1200 Amps. It is a 1-phase, 3-wire configuration and is ideal for various metering applications.

• Rated for 1200 Amps and 120/240 Volts
• Compliant with UL and features a NEMA 3R rated enclosure
• Includes three-pole PowerPact P circuit breaker for reliable operation

Product Highlights

The EZM11200GCBU serves as both a circuit protector and a disconnect point. Its compartment features a closing plate and three horizontal busbars rated for 1200 Amps. With Visi-Tite joint nuts, connections are secure without the need for torque readings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: EZM11200GCBU
• Voltage: 120/240 Volt
• Amperage: 1200 Amp
• Material: Aluminium busbar
• Enclosure: Steel, NEMA 3R
• Mounting Type: Surface
• Country of Origin: Mexico
• Warranty Length: 18 months
