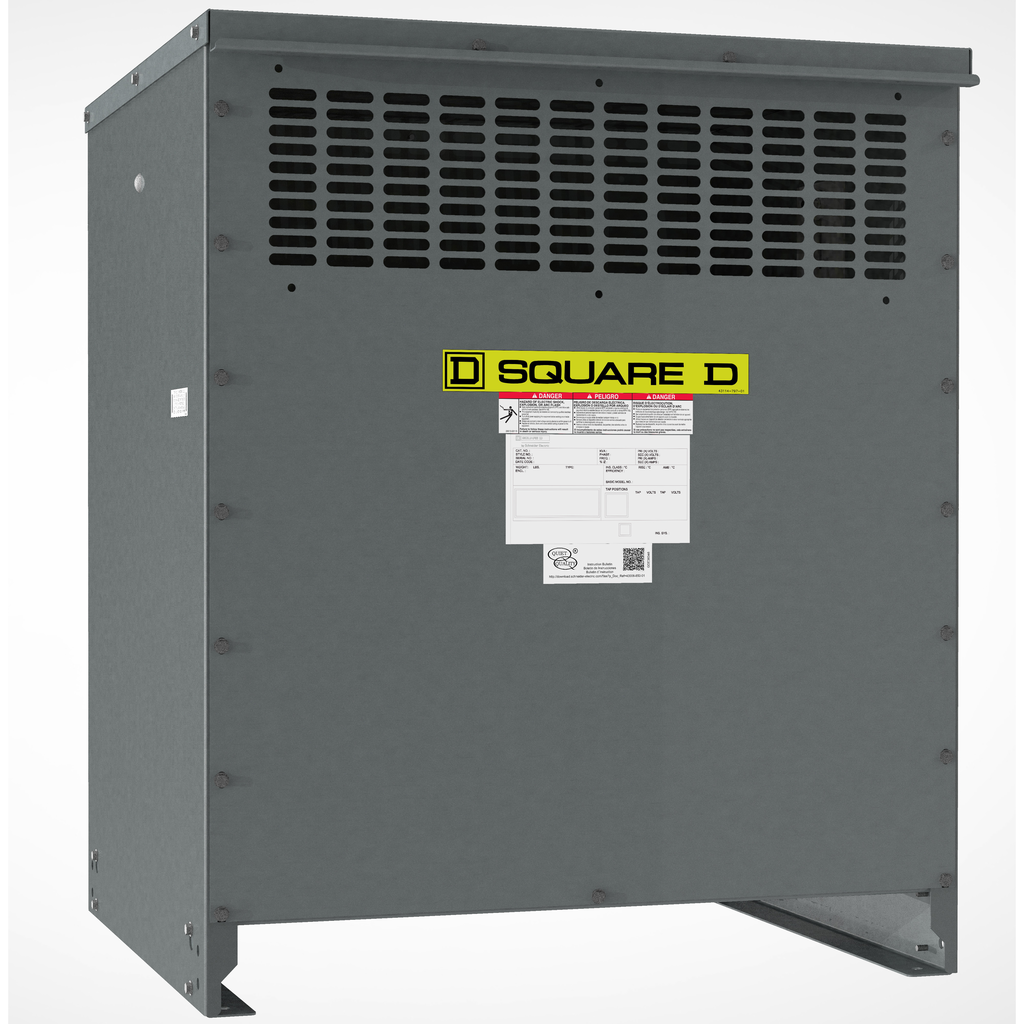

Square D EXN112T6HCT Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 240V delta secondary

Product Description

The Square D EXN112T6HCT transformer is a three-phase low voltage dry type distribution transformer. It meets the DOE energy conservation and NRCan energy efficiency standards. This unit is rated for one hundred twelve point five kVA with a four hundred eighty volt primary and two hundred forty/one hundred twenty volt secondary.

• Aluminum windings with a two hundred twenty insulation for temperature rise of one hundred fifty degrees Celsius.
• Natural air cooling with front exhaust vents.
• Shipping as Type 2 for indoors, convertible to Type 3R for outdoor use.

Product Highlights

This transformer is optimized for high efficiency and designed for compatibility with Square D equipment.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EXN112T6HCT
• Primary Voltage: 480 V
• Secondary Voltage: 240/120 V
• Number of Phases: 3 Phase
• Temperature Rise: 150 degrees C
• Efficiency: 98.74% at 35% load
• Net Weight: 331.12 kg
• Height: 953 mm
• Width: 795 mm
• Depth: 722 mm
