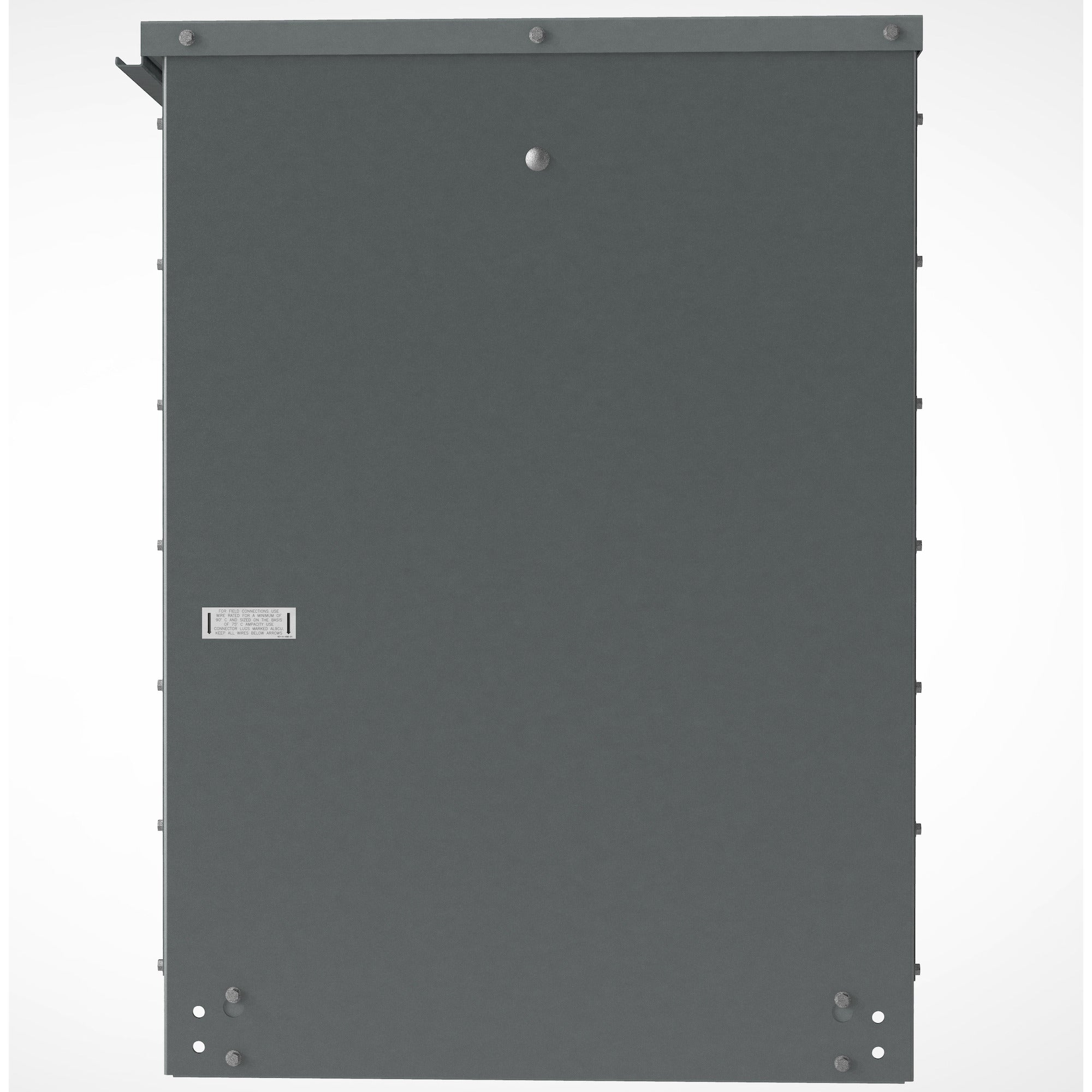

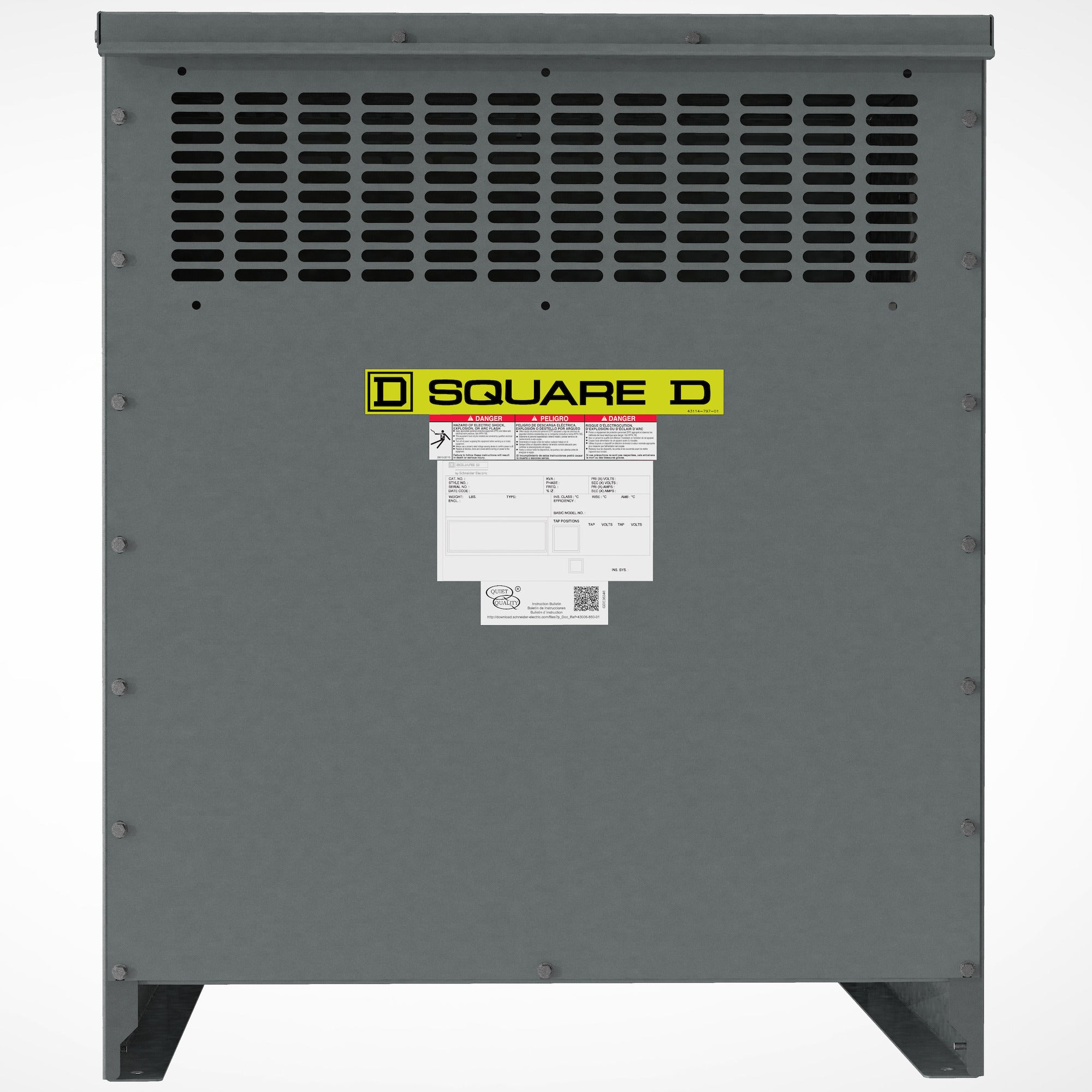

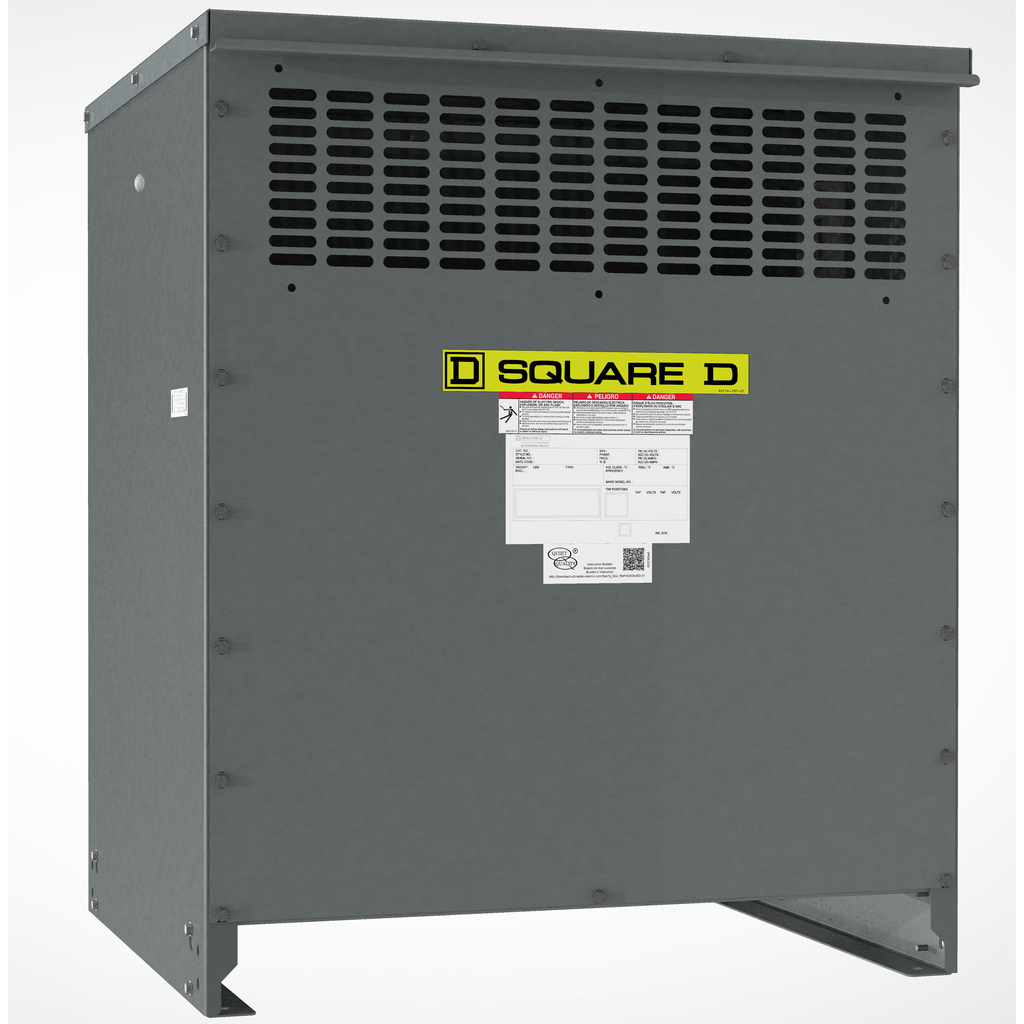

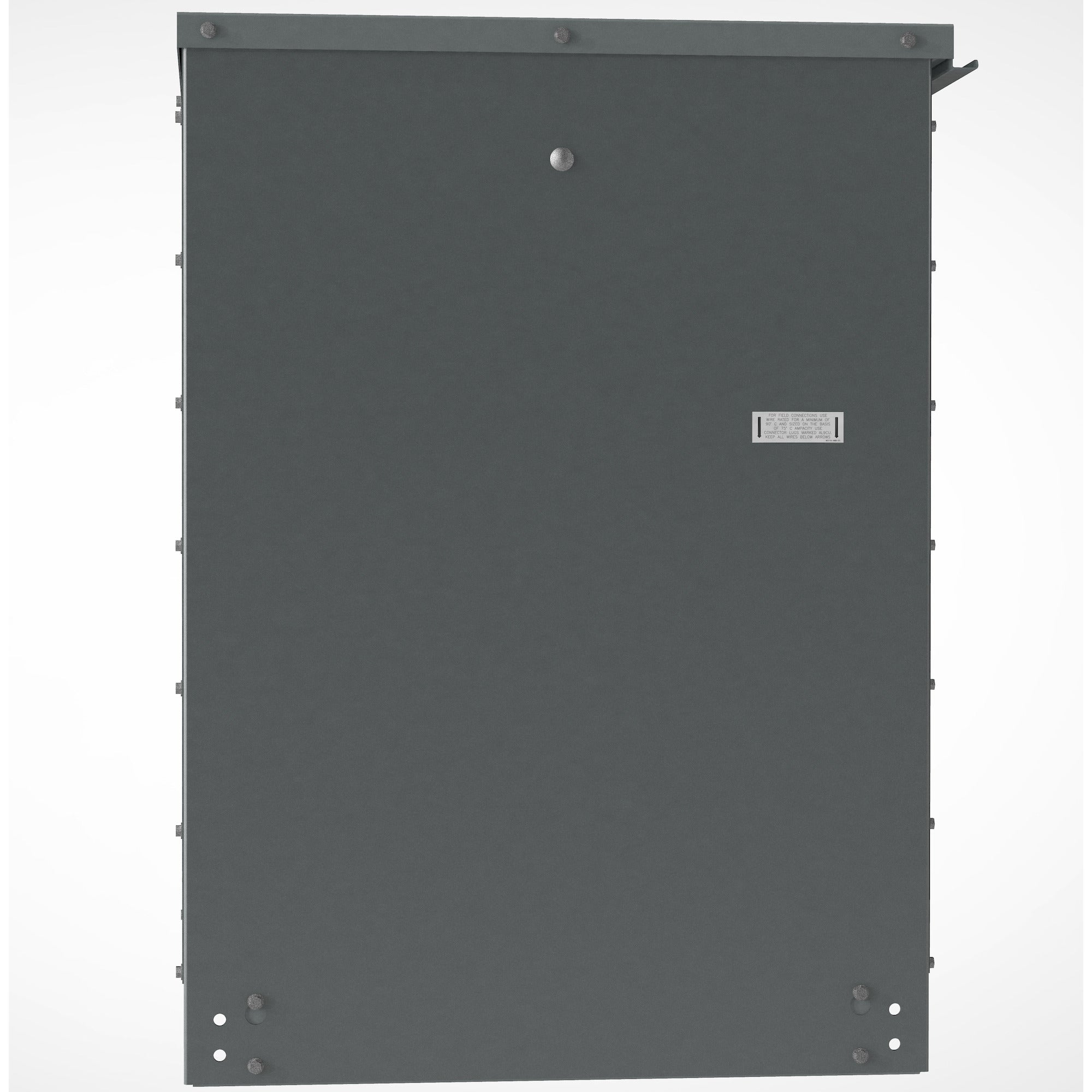

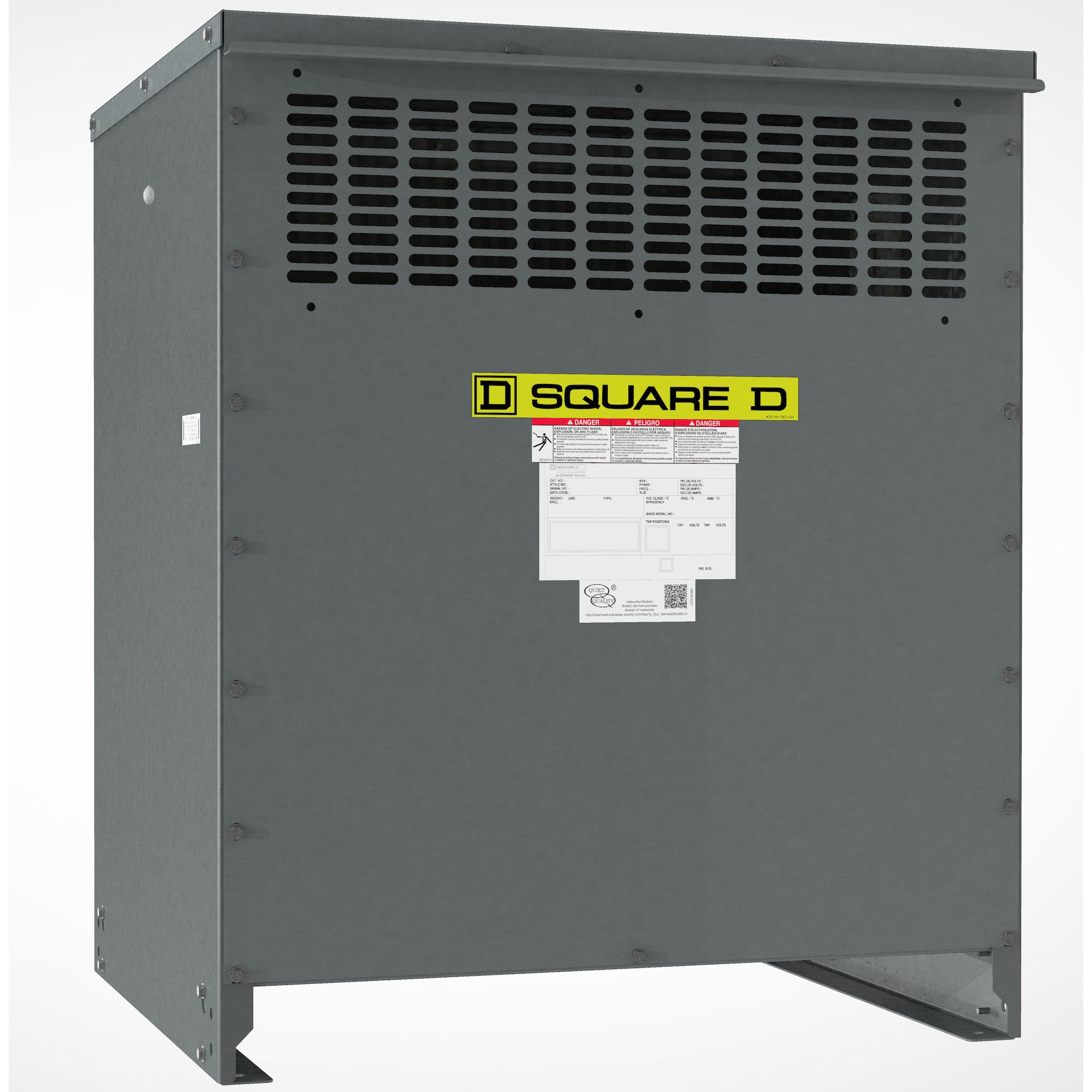

Square D EXN112T3H SQD Transformer 112.5kVA 3 Phase 480V Delta Primary 208Y/120V Secondary

Product Description

The Square D EXN112T3H is a three-phase low voltage dry type transformer designed for efficient power distribution. This 112.5 kilovolt-ampere transformer operates at a 480 Volt primary and provides a 208Y/120 Volt secondary output. It features aluminum windings and is built to comply with the Department of Energy's 2016 energy conservation standards.

• Meets DOE and NRCan efficiency standards with a minimum of 98.74% efficiency at 35% load.
• Designed for 150 degrees Celsius temperature rise with a durable 220 insulation system.
• Accommodates multiple wiring configurations for ease of installation.

Product Highlights

The EXN112T3H is ideal for various applications including commercial buildings, industrial facilities, and infrastructure projects where reliable and efficient power distribution is essential.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EXN112T3H
• Weight: 724.00 lb
• Dimensions: 28.5 inches (height) x 31.3 inches (width) x 28.4 inches (depth)
• Voltage: 480 Volt
• Material: Aluminum
• Efficiency: 98.80% at 35% Load Factor, 75.0°C
• Number of Phases: 3 Phase
• Country of Origin: United States
