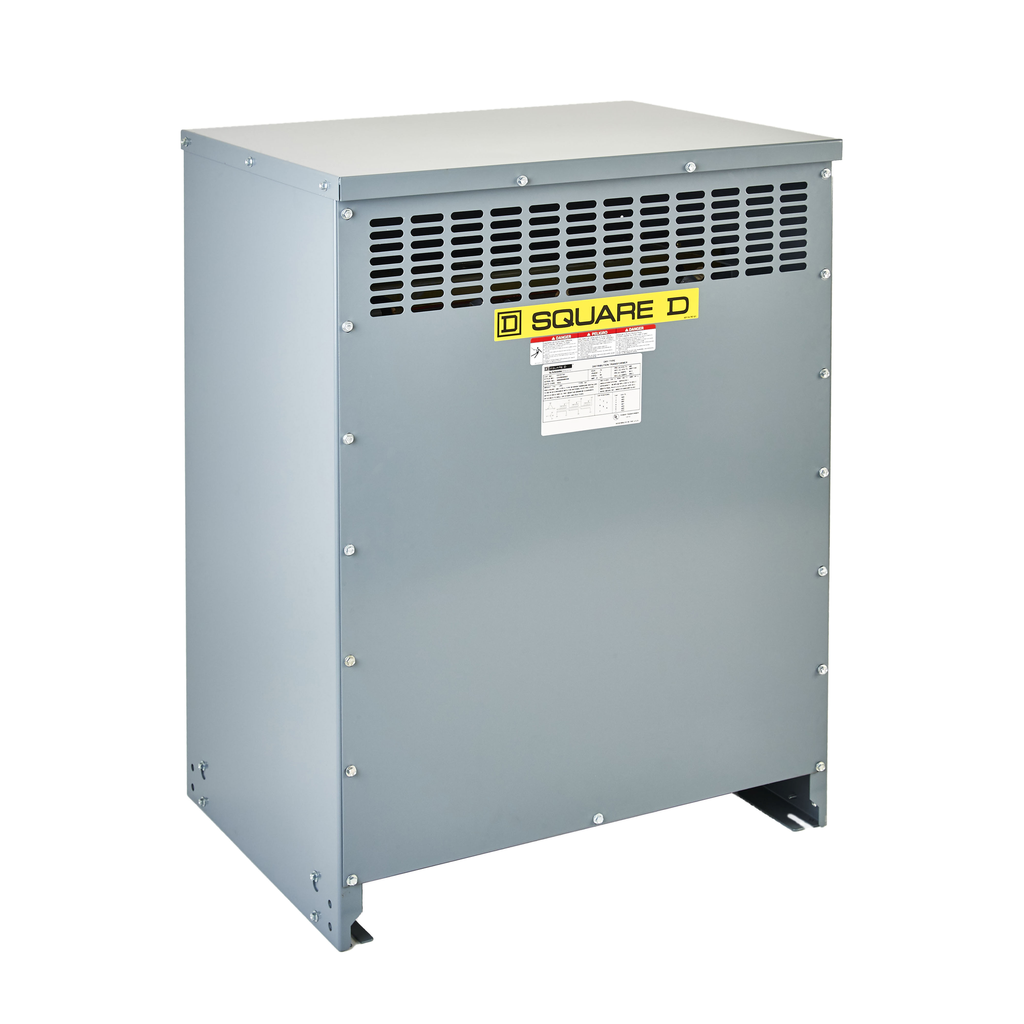

Square D EX45T3HFCU Transformer Dry Type 45kVA 480 Delta-208Y/120

Product Description

The Square D EX45T3HFCU Transformer Dry Type is a three-phase transformer. It operates at a kVA rating of forty-five and a frequency of sixty hertz. This transformer is designed for efficiency, exceeding the DOE 2016 standards. The transformer has primary voltage of four hundred eighty volts delta and secondary voltage of two hundred eight Y/one hundred twenty volts.

• Rated impedance withstand voltage of ten kilovolts.
• Natural convection cooling.
• Ambient temperature range of negative forty degrees to forty degrees Celsius.

Product Highlights

This transformer features a robust design suitable for various applications. It meets NEC bending radius requirements and provides a reliable connection layout.

Product Information

Standard Information

• Brand: Square D
• Catalog Number: EX45T3HFCU

Technical Specifications

• Voltage: Four hundred eighty volts
• Number of Phases: Three phase
• Efficiency: Ninety-eight point six percent at thirty-five percent load factor and seventy-five degrees Celsius
• Dimensions: Height sixteen point six inches, Width thirty-five point eight inches, Depth twenty-one point zero inches
• Weight: Two hundred twenty-four point five three kilograms
• Compliance: UL 1561, CSA C22.2 No 47, NEMA ST-20
