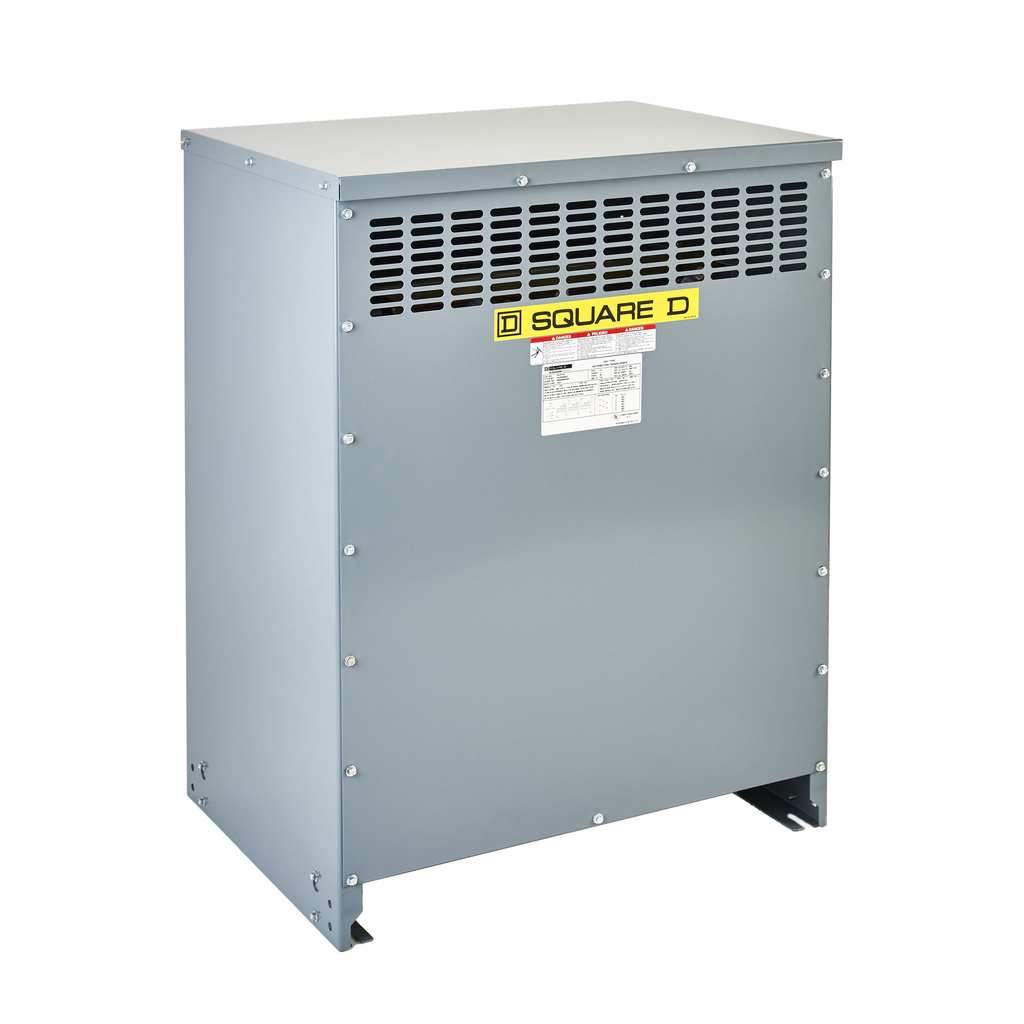

Square D EX45T3HCU SQD EX45T3HCU Transformer Dry Type

Product Description

The Square D EX45T3HCU is a three-phase transformer designed for efficiency and reliability. It is a DOE 2016 compliant unit that delivers high performance with a capacity of forty-five kVA. The primary voltage is four hundred eighty V delta, while the secondary voltage is two hundred eight Y/one hundred twenty V.

• High efficiency of 98.57% at a load factor of 35%
• Designed to meet NEC bending radius for easier connections
• Constructed with copper and rated for 150°C and 220°C insulation

Product Highlights

This transformer is suitable for applications where consistent power distribution is essential. Its terminals accommodate wire ranges for matching with Square D circuit breakers, ensuring compatibility and flexibility for installation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EX45T3HCU
• Primary Voltage: 480 V
• Secondary Voltage: 208Y/120 V
• Number of Phases: 3 Phase
• Efficiency: 98.57% at 35% Load Factor
• Temperature Rise: 150 °C / 220 °C Insulated
• Weight: 495.00 lb
• Dimensions: 35.2 inches (H) x 25.2 inches (W) x 21.0 inches (D)
• Country of Origin: Mexico
