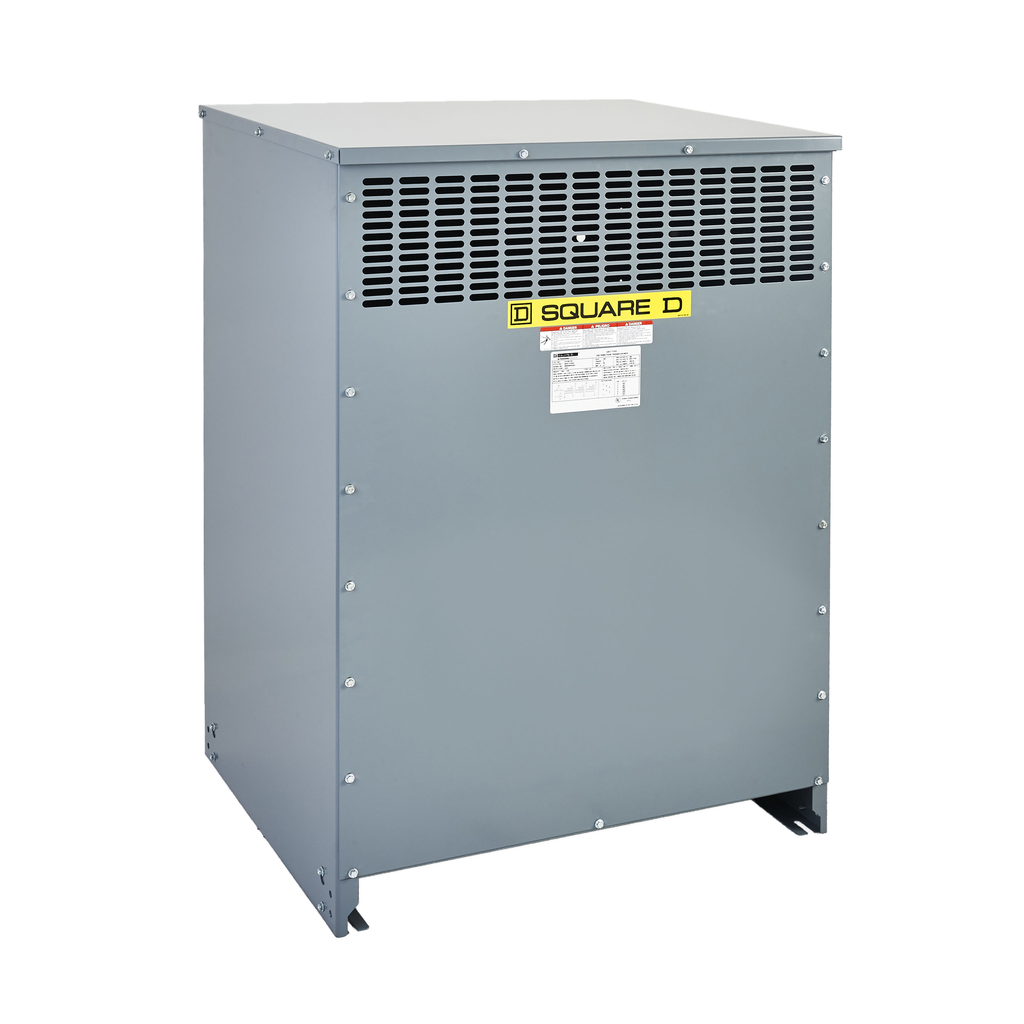

Square D EX112T3H 112.5 kVa 480 VAC Primary 208 Star/120 VAC Secondary Low Voltage Distribution Transformer

Product Description

Square D offers the EX112T3H transformer, designed for low voltage distribution. This 112.5 kVA transformer operates at a primary voltage of 480 VAC with a secondary voltage of 208Y/120 VAC. It is suited for various applications in power distribution.

• Three-phase transformer for efficient energy conversion.
• Cooled by natural convection, ensuring effective temperature control.
• High efficiency rating at 98.85% at a load factor of 35%.

Product Highlights

This energy-efficient transformer complies with DOE 2016 standards, making it suitable for modern electrical demands.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Model: EX112T3H
• Power Rating: 112.5 kVA
• Voltage Primary: 480 V
• Voltage Secondary: 208Y/120 V
• Phase: 3
• Efficiency: 98.85%
• Weight: 860.02 lb
• Dimensions: 1168 mm (W) x 610 mm (D) x 16.6% (H)
