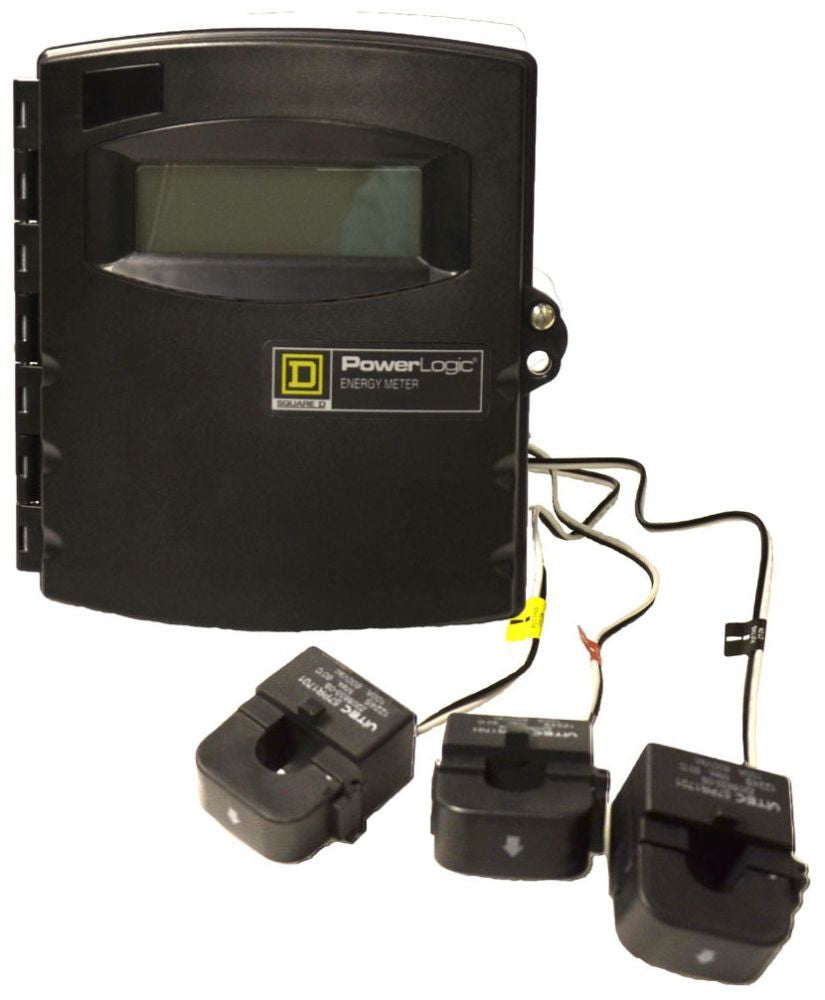

Square D EME3083 Energy Meter Ext Range 800A 2.45X2.89Id

Product Description

The Square D EME3083 is an energy meter with an extended range of eight hundred amperes. It accommodates a variety of operational needs with a compact size of seven point six inches wide, three inches deep, and eight point three inches tall.

• Works with both fifty and sixty hertz frequency ratings
• Features a clear LCD display with backlight
• Includes three current transformers for accurate measurements

Product Highlights

This energy meter measures energy, maximum power, reactive power, phase current, voltage, power factor, and real power with +/- one percent accuracy.

Product Information

Standard Information

• Manufacturer: Square D
• Brand: Square D Co.

Technical Specifications

• Catalog Number: EME3083
• Size: seven point six inches wide x three inches deep x eight point three inches high
• Operating Voltage: 120/240 to 480 V Star/277 V
• Frequency Rating: fifty/sixty hertz
• Operating Temperature: zero to fifty degrees Celsius
• Operating Current: eight hundred amperes
• Approval: UL, CUL
• Display Type: LCD with back green LED
• Communication Port Type: RS485 with Modbus RTU
