Square D EME3010 Square D EME3010 120/240 to 480 Star/277 VAC 100 Amp Accuracy Energy Meter

Product Description

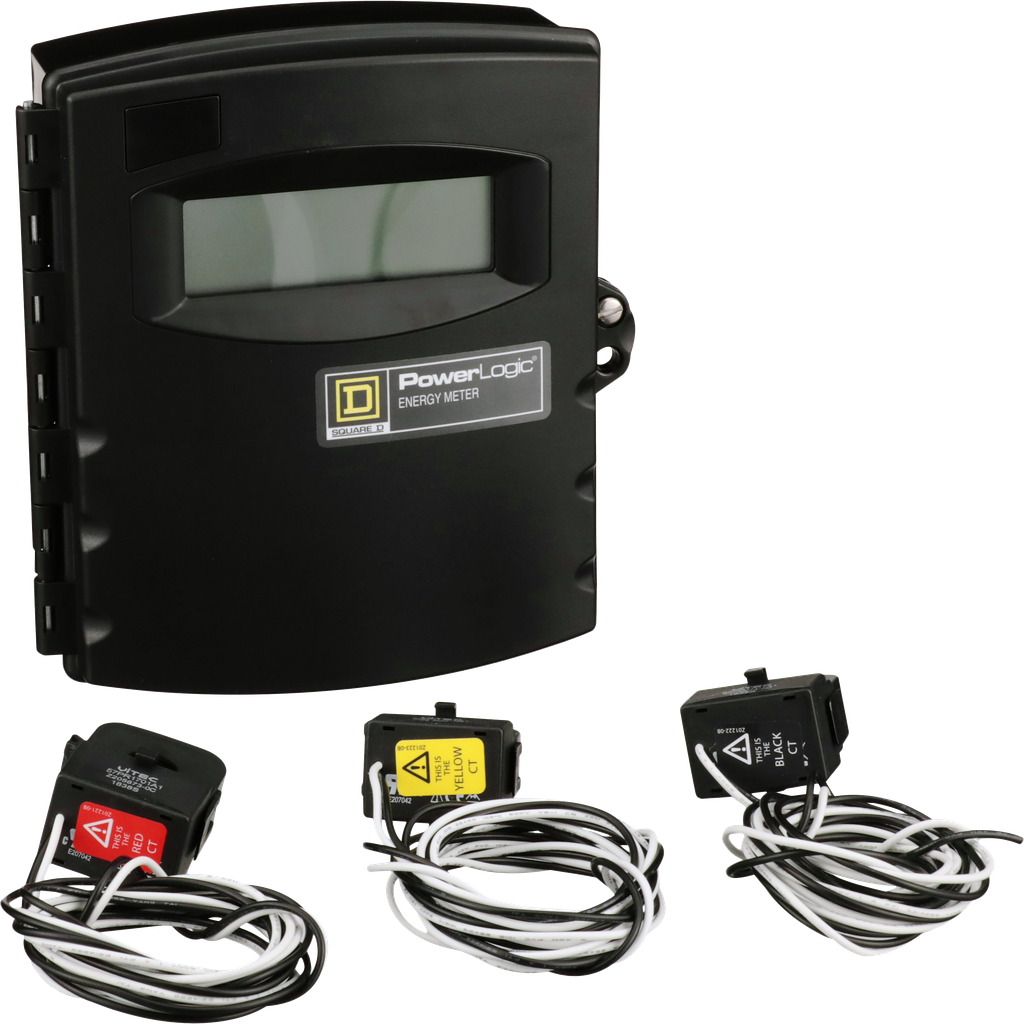

The Square D EME3010 is an energy meter designed for both stand-alone and systems-based submetering applications. This device measures various parameters including energy consumption, power, peak demand power, reactive power, power factor, voltage, and current. It has a rated supply voltage range from one hundred twenty to two hundred seventy-seven volts alternating current at fifty or sixty hertz. The meter features a backlit LCD display that measures one point two by three point eight inches, with one pulse output and one alarm output.

• Operating temperature range is from negative zero to positive fifty degrees Celsius
• Humidity rating is zero to ninety-five percent
• Meets ANSI C12.1, UL, and cUL certifications

Product Highlights

This energy meter is suitable for energy monitoring in commercial and industrial settings. Proper functionality ensures accurate tracking of energy usage, helping to manage energy costs effectively.

Product Information

Standard Information

• Catalog Number: EME3010
• Manufacturer: Schneider Electric

Technical Specifications

• Height: 211 mm
• Width: 193 mm
• Depth: 76 mm
• Weight: 1.27 kg
• Voltage Range: 120...277 Volt AC
• Rated Current: 100 Amp
• Display Type: Backlit LCD
• Warranty Length: 18 months
• Country of Origin: USA
