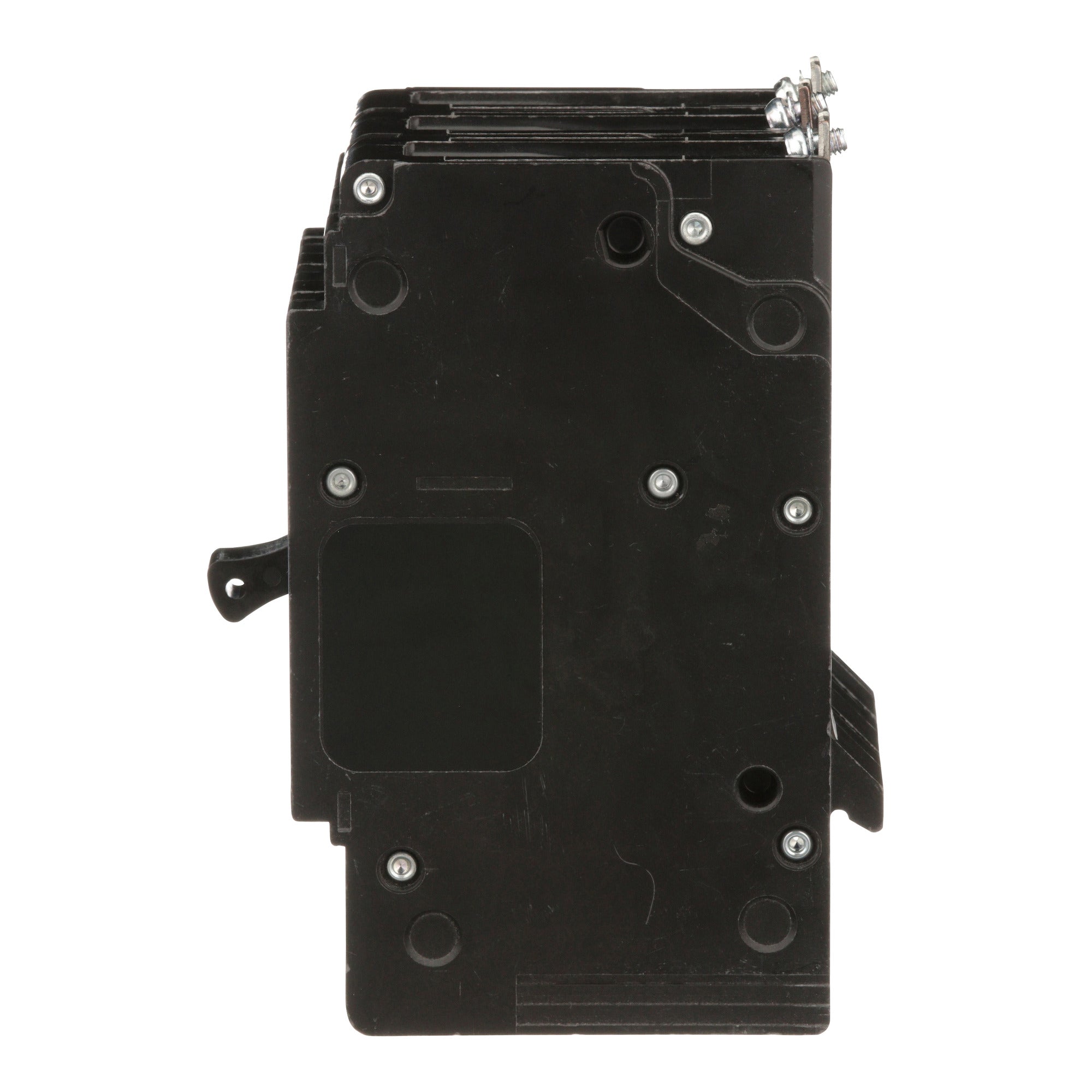

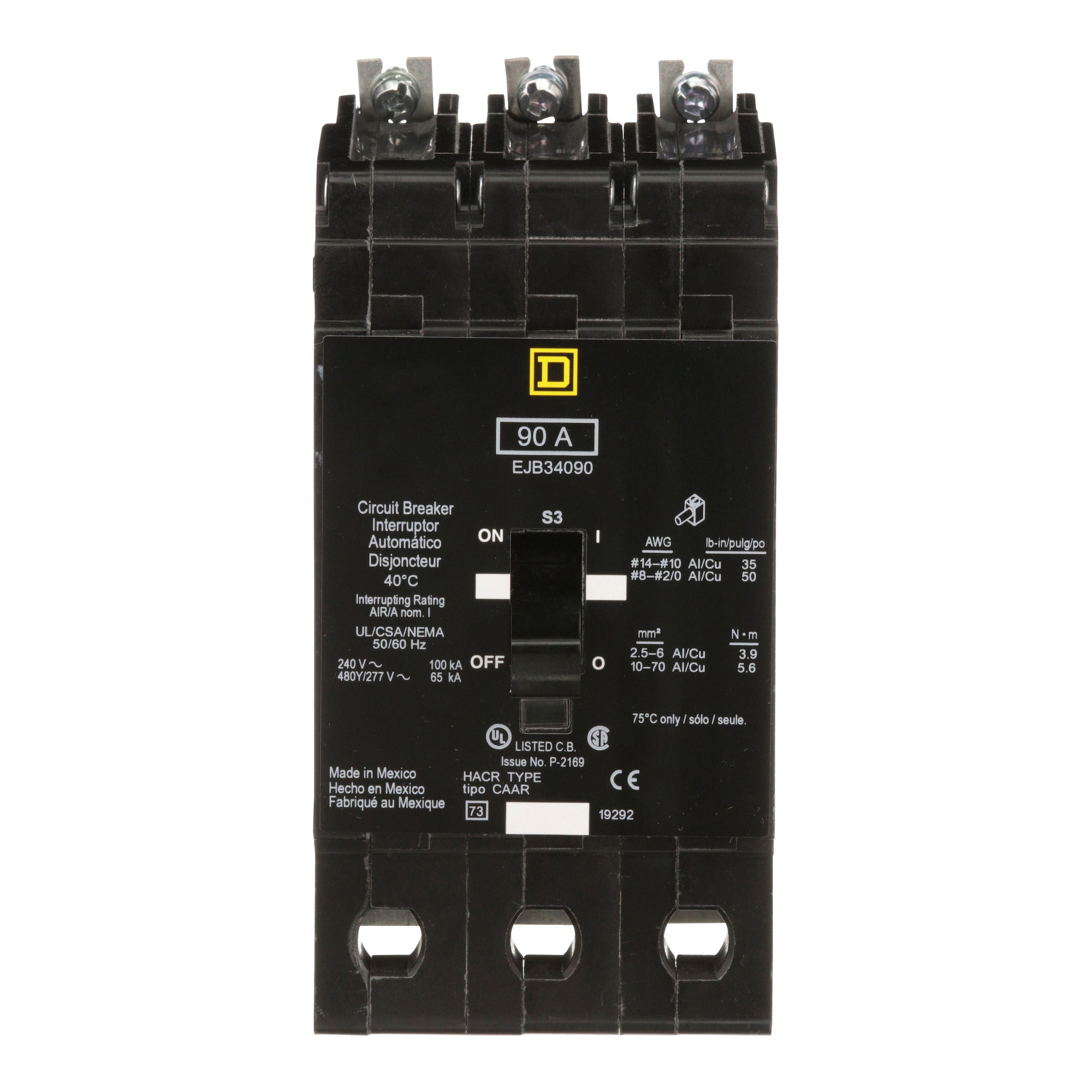

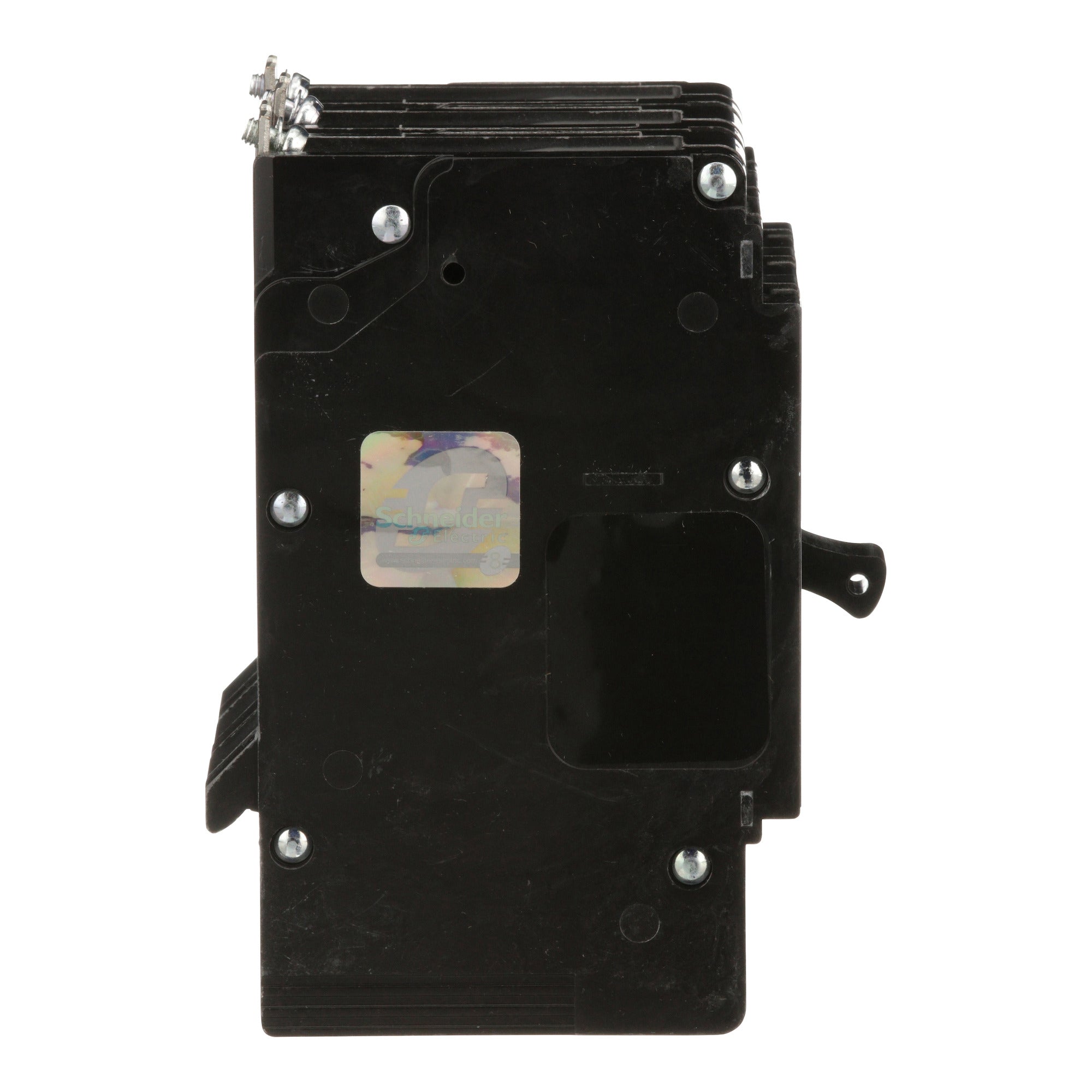

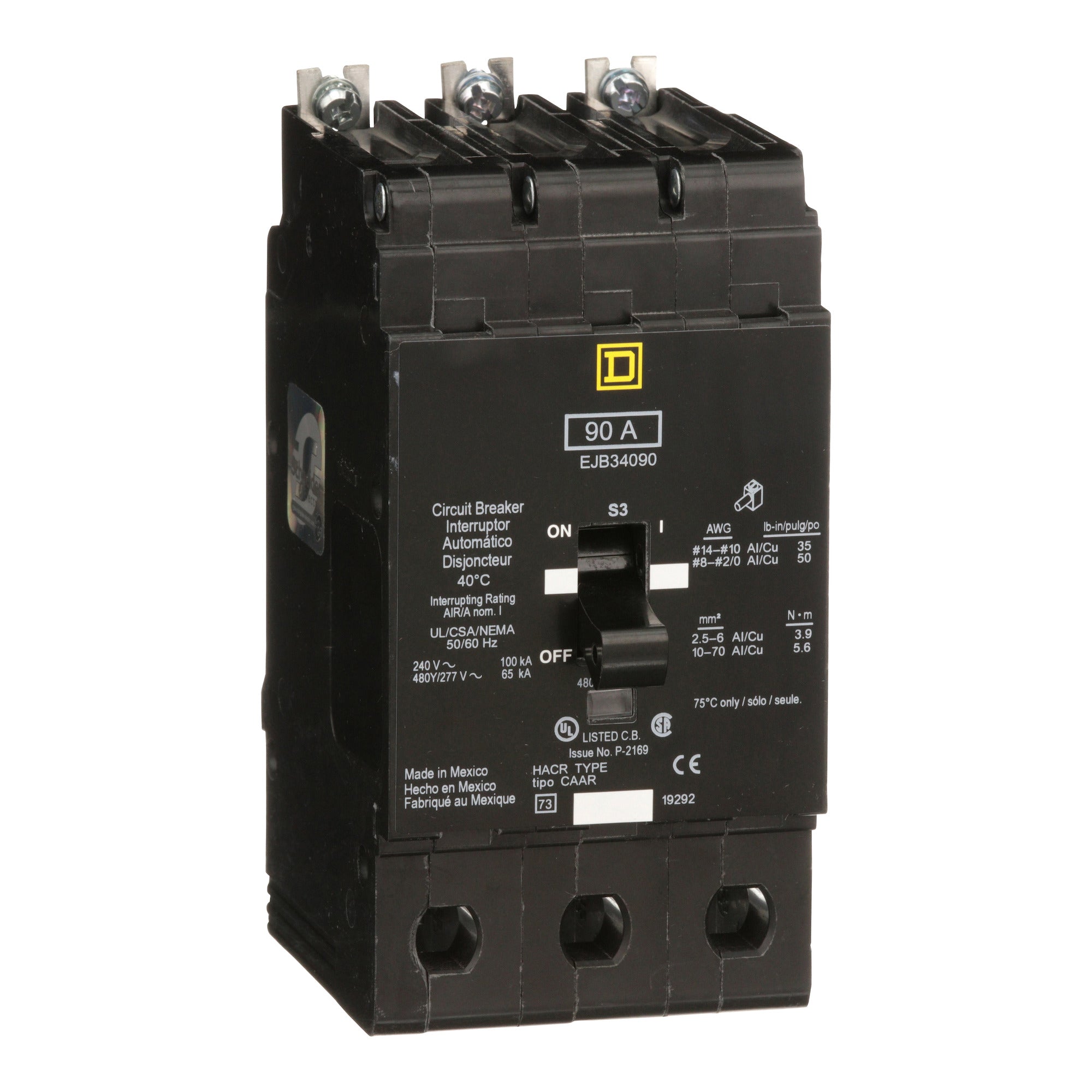

Square D EJB34090 Miniature Circuit Breaker 90 Amp 480Y/277VAC

Product Description

The Square D EJB34090 is a miniature circuit breaker designed for lighting panelboards. This device is part of the E-frame line of breakers, ensuring effective performance and reliability. It features a thermal-magnetic trip unit to enhance overload protection while signaling when a trip occurs.

• 90 Amp, 3-pole, with a voltage rating of 480Y/277 VAC
• Maximum interrupt rating of 100 kA
• Calibrated for an operating temperature of forty degrees Celsius

Product Highlights

This breaker provides reliable protection against overload and short circuits, making it suitable for various applications in commercial and industrial settings.

Product Information

Standard Information

• Catalog Number: EJB34090
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Weight: 4 lb
• Depth: 4.05 inches
• Width: 2.94 inches
• Height: 5.66 inches
• Voltage: 277/480 VAC
• Amperage: 90 Amp
• Trip Type: Thermal-magnetic
• Trip Range: 2300 A
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Warranty Length: 18 months
