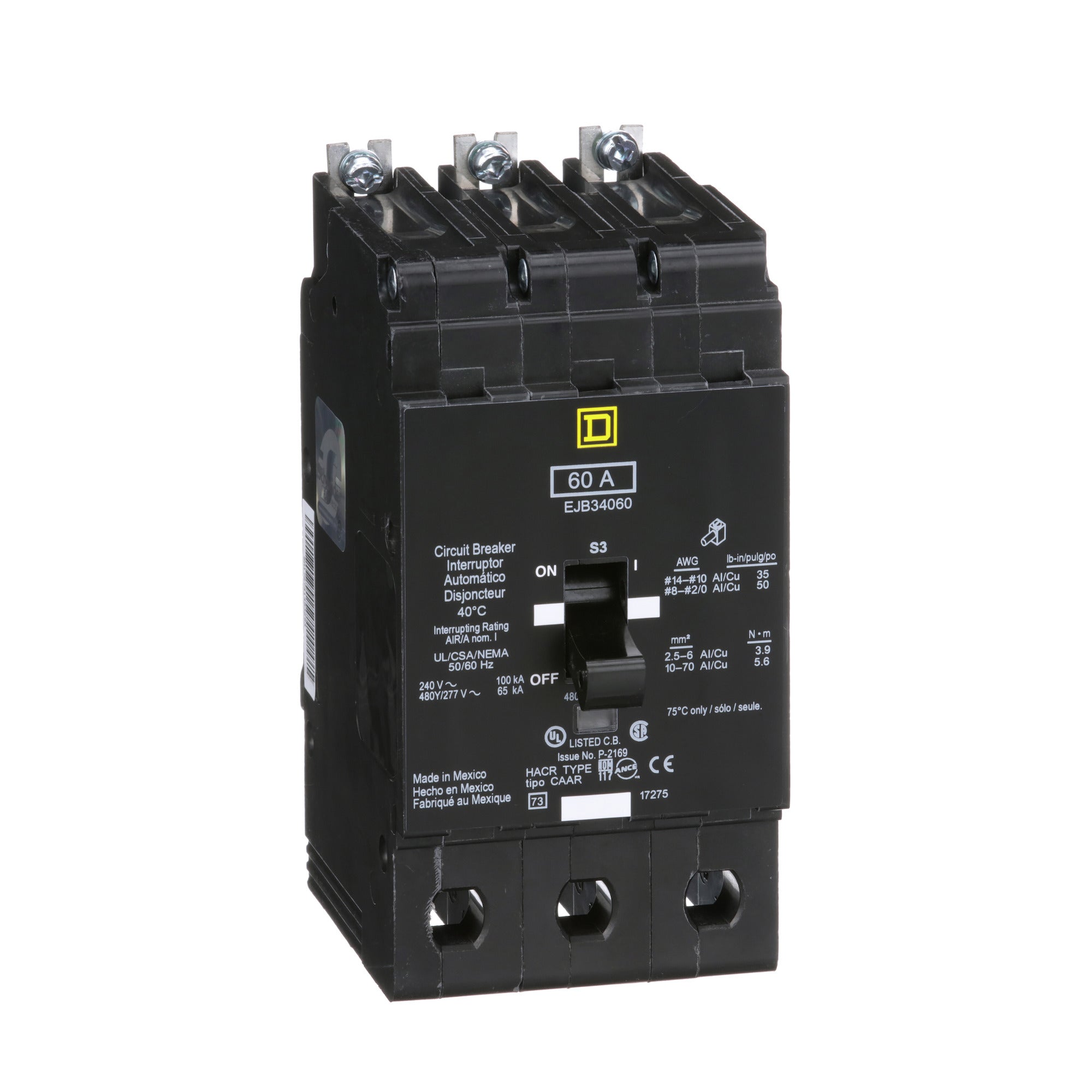

Square D EJB34060 Mini Circuit Breaker 60 Amp 480Y/277 Volt

Product Description

The Square D EJB34060 is a miniature circuit breaker designed for lighting panelboards. It is efficient and reliable, specifically made for Square D NF panelboards. This breaker provides effective overload and short circuit protection. It is HACR rated, meaning it can handle heating, air conditioning, and refrigeration loads.

• Rated at sixty amps with a voltage of four hundred eighty Y / two hundred seventy-seven VAC.
• Three-pole bolt-on design, suitable for various applications.
• Thermal-magnetic trip unit with a trip signal indicator.

Product Highlights

This breaker features a maximum interrupt rating of one hundred kA at one hundred twenty VAC. The breaker maintains a hold current of six hundred thirty amps and a trip current of one thousand eight hundred amps. The dimensions are five point sixty-six inches in height, two point ninety-four inches in width, and four point zero five inches in depth.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EJB34060
• Voltage: 277/480 VAC
• Amperage: 60 Amp
• Trip Type: Thermal-magnetic
• Number of Poles: 3 Pole
• Interrupt Rating: 65 kAIC
• Height: 5.66 inches
• Width: 2.94 inches
• Depth: 4.05 inches
