Product Description

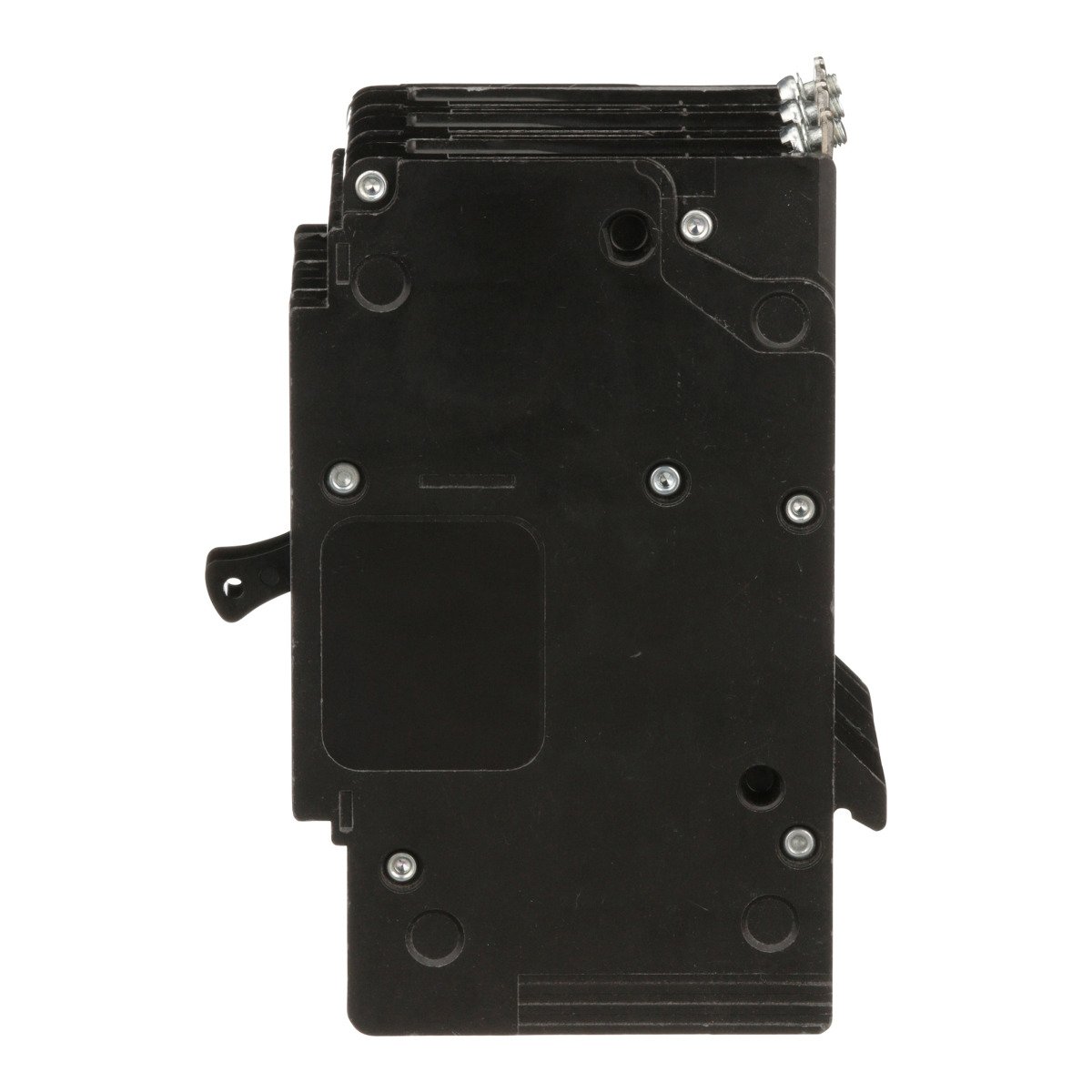

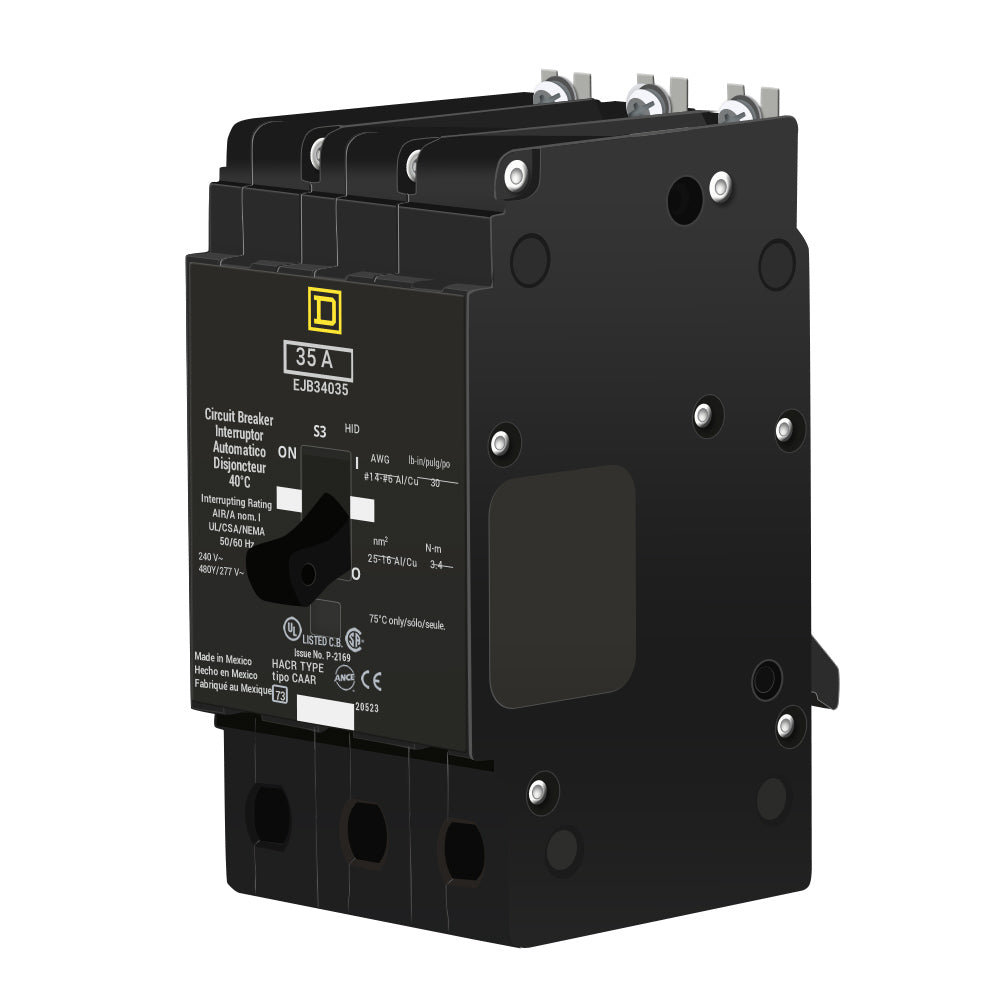

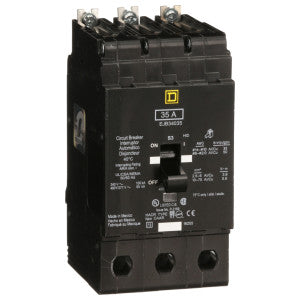

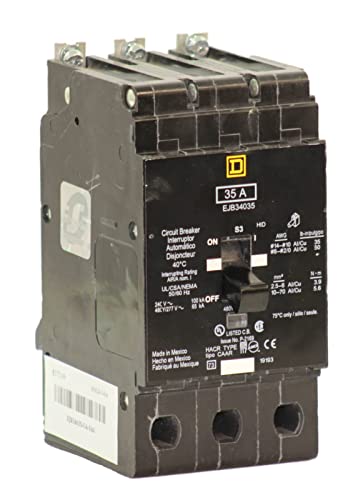

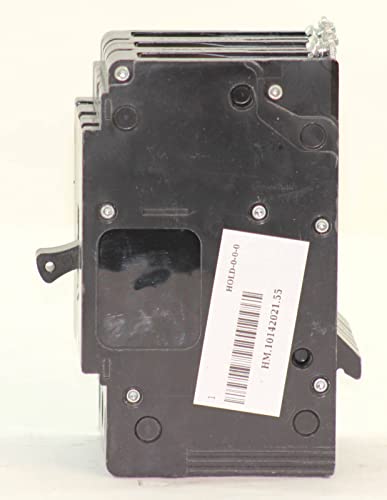

The Square D EJB34035 is a 3-pole, 35 Amp miniature circuit breaker designed for Square D NF Panelboards. This E-Frame breaker provides overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator. The breaker is UL Listed as High Intensity Discharge and HACR rated, calibrated for 40 degrees C.
- Thermal-magnetic trip unit
- Signal indicator
- Superior overload and short circuit protection
Product Highlights
Provides reliable overcurrent protection for industrial facilities and branch circuit applications. Mounts into Square D NF panelboards with bolt-on configuration.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: EJB34035
-
Country of Origin: Mexico
Technical Specifications
-
GTiN: 00785901130611
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Depth: 4.05 Inch
-
Frame: E-FRAME
-
Width: 2.94 in
-
Height: 5.66 Inch
-
Length: 4.05 Inch
-
Voltage: 277/480 VAC
-
Amperage: 35 Amp
-
Sub Brand: EJB
-
Trip Type: Thermal-magnetic
-
Net Weight: 4 lb
-
Trip Range: 1800 A
-
Module Type: E-Frame
-
Product UPC: 78590113061
-
12-Digit UPC: 785901130611
-
Applications: HID rated;HACR rated
-
Mounting Type: Bolt-On
-
TC Connection: AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM
-
Certifications: CULus
-
Number of Poles: 3 Pole
-
Interrupt Rating: 65, 100 kAIC
-
Number of Spaces: 3
-
Country of Origin: Mexico
-
Line Rated Current: 35 A
-
Catalog Number: EJB34035
-
Manufacturer: Schneider Electric
-
UPC: 785901130611
-
Poles: 3
-
Hold Current: 630A
-
Trip Current: 1800A
-
Calibration Temperature: 40 degrees C
-
Listing: UL Listed as High Intensity Discharge
-
HACR rated: Yes
-
Frame Type: E
-
Tripping Method: Thermal Magnetic
-
Terminal Wire Size: 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper)
-
Voltage Rating: 120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
-
Current Rating: 35 Ampere
-
Interrupting Rating: 100 Kiloampere at 120/240 VAC, 65 Kiloampere at 480 VAC Star/277 VAC or 277 VAC (UL/CSA)
-
Trip Setting: 630 to 1800 Ampere
-
Installation: Bolt-On
-
Application: Lighting
-
Used On: Class 515 NF Series Panelboard
-
Approval: UL, CSA, NOM 117
-
Series: EJB
-
Phase: 3
-
AIC Rating: 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Lugs
-
For Use With: Square D NF Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-2/0 AWG (Cu), 12-2/0 AWG (Al)
-
Max Wire: 2/0 AWG
-
Min Wire: 14 AWG (Cu) / 12 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Standard Aluminum Lugs
-
Standards: CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489
-
Temp Rating: 40C
-
Construction Features: HACR Rated, HID Rated, Visual Trip Indicator
-
Family: EJB Series
-
Amp: 35
-
Volt: 480
-
Category: Molded Case / 3-Pole
-
Connection: Bolt-On
-
Functions: LI - Long-Time and Instantaneous
-
Protection: Thermal Magnetic
-
AIC Ratings: 65kA@480V | 65kA@277V | 100kA@240V | 100kA@120V
-
Dimensions (HxWxD): 5.66" x 2.94" x 4.05"
-
Protection Type: Short-Circuit / Overload
-
Maximum Operating Voltage: 480Y/277 V AC
-
Mounting Mode: Bolt-On
-
Product Destination: Square D NF Panelboard
-
Electrical Connection: Aluminum Lugs
-
Holding Current: 270 Amp
-
Local Signaling: Trip Indicator
-
Circuit Breaker Application: HID-Rated / HACR-Rated
-
AWG Gauge: AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
-
ECCN: EAR99
-
UNSPSC: 39121603
-
AWG Range: AWG 12...AWG 2/0
-
Rated Voltage: 480Y/277V ac
-
Torque: 3.9-3.9 N.m
