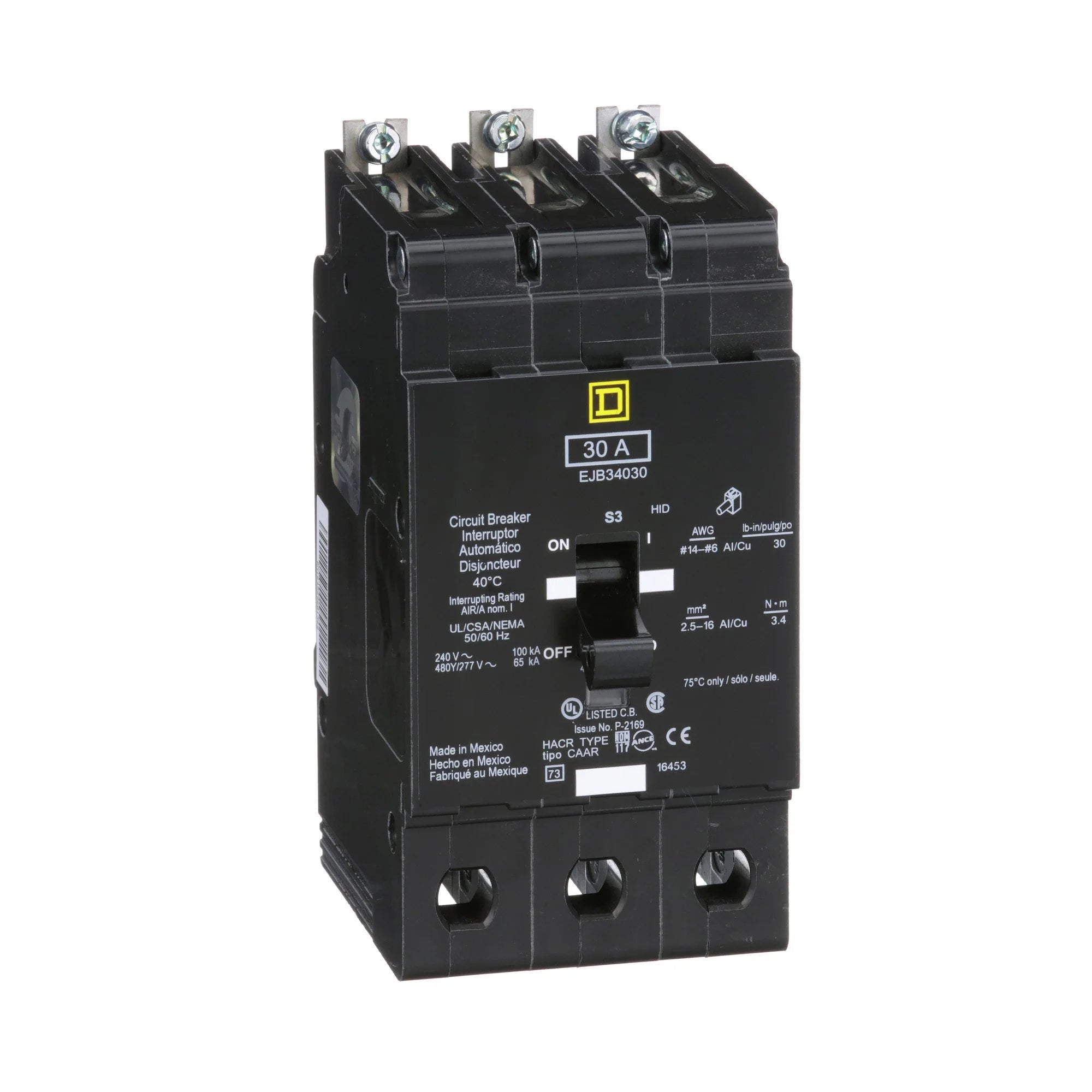

Square D EJB34030 Miniature Circuit Breaker 480Y/277 Volt 30 Amp

Product Description

The Square D EJB34030 is a miniature circuit breaker with a voltage rating of 480Y/277 VAC and a current rating of 30 Amps. This product is designed for use in Square D NF Panelboards. It features a thermal-magnetic trip unit, providing reliable overload and short circuit protection. The breaker is UL Listed and includes a signal indicator for trip status. It is suitable for high-intensity discharge applications and is HACR rated, making it ideal for various commercial and industrial setups.

• 3 pole, 30 Amp rating at 480Y/277 VAC
• Thermal-magnetic trip unit with trip indicator
• Rated for high-intensity discharge applications

Product Highlights

This E-Frame breaker has a breaking capacity of 65 kA at 480Y/277 VAC, ensuring safety and effectiveness in operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EJB34030
• Voltage: 277/480 VAC
• Amperage: 30 Amp
• Number of Poles: 3 Pole
• Trip Type: Thermal-magnetic
• Interrupt Rating: 65 kAIC
• Weight: 4 lb
• Dimensions: 5.66 in height, 2.94 in width, 4.05 in depth
• Mounting Type: Bolt-On
